NLK-5MP02
Category：-5MP AF&Fixed lens
Product specifications：
Adopt high-quality lens without distortion
High quality and inexpensive
True color and Low Lux
support IR-LED and IR-Cut
Low power: DC5V/20MA±10%
Support Real WDR and backlight compensation
Support NTSC and PAL
<...
5MP USB camera board, IMX335 5MP WDR, WDR wide angle webcam
Details
IMX335 Industrial level LOW LUX Real WDR SECURITY WEBCAM 5MP USB camera board

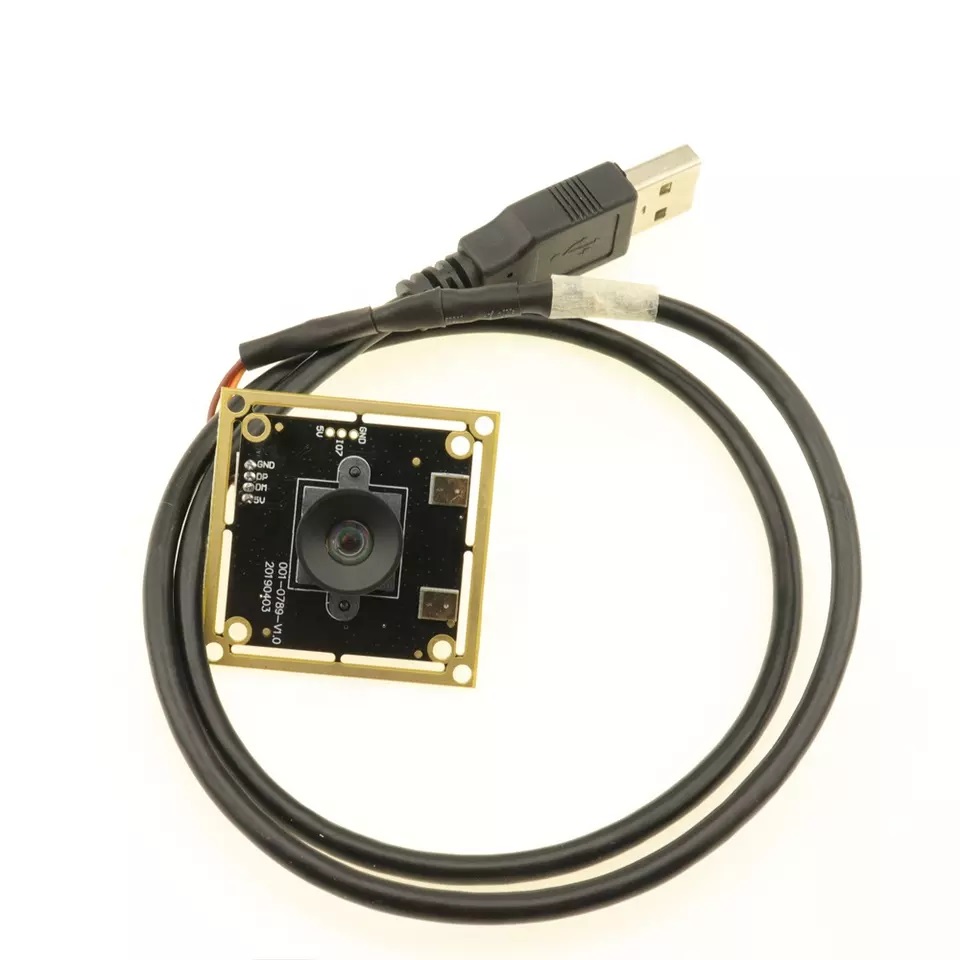

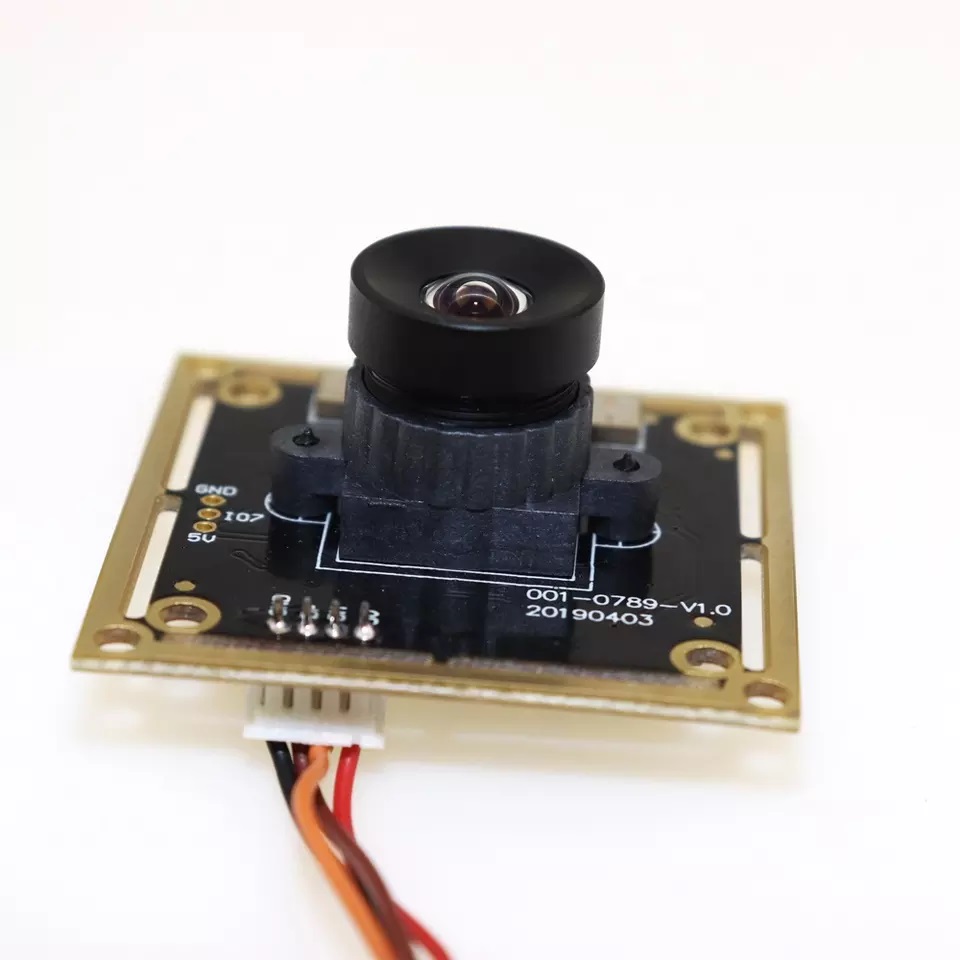

5MP USB camera board
NLK5MP02 5MP USB camera board with SONY industrial level IMX335 as sensor, 1/2.8inch CMOS, real WDR. Apply for difference equipment which need high image quality
Features:
l Adopt Sony IMX335 1/2.8inch color sensor , 5MP pixel;
l Adopt high-quality lens without distortion;
l True color and Low Lux;
l Color, support IR-LED and IR-Cut;
l Low power: DC5V/20MA±10%;
l Real WDR and backlight compensation, Support NTSC and PAL
Electric Parameters
| Item | Name | Units | Descriptions |
| 1 | Image Sensor | 1/2.8inch Color CMOS sensor | |
| 2 | Effective pixel | PIXELS | 2592(H)×1944(V) |
| 3 | Video format | PAL/NTSC(optional) | |
| 4 | Horizontal resolution | 5MP | |
| 5 | Output image format | MJPEG / YUV2(YUYV) | |
| 6 | S/N ratio | dB | >39dB (AGC off) |
| 7 | Min. Lux | LUX | 0.001Lux |
| 8 | Electric shutter speed | S | Electronic rolling shutter / Frame exposure |
| 9 | Sensitivity | 2.0V/lux-sec@550nm | |
| 10 | Pixel and Fps | 640X480@ 30fps /800X600@30fps /1024X768@30fps/1280X960@20fps/1600X1200@ 20fps /2048X1536@ 20fps/2592X1944@15fps | |
| 11 | Interface Type: | USB2.0 High Speed/USB2.0 OTG | |
| 12 | Driver free | USB Video Class(UVC) | |
| 13 | Support image process | Support AGC/ AEB/ AEC,Brightness,Contrast, Tint, Color, Sharpness,Gamma, Backlight compensation, Exposure | |
| 14 | Digital Audio | High quality MIC | |
| 15 | Size | MM | 38mm x 38mm about 40g |
| 16 | Storage temperature | ℃ | -20~85℃ |
| 17 | Working Temperature | ℃ | -10 ~ +70℃ |
| 18 | HDR range | Up to 72db | |
| 19 | Power supply | USB BUS POWER 4P-2.0mm connector | |
| 20 | Working voltage | DC5V | |
| 21 | USB cable | 0.6M/1M/3M optional | |
| 22 | Support system | Win7 Win8 and Android | |
| 23 | Working current | 140mA~200mA |
