NLK-5MP01
Category：-5MP AF&Fixed lens
Product specifications：
5Megapixel Autofous USB Webcam
Support 2592x1944 high HD resolution
Auto explsure
Auto white balance
Super small outline
Thin profile for embedded
Compact industrial camera solution
Support Android/Linux/Mac/Windows PC with USB ports
Ov5640 Camera Module, Auto Focus Webcam Board,5mp Uvc Usb Camera Module
Details
OEM 5MP 2592X1944 USB 2.0 Auto Focus OV5640 Webcam Camera Module

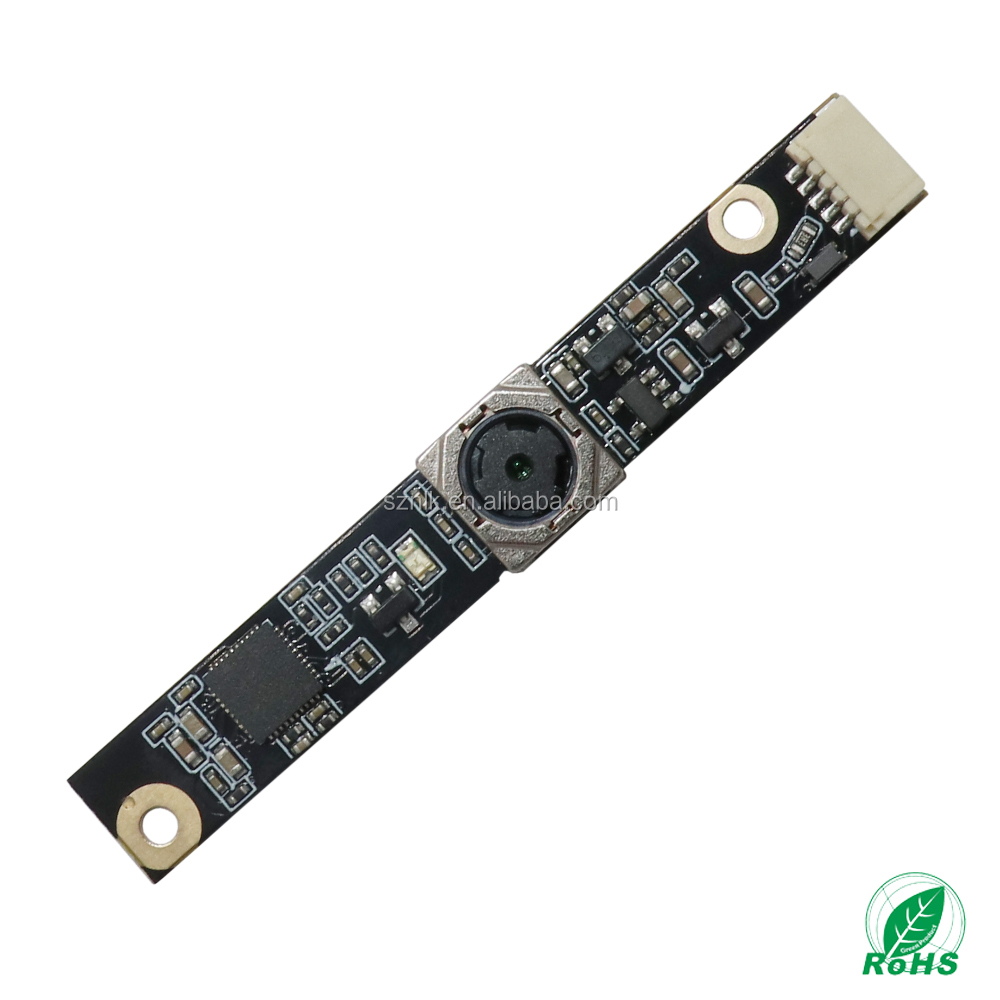

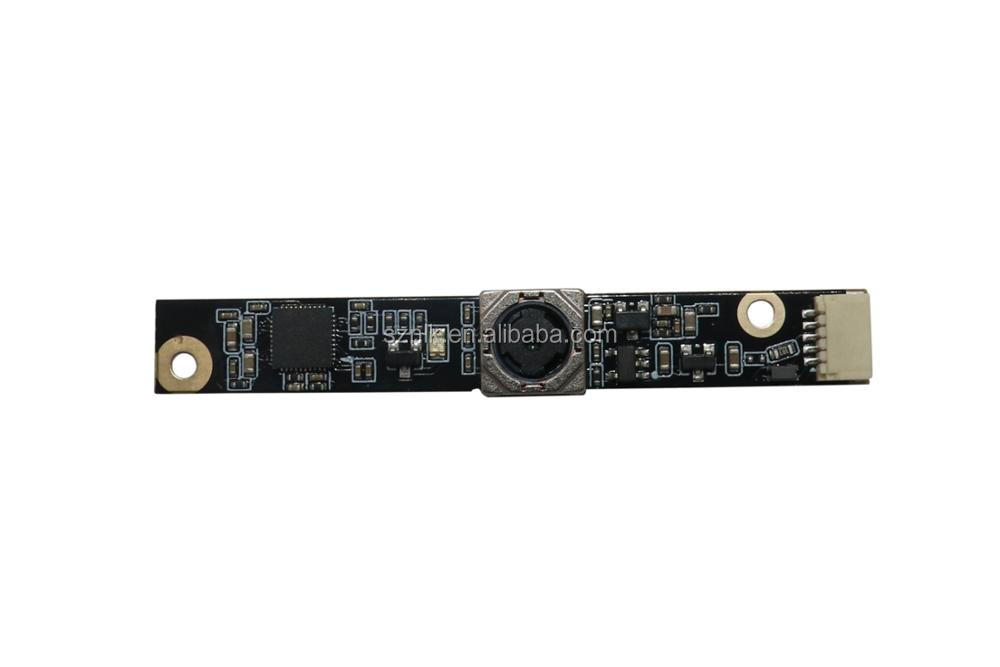

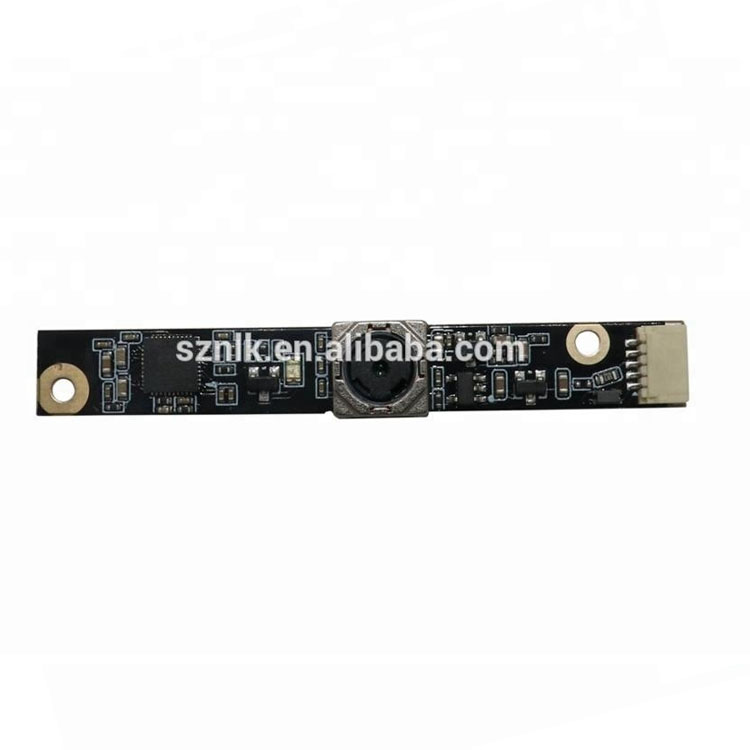

OV5640 camera module
NLK-5MP01 USB Webcam board camera is made by OV5640, it's mostly apply for high quality laptop PC, Industrial PC, Medical PC, Bar code Scanner and Vending machine. Also apply for Security especially for ATM Machines, Kiosk and etc. It's easy to plug and play with UVC and widely used in windows XP/7/8/10 and Android and Linux system.
Features
60/90/120 degree wide angle view autofocus megapixel lens usb camera
5Megapixel Autofous USB Webcam up to 2592x1944 high HD resolution
Auto explsure and auto white balance
Super small outline and thin profile for embedded
compact industrial camera solution for any Android/Linux/Mac/Windows PC with USB ports
Electric Parameters
|
Parameter |
SPEC. |
|
|
Optical size Sensor |
1/4 inch COMS sensor |
|
|
Sensor Resolution |
2592 (H) x 1944 (V),QSXGA |
|
|
Unit pixel size |
1.4um |
|
|
Color filter |
RGB Bayer pattem |
|
|
Shutter type |
Electronic Rolling Shutter |
|
|
Max.capture frame rate |
15fps@full resolution, 15fps@1080P, |
|
|
Max. video frame rate |
60fps@VGA,25fps@720p |
|
|
View Angle |
62° |
|
|
F Number |
2.8 |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
Auto focus 10CM - ∝/ fixed lens 5CM-∝ |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|

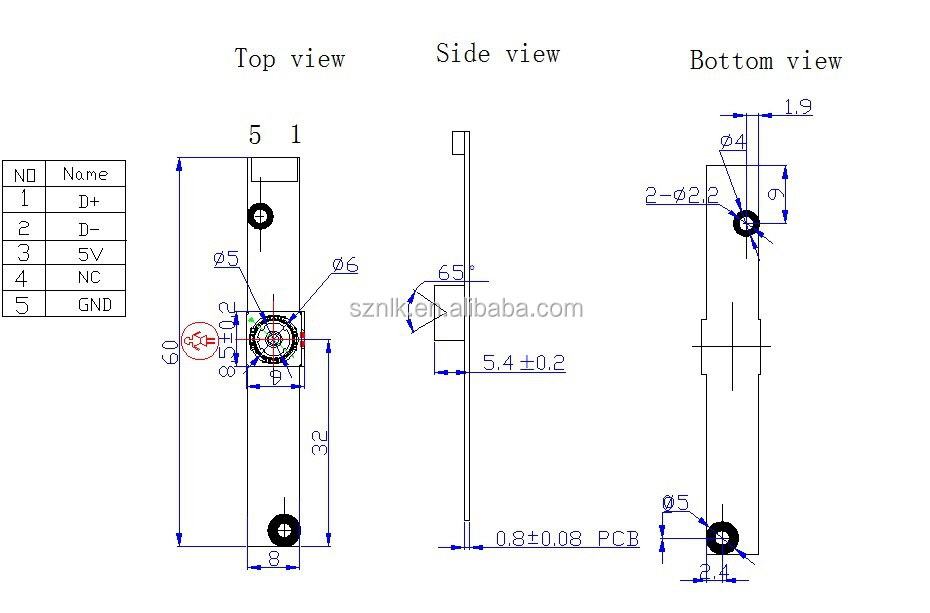

Dimensions (mm) (L x W x H) |
60mm x 9mm x 5.2 +/-0.2mm |
|
|
Operating Temperature |
0℃to +50°C |
|
|
Operating System Request |
Windows XP,Windows 7,Windows 8 |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Suspend |
90mA+/-5mA |
|
Operating |
150mA+/-30mA @ 640x480 |
|
