NLK-2MP08P
Category：-2MP USB WDR camera module
Product specifications：
· Built-in ISP processing
· USB2.0 Interface,USB Video Class(UVC)
· Data fromat : YUY2 / MJPG
· Auto Exposure (AE). Auto White Balance(AWB)
· Auto Flicker Correction. Color Correction.
· Gamma Correction.
· Dark Level Compensation.
· Auto Edge enhancement.
· Software controlled connectio...
Cheap USB Camera, WDR Camera Module,DYNAMIC USB Camera
Details

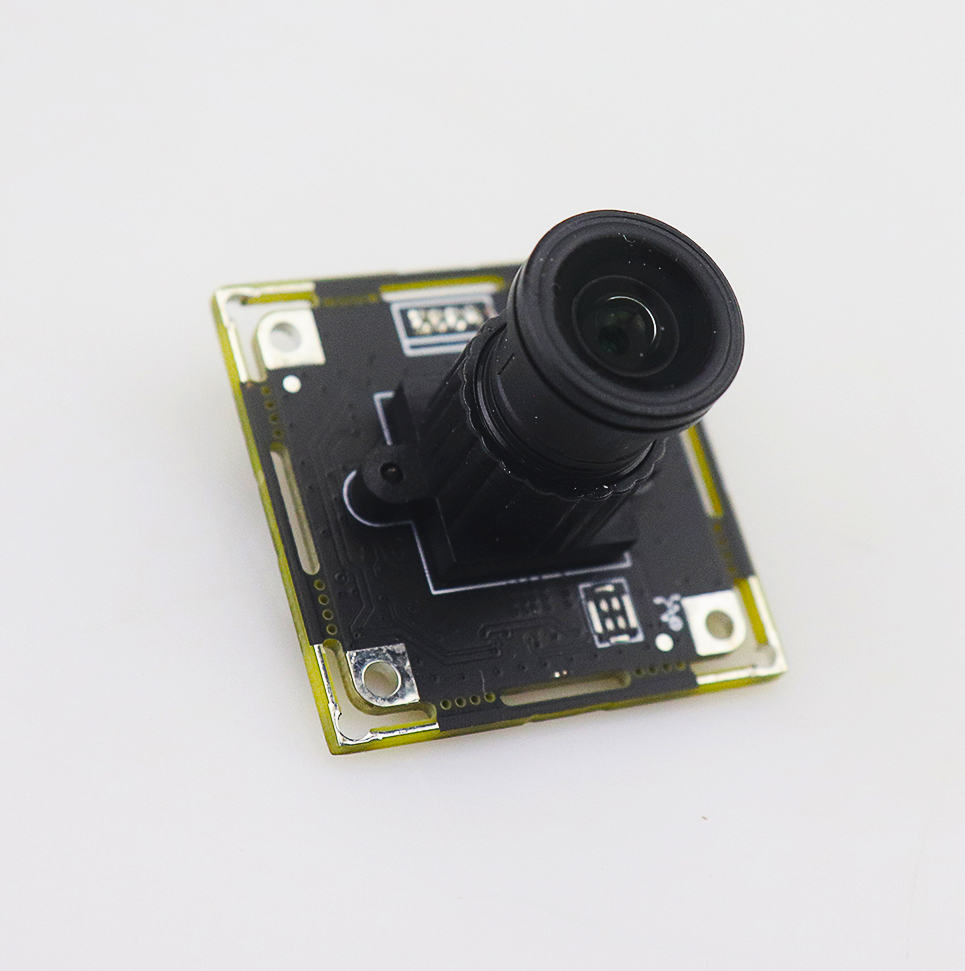

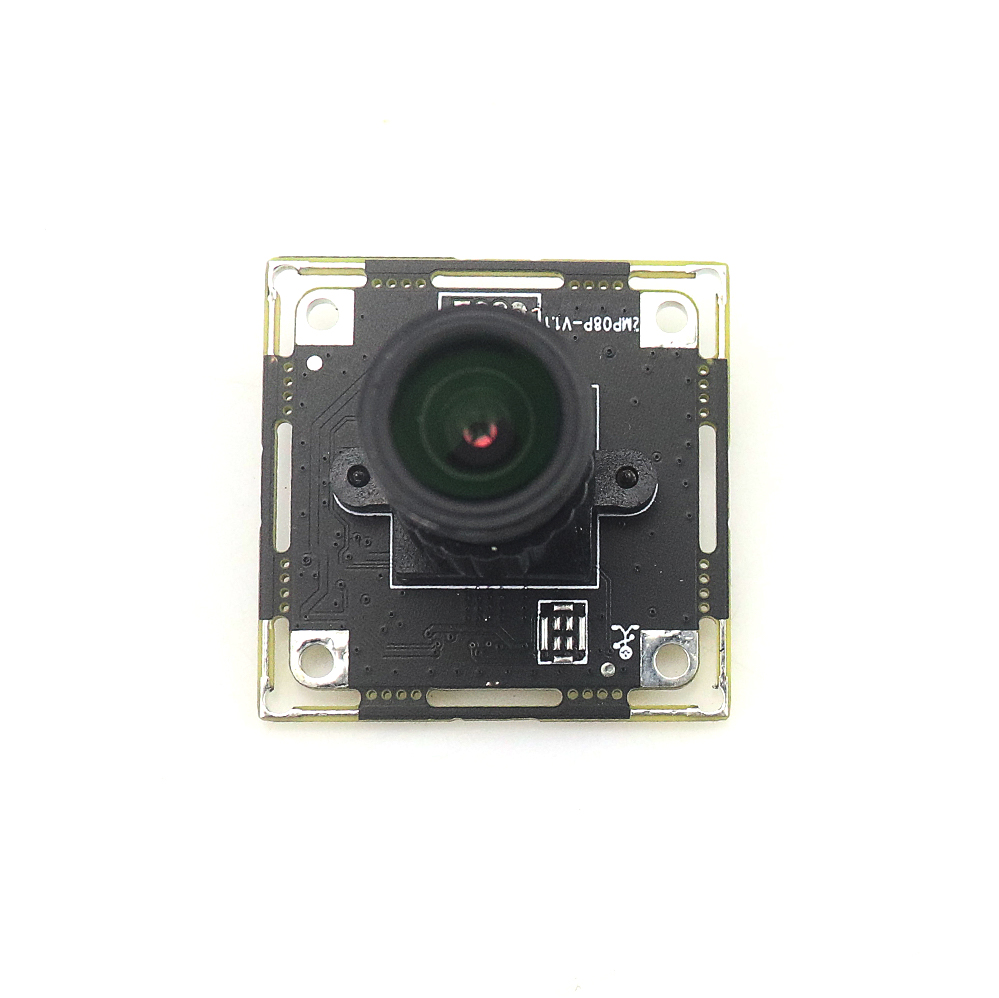

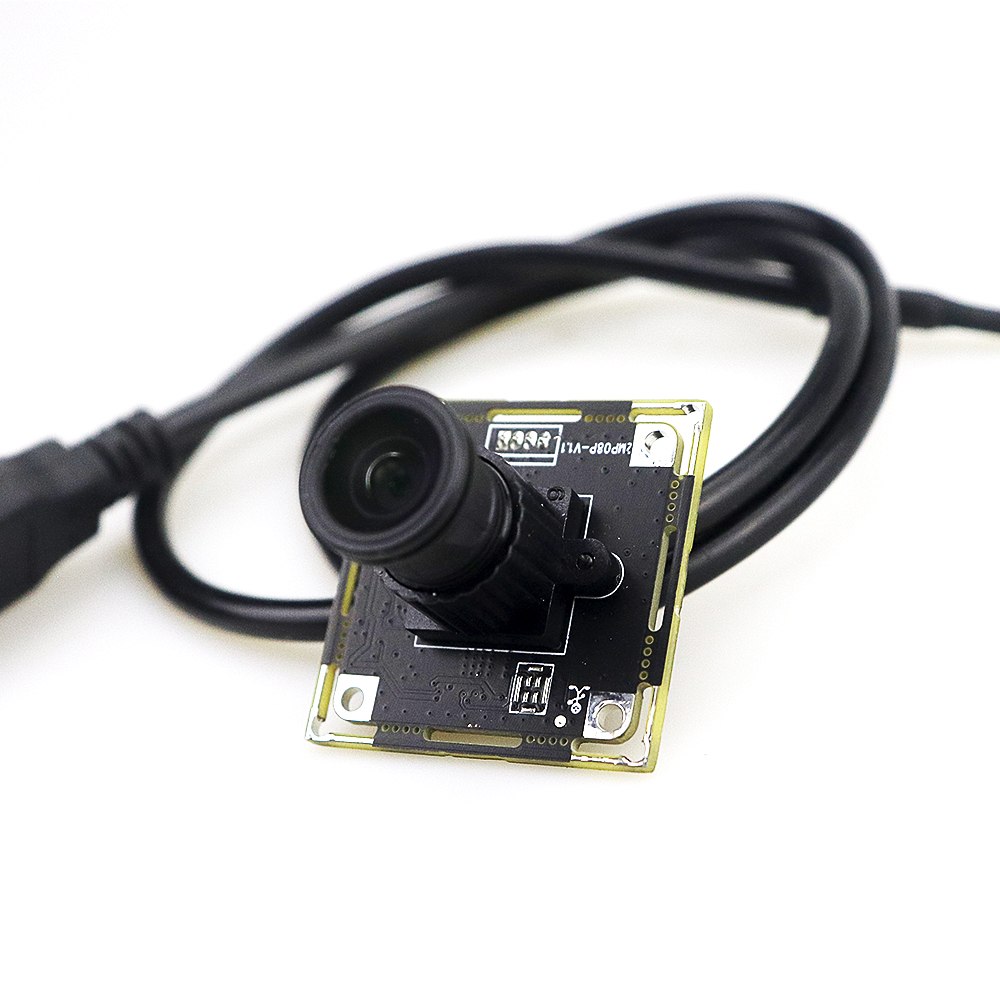

Wide Angle CMOS 1080P Sensor WDR Home Security ATM KIOSK DISPALYER USB Camera Module
Camera Module
Features
· 1/2.7 inchCOMS sensor
· Built-in ISP processing
· USB2.0 Interface,USB Video Class(UVC)
· Data fromat : YUY2 / MJPG
· Auto Exposure (AE). Auto White Balance(AWB)
· Auto Flicker Correction. Color Correction.
· Gamma Correction.
· Dark Level Compensation.
· Software controlled connection to USB bus for re-enumeration.
· Adjustable and dynamic frame rate control on USB transaction.
· Automatic frame rate adjustment when exposure in low light environment.
· Selective suspend to minimize power consumption.
Applications
l ATM machines
l Fingerprint Identification Equipment
l Barcode-scanner
l The equipment need USB interface
Key Specification
|
Parameter |
SPEC |
|
|
Optical size Sensor |
1/2.7 inchCOMS sensor |
|
|
Sensor Resolution |
1920(H) x 1080 (V),1080P |
|
|
Unit pixel size |
3*3um |
|
|
Color filter |
RGB Bayer pattern |
|
|
Shutter type |
Electronic Rolling Shutter |
|
|
Max.capture frame rate |
30fps@full resolution, |
|
|
Max. video frame rate |
30fps@VGA,30fps1080P |
|
|
Dynamic range |
85DB |
|
|
View Angle |
100° |
|
|
F Number |
4mm simple lens |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
with fixed lens over 50CM |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|
Dimensions (mm) (L x W x H) |
32(28)mm x 32(28)mm x27.5(include lens) +/-0.2mm |
|
|
Operating Temperature |
0℃to +50°C |
|
|
Operating System Request |
Windows XP/ Windows 7/ 8/10/11(UVC), Linux(>V2.6 ) |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Standby |
4mA |
|
Operating |
100mA±10mA @ 1080P |
|
