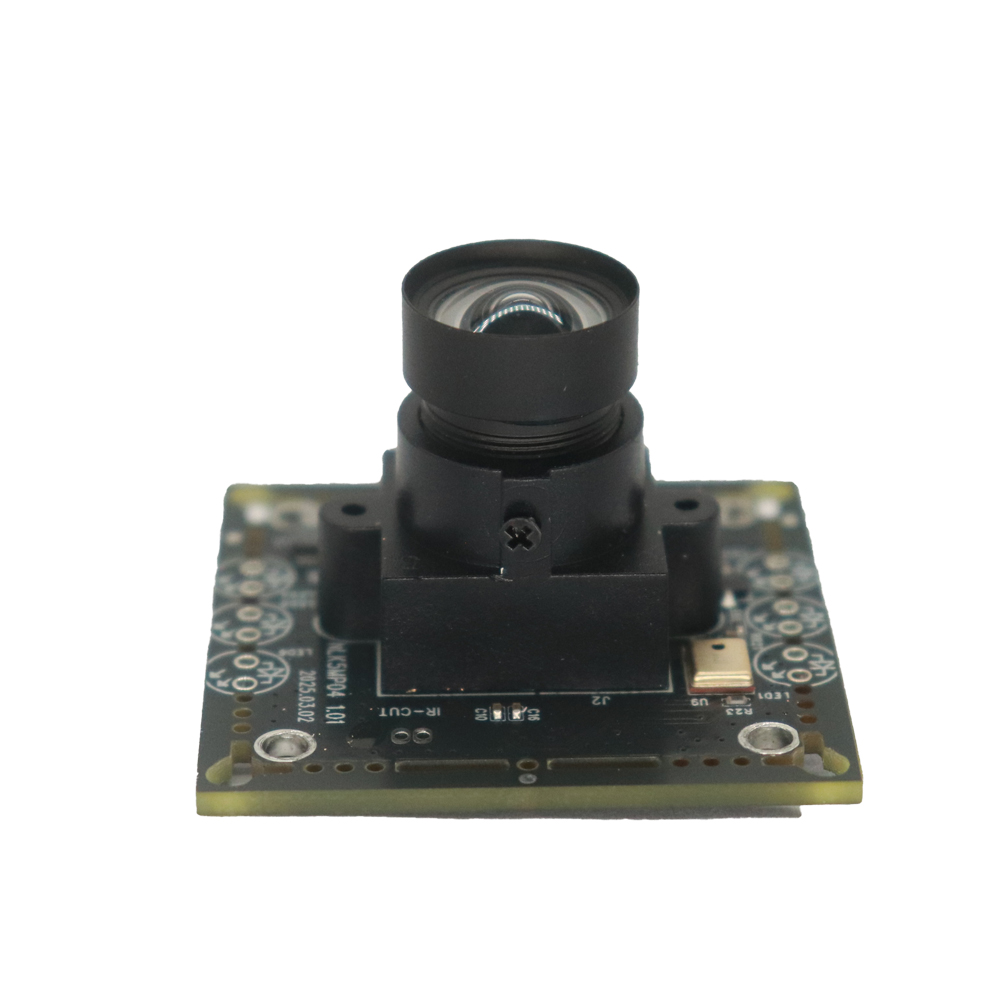

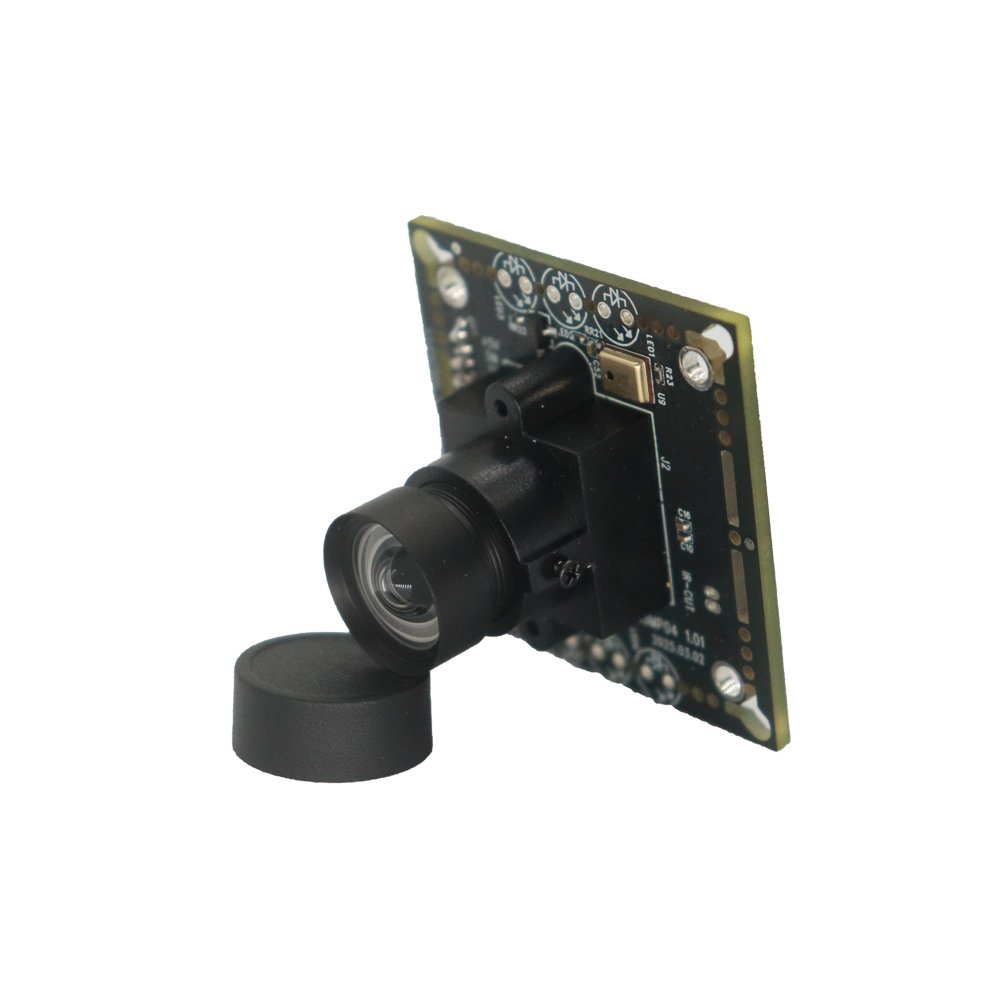

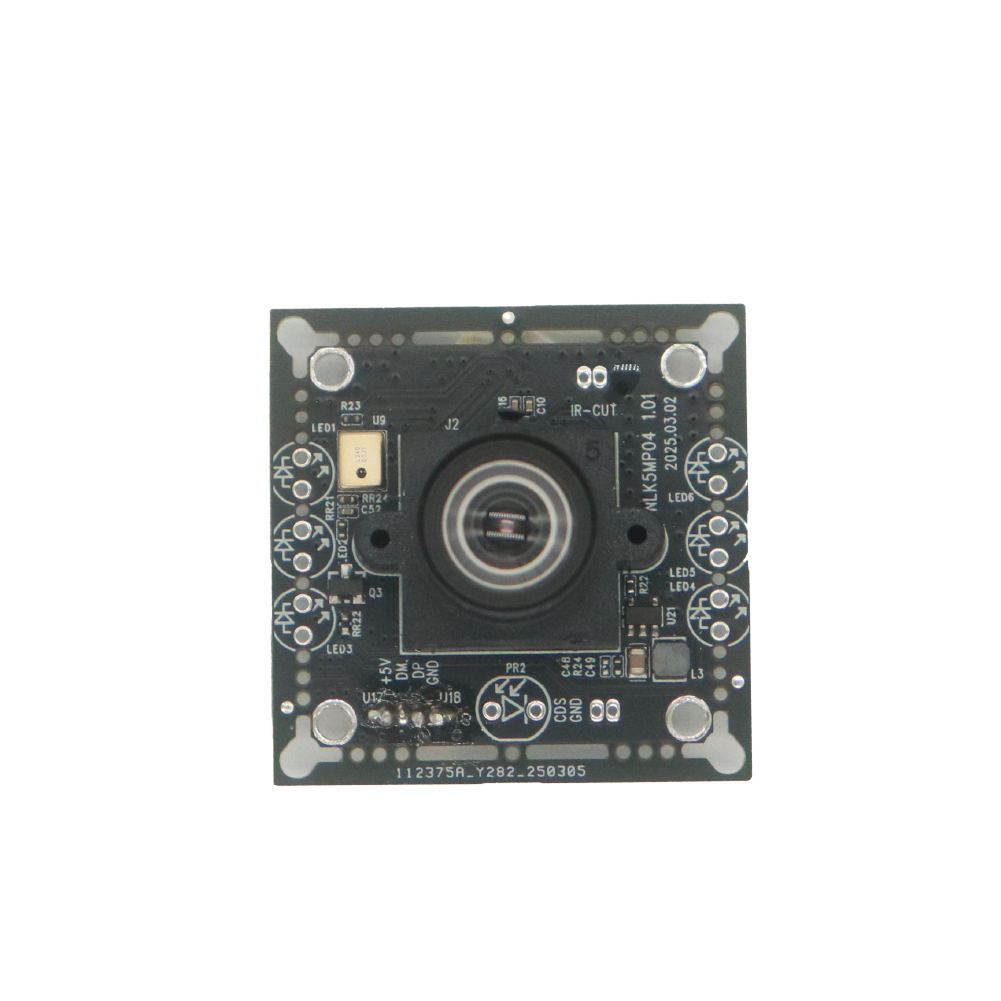

5MP Camera Module 1/2.5inch Color Sensor with Low Lux and Low Power for Smart Home Security or Industrial Inspection
Category：-5MP AF&Fixed lens
Product specifications：
5MP Camera Module 1/2.5 Inch Color Sensor Low Lux Camera Module Low Power Camera Module Smart Home Security Camera Industrial Inspection Camera 2592*1944 Pixel 2592X1944@20fps USB 2.0 Wide Dynamic Range Camera Module High Sensitivity Color Sensor
Details
| Image Sensor | 1/2.5inch Color CMOS sensor |
| Effective pixel | 2592(H)×1944(V) |
| Pixel size | 2.2um*2.2um |
| Horizontal resolution | 5MP |
| Output image format | MJPEG / YUV2（YUYV） |
| S/N ratio | >39dB |
| Dynamicrange HDR | 85dB |
| Electric shutter speed | Electronic rolling shutter / Frame exposure |
| Sensitivity | 2800mV/lux-sec@530nm |
| Pixel and Fps | 640X480@ 30fps /800X600@30fps /1024X768@30fps/1280X960@30fps/1600X1200@ 30fps /2048X1536@ 20fps/2592X1944@20fps |
| Interface Type | USB2.0 High Speed/USB2.0 OTG |
| Driver free | USB Video Class（UVC） |
| Support image process | Support AGC/ AEB/ AEC,Brightness,Contrast, Tint, Color, Sharpness,Gamma, Backlight compensation, Exposure |
| Digital Audio | TBD |
| LENS | F=2.8mm, 130degree angle |
| Size | 28mm x 28mm about 40g |
| Storage temperature | -20~85℃ |
| Working Temperature | -10 ~ +70℃ |
| HDR range | Up to 74db |
| Power supply | USB BUS POWER 4P-1.25mm connector |
| Working voltage | DC5V |
| USB cable | 0.6M/1M/3M optional |
| Support system | Win7,8,10 and Android,linux |
| Working current | 140mA~200mA |
5MP Camera Module 1/2.5 Inch Color Sensor Low Lux Camera Module Low Power Camera Module Smart Home Security Camera Industrial Inspection Camera 2592*1944 Pixel 2592X1944@20fps USB 2.0 Wide Dynamic Range Camera Module High Sensitivity Color Sensor
