Details
| Chip solution | Hisilicon 3516CV610 |
| Sensor | 1/2.8” SONY IMX415 |
| illumination | Color:0.03Lux @(F1.8,AGC ON);B/W:0Lux @(F1.8,AGC ON),0 Lux with IR |
Resolution frame rate
|
Main stream:30fps, 4K(3840*2160)/6MP(3200*1800)@30FPS/5MP(2880*1620)/4MP(2560*1440)/3MP(2304*1296)/2MP(1920*1080), |
| Substream:30fps(1280*720,800×448,640×360,352×288) | |
| Video Encoding format | H.265+/H.265/H.264 |
| Audio Encoding format | G711u/G711A/AAC |
| night vision | Support automatic switching between day and night. Intelligent dual light, infinite infrared or infinite white light. |
| White balance | Support automatic white balance, manual white balance, locked white balance, incandescent lamp, warm light lamp, white light lamp, natural light, |
| Anti-flash mode | 50HZ,60HZ,OFF |
| Aperture type | Manual aperture,auto iris |
| Exposure time | Auto,1/3 to 1/100000 can be set |
| Gain | Auto,6Db,12dB,18dB,24dB,30dB,36dB,42dB，50db |
| 3D noise reduction | Auto,weak,general,strong |
| BLC | OFF/ON |
| WDR | Auto,weak,general,strong |
| IR Image mode | Standard mode,Face without exposure,License plate mode |
| Digital ZOOM | Support 6X digital zoom |
| Focus mode | Fully automatic, semi-automatic, manual |
| focal length | 2.7-13.5mm,5X Optics ZOOM, support 6x digital zoom,Total 30x zoom |
| Zoom speed | about 6 seconds (optical,wide-angle-telephoto) |
| Horizontal-viewing angle | About 108.4°-31.4° (wide angle-telephoto) |
| Close-up distance | 0.2-100meters (wide angle-telephoto) |
| Number of aperture | F1.4-F2.5 |

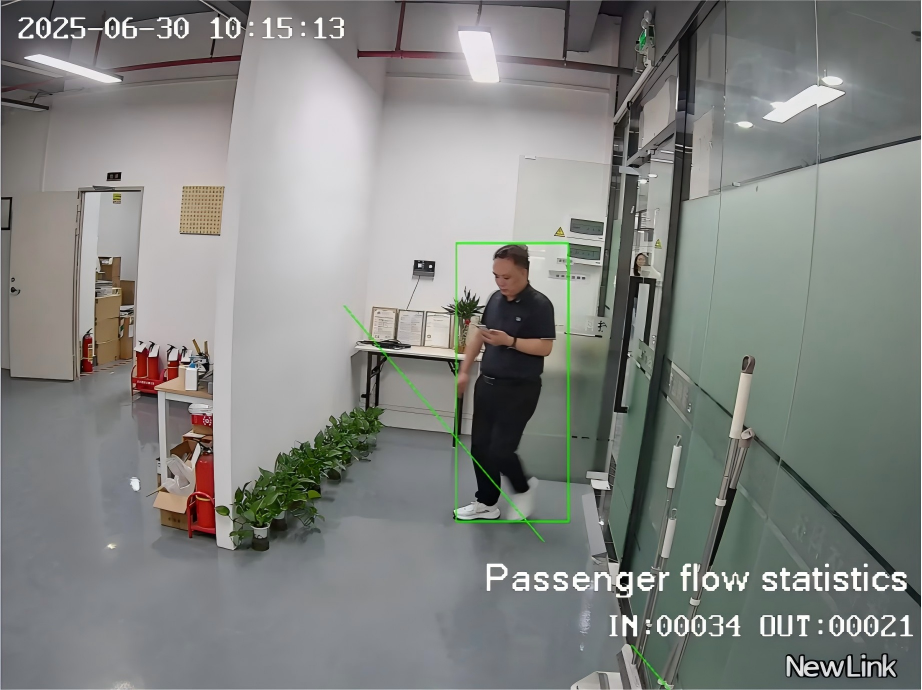

| Smart Detect | Human and vehicle shape detection function; Expand the application scenarios of electronic fences, cross-border detection, departure detection, and passenger flow statistics |
| Smart record | Auto record,timing record,alarm record |
| Smart image Enhance | 60DB WDR, Strong light suppression, face overexposure prevention, smart infrared |
| Smart code | Smart 265/264,Dynamic code stream, fixed code stream, low code stream |
| Proportional zoom | Support |
| Power-Off Memory | Support |
| Network protocol | IPv4,HTTP,HTTPS ,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTCP,RTP,TCP/IP,DHCP,PPPoE,RTSP,RTMP |
| Application Programming | Support open API for software integration, support standard protocol (ONVIF), support Hikvision protocol and third-party management platform access |
| Browser | Support IE8+, Chrome31+, Firefox30+, Safari8.0+ browser |
| preview videos | MAX 3 user sametime preview |
| Wireless wifi | support wifi6 |
| Time | time.windows.com,time.nist.gov,time.kriss.re.kr,time.nuri.net etc.,Network Time Protocol |
| Snapshot | Support Remote timing snapshot, |
| Motion detection | At most 4 respective regions |
| Humanoid detection | Support Humanoid detection record,snapshot,alarm ouput,tracking |
| Alarm linkage | E-mail Alarm and Send with Picture,Save Picture on the FTP Server(not support video), Relay out, alarm send message to mobile phone APP |
| Record | Support computer local record,Browser record,P2P client software record.NVR record |
| SD card | MAX support 512GB |
| Power interface | DC12V(Excluding power adapter) |
| Network | RJ45 10Base-T/100Base-TX,WIFI6 |
| Audio | Support MIC ,audio out and Speaker |
| SD card | MAX support 512GB |
| Reset button | one external reset button |
| Power | Max 8W ,DC12V input /IEED802.3AF/AT PoE power |
| Working | -35℃-65℃; humidity is less than 90% |
| Protection grade | IP66; TVS 4000V lightning protection, anti-surge, anti-surge, in line with GB/T17626.5 level four standards |
| Weight | 0.15KG |
