Details
| item | value |
| Place of Origin | China |
| Guangdong | |
| Brand Name | Newlink |
| Model Number | NLK-1MP04 |
| Application | Fast moving capture |
| Series | Global shutter series |
| Mounting Type | Built-In camera board |
| Size / Dimension | 28*28mm |

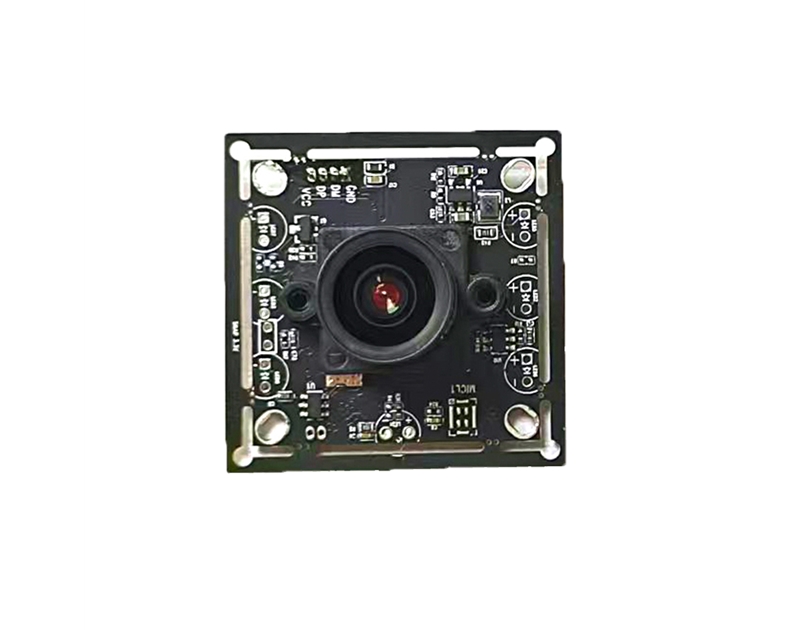

| Description | Global shutter camera board |
| Product Name | 240fps/120fps/60fps 720P Monochrome high speed global shutter Infrared |
| Image Sensor | 1/4 inch or 1/3" CMOS sensor |
| Max.capture frame rate | 220fps@640*400,120fps@720P/1280*800, 60fps@1080P |
| Standby current: | 4mA |
| Working Current: | 150mA+/-10mA @ 720P |
| Operating System | Windows 7 to 10(UVC)/ Android/Linux |
| Sensor Resolution | 1280*800 |
| Lens Viewing angle | 60- 170 degree (optional) |
| Dimension | 28mm x 28mm (H depends lens) |
| Certification | RoHS |
High speed usb camera module Global shutter color camera module Low latency camera module Reach to 220fps oem usb camera module usb camera module cmos night
