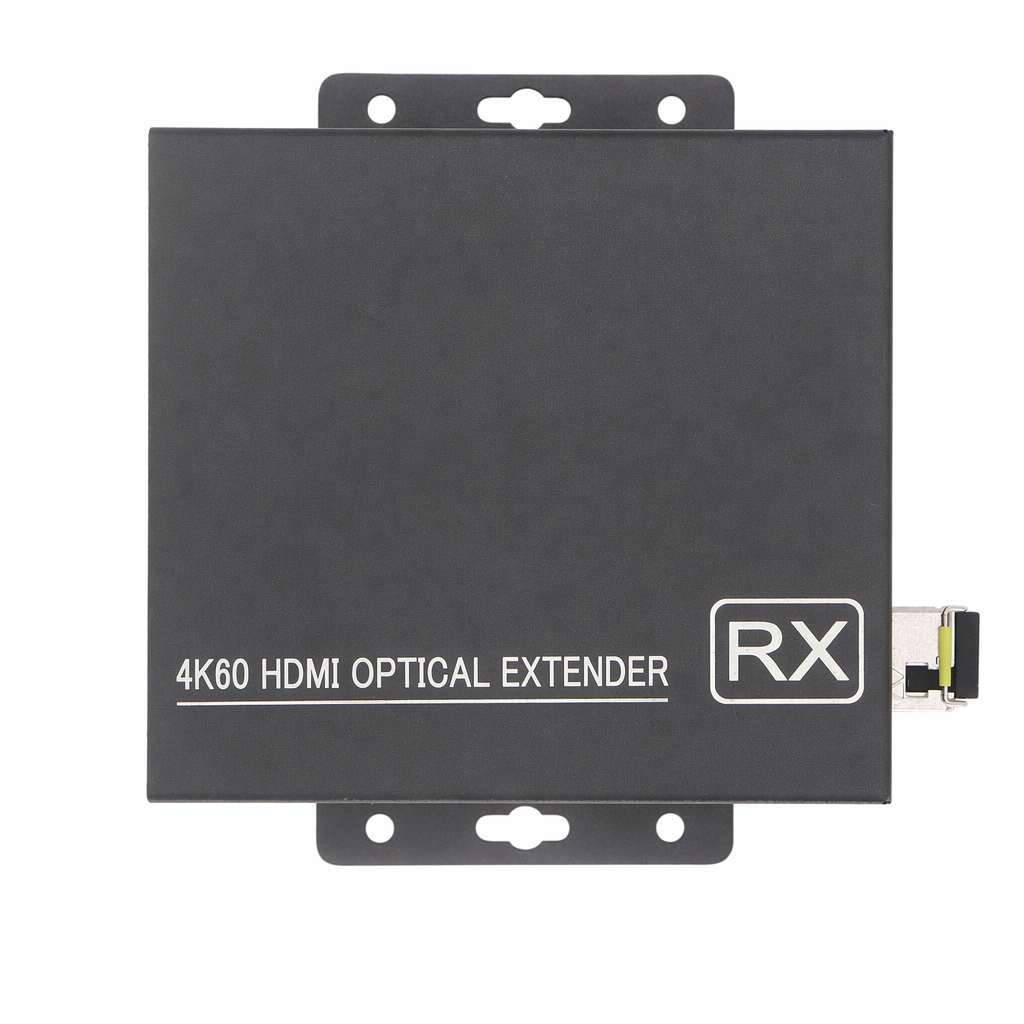

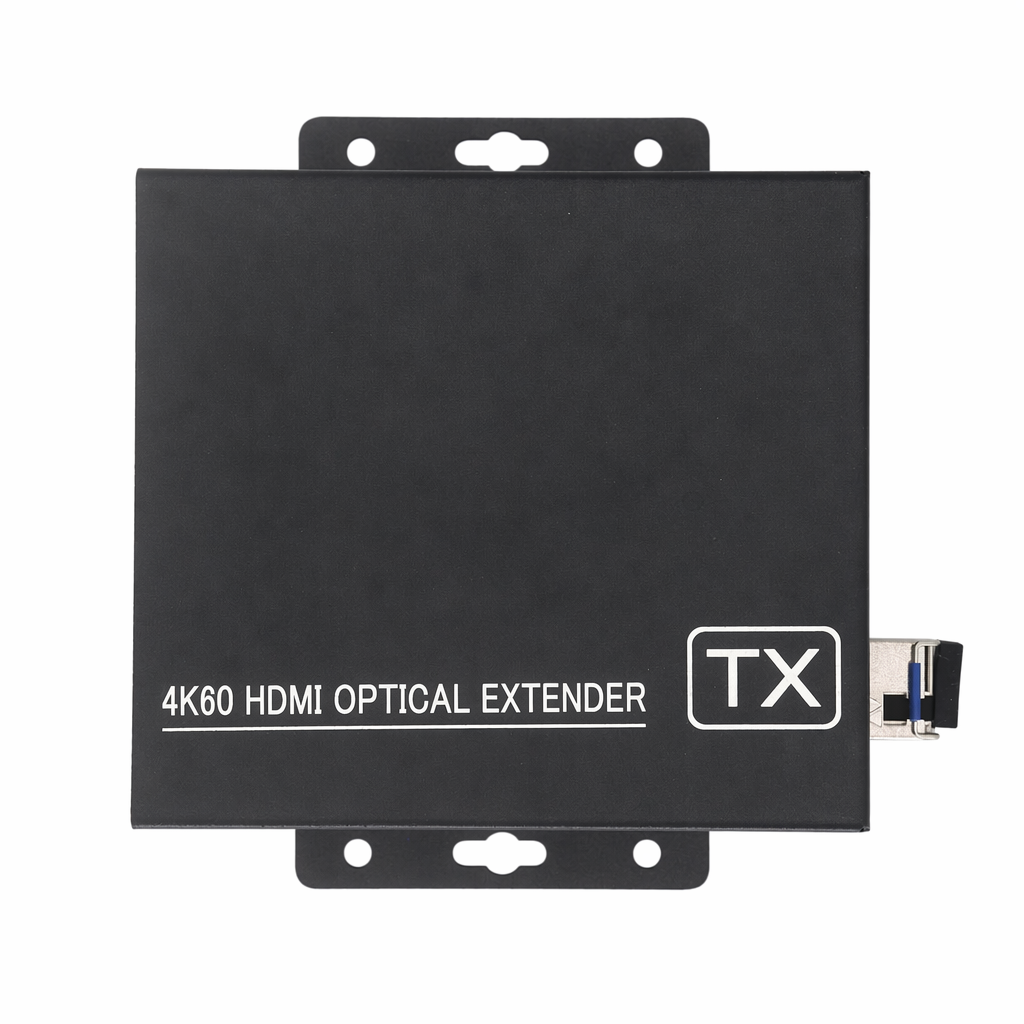

Industrial-Grade 4K 60Hz 4:4:4 HDMI over Fiber Extender with Lossless Audio – Zero Latency, 20km Long-Range Transceiver for ProAV & Broadcasting
Category：Accessories
Product specifications：
HDMI over fiber 4K 60Hz 4:4:4 Long range HDMI fiber extender 20km Zero latency 4K fiber optic transmitter and receiver
Details
Immersive Lossless Audio Transmission: Delivers crystal-clear, uncompressed multi-channel digital audio with zero signal degradation over long distances.
True 4K 60Hz UHD (4:4:4): Zero color compression, razor-sharp text, and vibrant color accuracy for critical visual applications.
20km Ultra-Long Reach: Powered by single-mode fiber optics, extending AV signals up to 20 kilometers effortlessly.
Zero Latency & Perfect Lip-Sync: Real-time transmission ensures audio and video stay perfectly synchronized for live events and broadcasting.
EMI/RFI Resistance: Total immunity to electromagnetic interference, ideal for high-voltage or industrial installations.
Product Overview

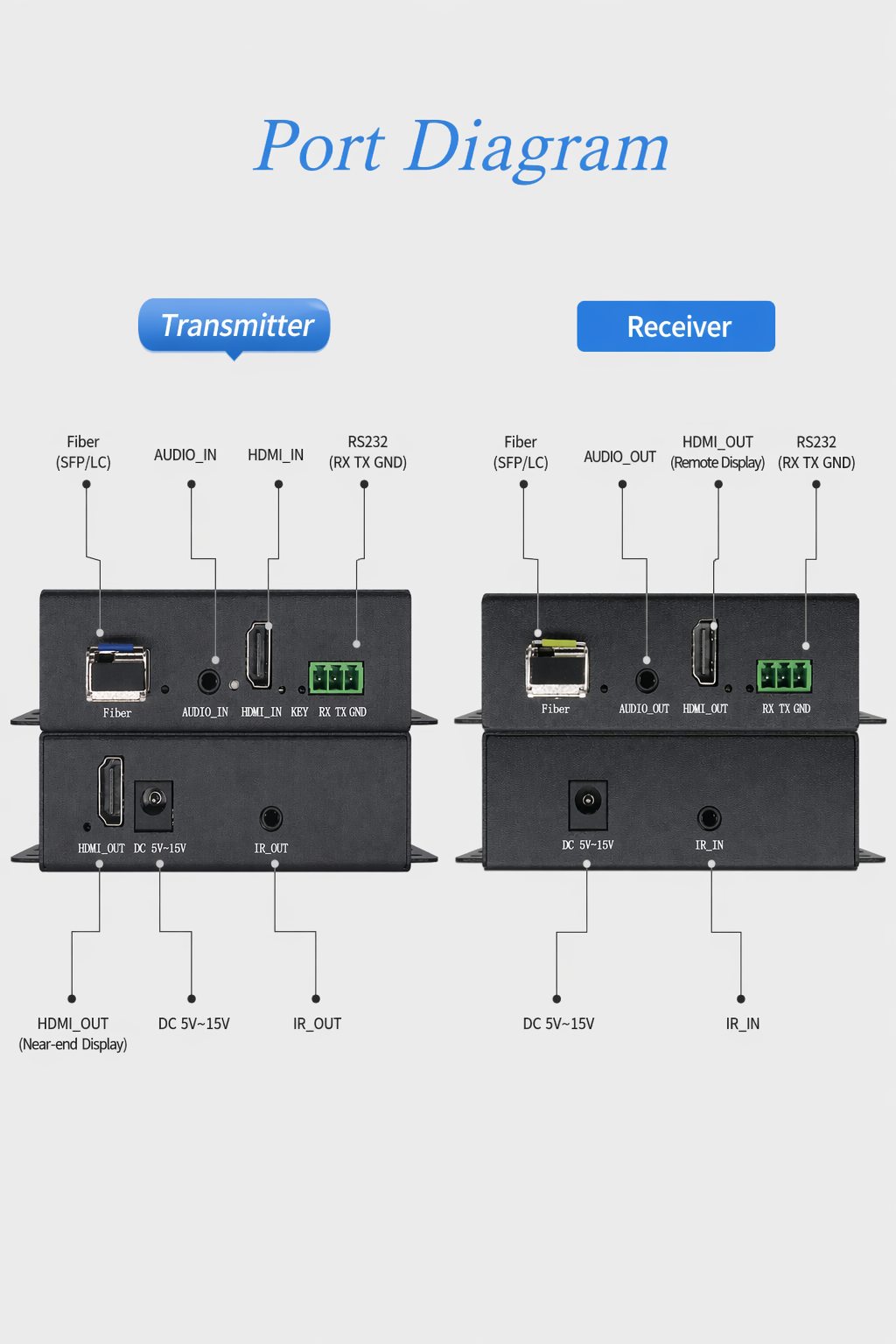

The HDMI + Audio + RS232 Fiber Optic Extender adopts advanced uncompressed
digital high-definition video and high-speed digital fiber optic transmission technology.
It can easily transmit various resolutions of HDMI high-definition signals from computer
hosts, high-definition video signal sources, high-definition DVD/DVR, and other
equipment to the remote end over long distances. It features strong anti-interference
capability, ensuring signal integrity and stability.
Key Features
• All-digital, uncompressed high-definition fiber optic transmission
• Supports Full HD, up to 4K@60Hz
• Supports EDID pass-through
• Supports RS232 pass-through
• 1-channel bidirectional audio transmission
• Single-fiber bidirectional 10G optical module
• SFP (LC) optical interface with attenuation -0.3db/km
• Compatible with HDMI 2.0 standard
• Automatic identification and configuration of various display modes
• Built-in automatic equalization for clear and stable images
• Built-in ESD protection circuit to prevent static damage
• Plug and play, easy installation, no setup required
Technical Specifications
Name
Description
Video Protocol HDMI 2.0
Video Bandwidth
18Gbps
Max Resolution
3840*2160@60Hz / 4096*2160@60Hz
Audio Interface
3.5mm Analog Audio (In/Out)
Data Interface
RS232 (R T G)
Optical Interface LC, SFP Single-mode
Wavelength 1270/1330nm
Fiber Bandwidth 10Gbps
Transmission Distance 20KMNewlink Creation Limited
Model:H4RA
Name
Description
Operating Temperature -20 to +75°C
Power Consumption
5W (per unit)
Power Supply DC 12V/1A
