7 Inch 1024x600 TFT LCD Display Module RGB Interface High Brightness 1000 Nits for Industrial Control
Category：-AHD&CVBS (5 to 10.1)
Product specifications：
Six hundred nits
7 inch TFT LCD module 1024x600 LCD display industrial LCD module RGB LCD display module TFT LCD panel 7 inch industrial control LCD HMI LCD display embedded LCD module machine interface display
Details
| item | value |
| Type | TFT |
| Place of Origin | China |
| Guangdong | |
| Display Size | 7 inch |
| Supplier Type | Original Manufacturer / ODM / OEM |
| Brand Name | Newlink |
| Backlight Type | LED |
| Resolution | 1024X600 |
| Brightness | 1000 cd/m²(and 600cd/m²) |
| Operating Temperature | -20℃ ~ +70℃ |
| Brand | Other |
| Display Type | TFT |
| Mounting Type | Embedded |
| Screen Size | 7 inch |
| Communication Interface | RGB (Parallel RGB 24-bit) |
| Driver Ic | Built-in Driver IC |
| Panel Type | TFT Active Matrix LCD |
| Display Size | 7.0 inch |
| Resolution | 1024*600 (RGB) |
| Interface | 24-bit Parallel RGB |
| Backlight | White LED, 27 LEDs (3S9P) |
| Luminance | 1000 cd/m² (Typ.) |
| Viewing Angle | 85° |
| Power Supply | 3.3V Logic / 10V Analog |
| Operating Temperature | -20°C ~ +70°C |

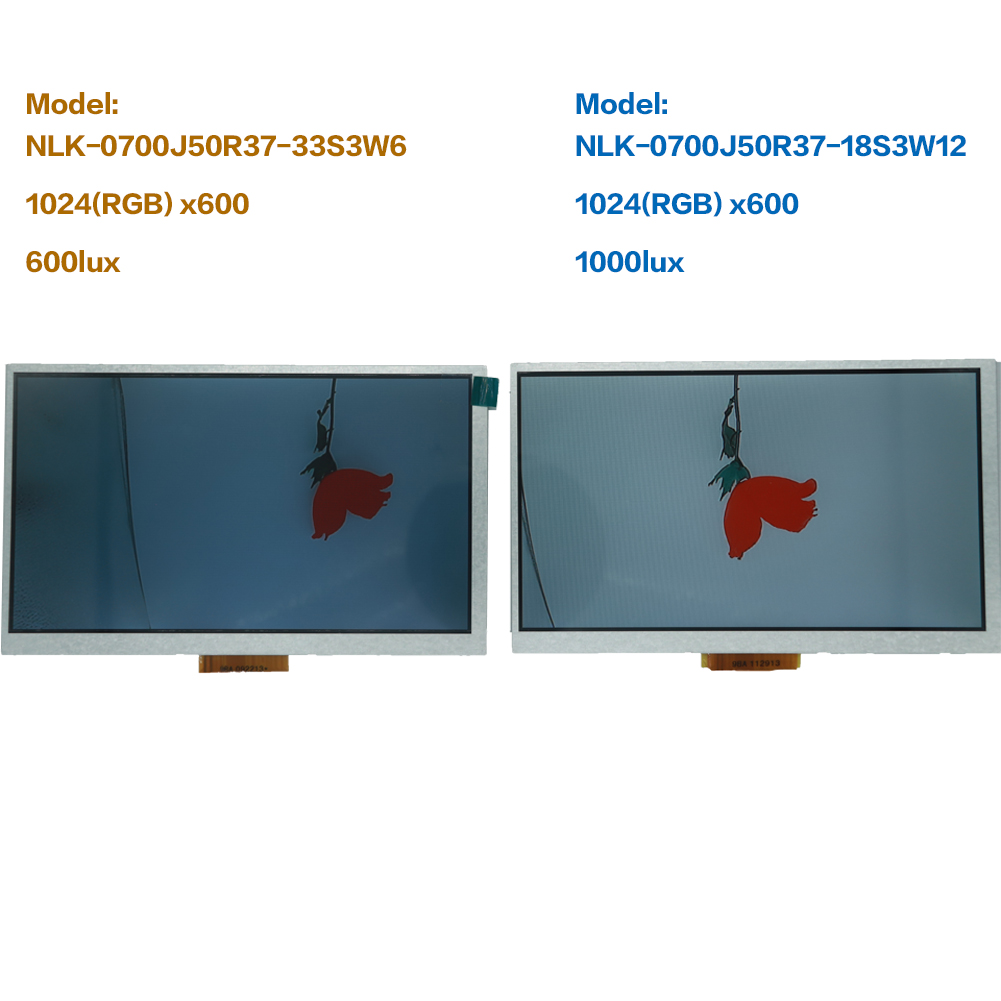

| Brightness option | 600 cd/m² / 1000 cd/m² available |
7 inch TFT LCD module 1024x600 LCD display industrial LCD module RGB LCD display module TFT LCD panel 7 inch industrial control LCD HMI LCD display embedded LCD module machine interface display
