Details
Features
· small size 15*15mm
· 2MP 1080P pixel
· USB2.0 Interface,USB Video Class(UVC)
· Data fromat : YUY2 / MJPG
· Low Power Supply
· Brightness, Contrast, Sharpness, Saturation adjustable
Applications
l Industrial Computer
l Machine Vision, AI
l Smart Home
l ADAS
Electric Parameters
|
Parameter |
SPEC. |
|
|
Optical size Sensor |
1/3 inch COMS sensor |
|
|
Sensor Resolution |
1928(H) x 1088 (V),1080P |
|
|
Unit pixel size |
2.7um |
|
|
Color filter |
RGB Bayer pattem |
|
|
Shutter type |
Electronic Rolling Shutter |
|
|
Max.capture frame rate |
30fps@full resolution, |
|
|
Max. video frame rate |
30fps@VGA,25fps@1080p |
|
|
View Angle |
120° |
|
|
F Number |
2.5 |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
with fixed lens 5CM-∝ |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|
Dimensions (mm) (L x W x H) |
15mm x15mm x13 +/-0.2mm |
|
|
Operating Temperature |
0℃to +50°C |
|
|
Operating System Request |
Windows XP/ Windows 7/ Windows 8(UVC)/Linux/Android |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Standby |
4mA |
|
Operating |
120mA+/-10mA @ 1080P |
|

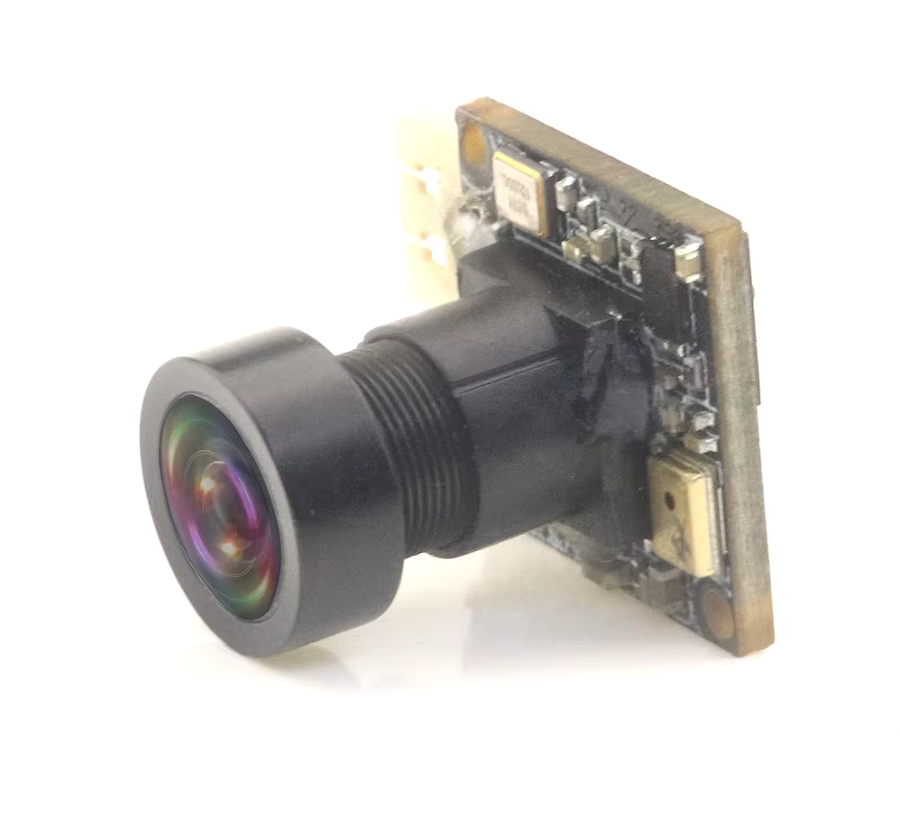

1080P HD webcam Module Plug-and-Play USB camera 1080P USB Camera Module 5x15mm Mini Webcam Ultra Small Camera Board F37P Sensor
