NLK-1MP04
Category：-1MP/2MP Global shutter Monochrome/Color
Product specifications：
2.Support Audio MIC.
3.Standard UVC/UAC protocal, Plug in/out,Support Windows/Android/Linux system.
4. Support 220fps/120fps/60fps @720P
Global shutter camera USB,120fps USB camera,Monochrome USB camera
Details
240fps/120fps/60fps 720P Monochrome global shutter USB webcam IR-LED camera board

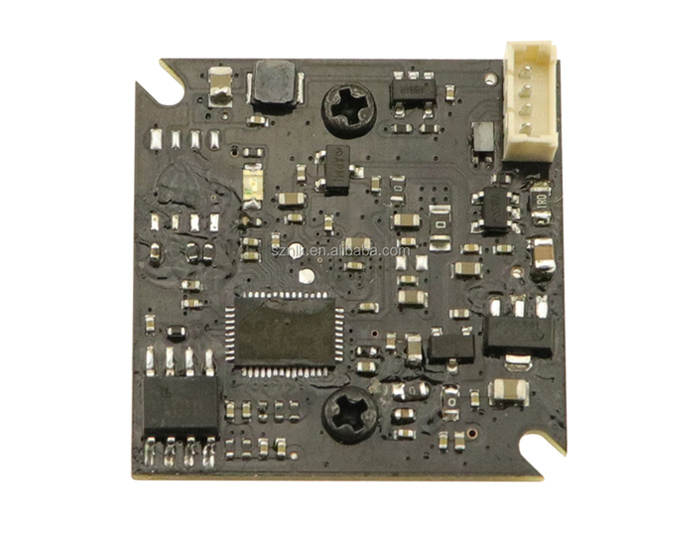

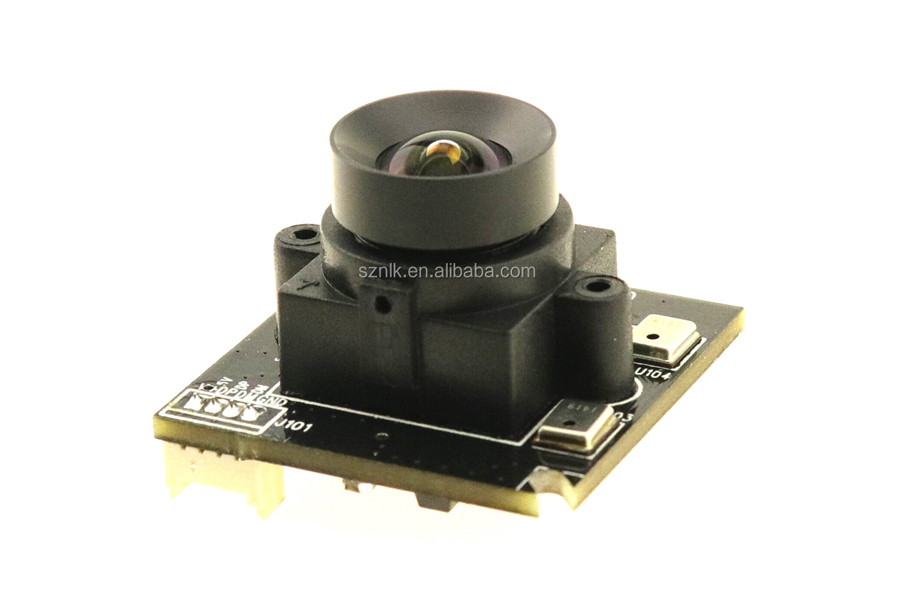

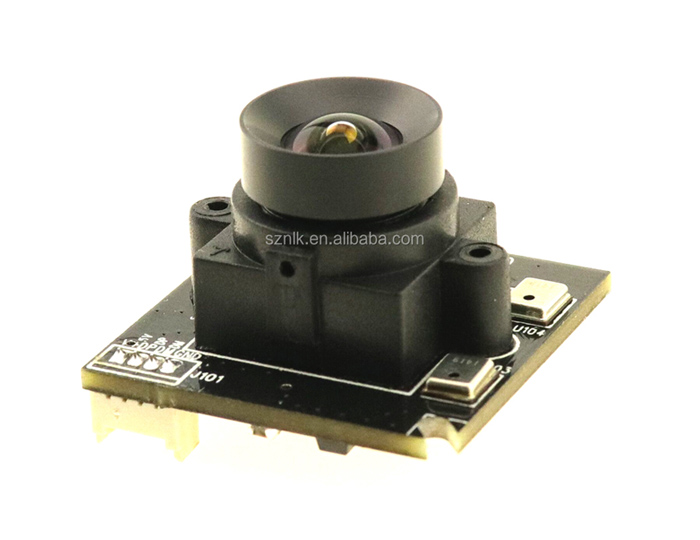

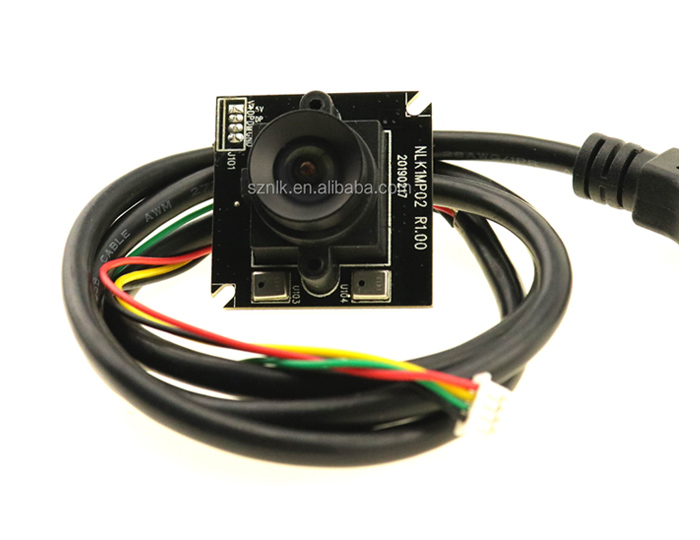

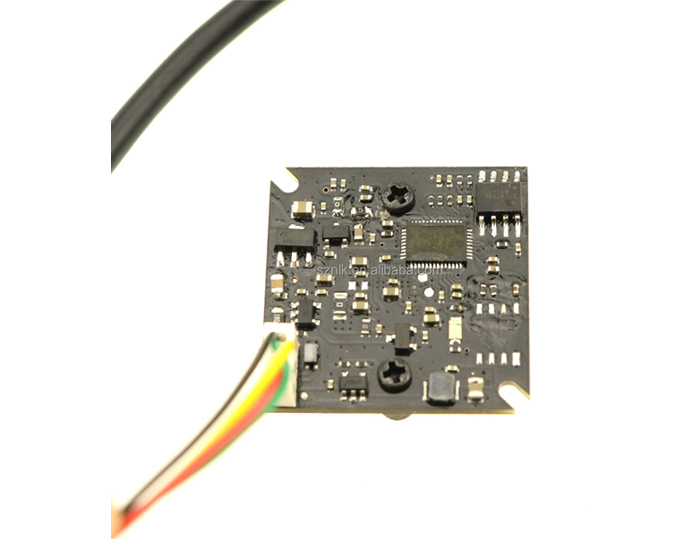

Mini USB Camera Board Module

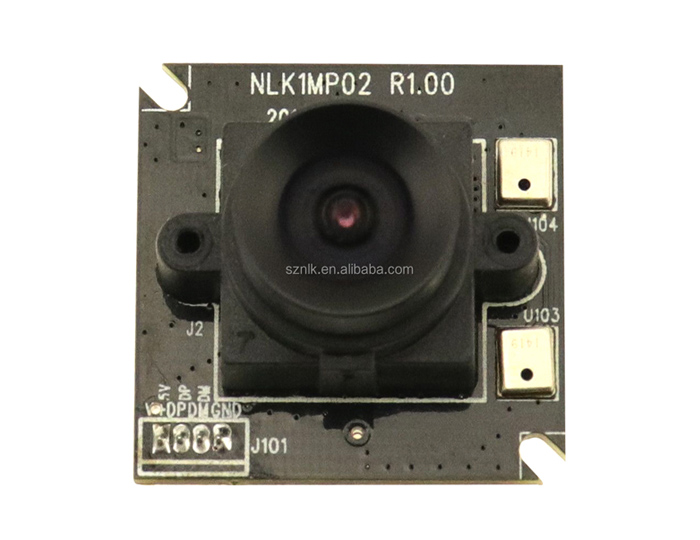

This is the 1mega pixels camera module(NLK1MP04 VER:1.00) with sensor on-board, lens module and USB2.0 video/image process controller. It is designed for the webcam application with the low power consumption.
Features
| 1.1/4" Global shutter Monochrome USB camera |
|
2.Support Audio MIC. |
| 3.Standard UVC/UAC protocal, Plug in/out,Support Windows/Android/Linux system. |
| 4. Support 220fps/120fps/60fps @720P |
Main Parameters
|
Parameter |
SPEC. |
|
|
Optical size Sensor |
1/4 inch COMS sensor |
|
|
Sensor Resolution |
1280(H) x 800 (V),720P |
|
|
Unit pixel size |
3um*3um |
|
|
Color filter |
Monochrome(B/W) |
|
|
Shutter type |
Global Shutter |
|
|
Max. video frame rate (MJPEG) |
220fps@640*400, 640*360, 320*240, 320*200 120fps@720P/1280*800, 800*600, 640*480 |
|
|
View Angle |
Diagonal=90° ,Horizontal=75°,vertical=60°(w/t distortion) |
|
|
F Number |
2.67mm(TY2019B) |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
with fixed lens 50CM-∝ |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|

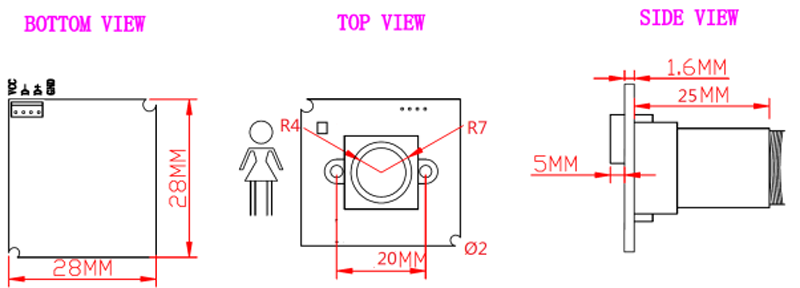

Dimensions (mm) (L x W x H) |
28*28*16mm |
|
|
Operating Temperature |
-10℃to +70°C |
|
|
Operating System Request |
Windows XP/ Windows 7/ Windows 10(UVC), Linux(>V2.6 ) |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Standby |
4mA |
|
Operating |
150mA+/-10mA @ 720P |
|
