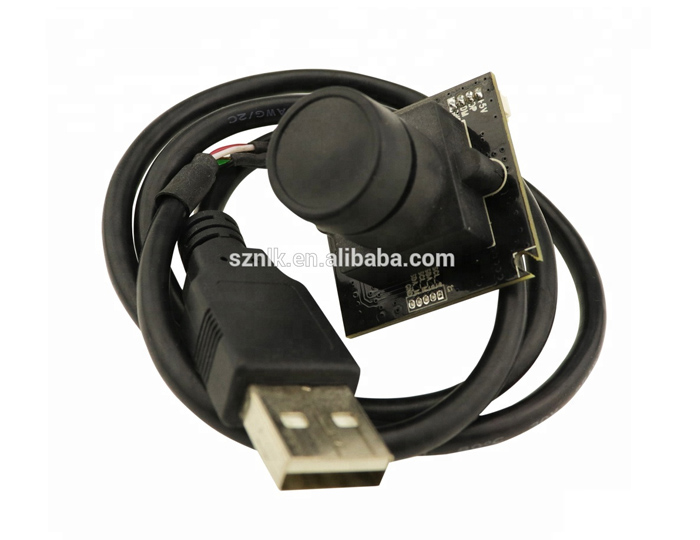

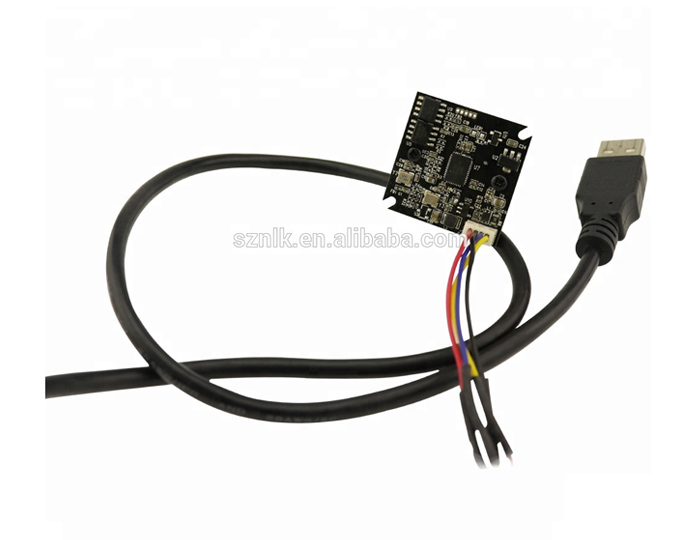

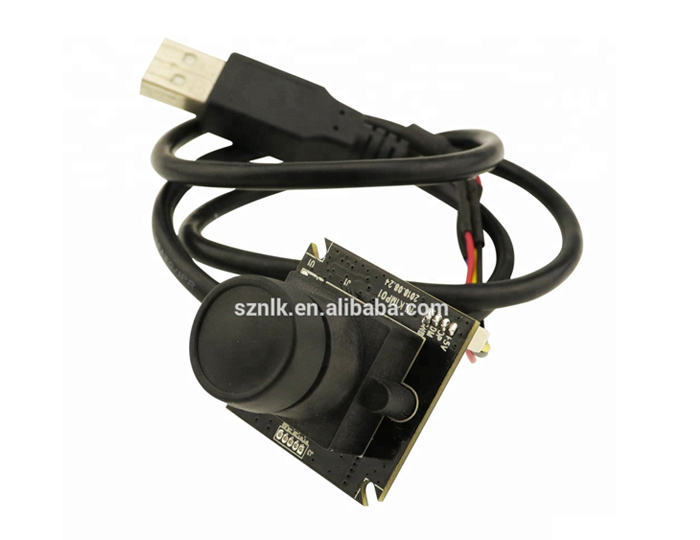

60 To 170degree WDR 1MP 720P 30fps OTG UVC USB Camera Module
OTG UVC USB Camera Module
This is 1.3MP pixels camera module(NLK1MP01 VER:1.01)with sensor on-board, lens module and USB2.0 video/image process controller. It is designed for the webcam application with the low power consumption.
Features
| 1. 60-170 degree wide angle lens |
|
2. Support OTG Windows/Android/Linux |
| 3. WDR and support MIC |
| 4. Cheap price but high quality |
Electric Parameters
| Parameter | SPEC. | |
| Optical size Sensor | 1/3 inch COMS sensor | |
| Sensor Resolution | 1280(H) x 720 (V),720P | |
| Unit pixel size | 4um*4um | |
| Color filter | RGB Bayer pattem | |
| Shutter type | Electronic Rolling Shutter | |
| Max.capture frame rate | 30fps@full resolution, | |
| Max. video frame rate | 30fps@VGA,30fps@720P | |
| View Angle | Diagonal=from 60 to 120 degree | |
| Dynamic Range(WDR) | 120DB | |
| F Number | 2.6mm | |
| AEC / AGC/ White Balance | Auto | |
| Focus Distance | with fixed lens 50CM-∝ | |
| Interface | USB 2.0 | |
| Power | USB Bus Power | |

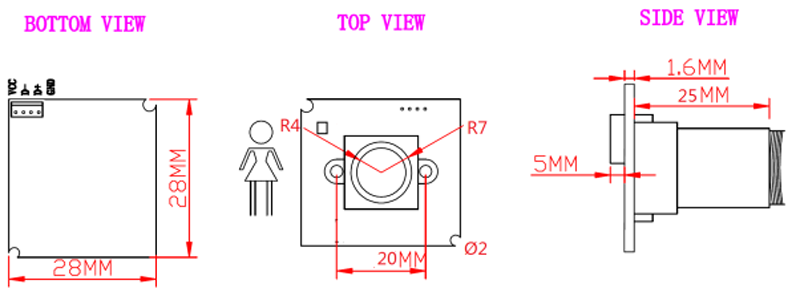

| Dimensions (mm) (L x W x H) | 28*28*30mm | |
| Operating Temperature | -10℃to +60°C | |
| Operating System Request | Windows XP/ Windows 7/ Windows 10(UVC), Linux(>V2.6 ) | |
| Max pixel rate | 28Mp/s | |
| ADC accuracy | 10-bit | |
| USB 2.0 PHY | On Chip PHY | |
| Power Consumption | Standby | 4mA |
| Operating | 150mA+/-10mA @ 720P | |

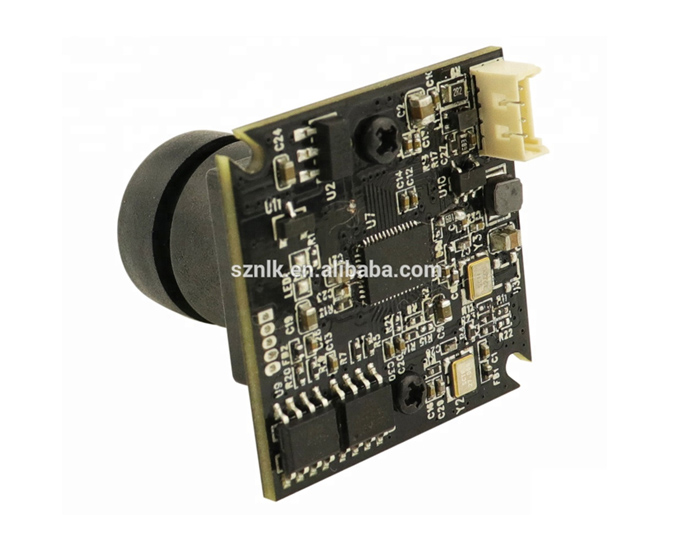

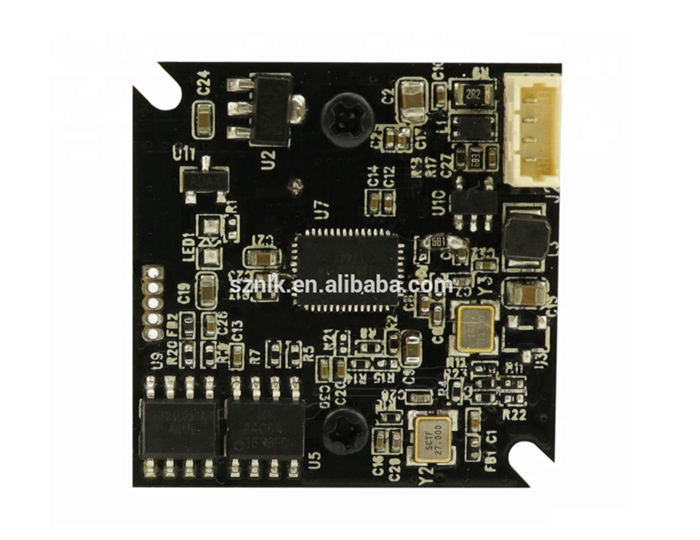

Real WDR USB camera board,Backlight compensation,120DB USB camera
