NLK-1MP03
Category：-1MP/2MP Global shutter Monochrome/Color
Product specifications：
Super small outline and thin profile for embedded
Apply for Android/Linux/Mac/Windows PC with USB ports
Competitive USB camera 720P,Embedded Camera module, uvc Webcam camera microphone,
Details

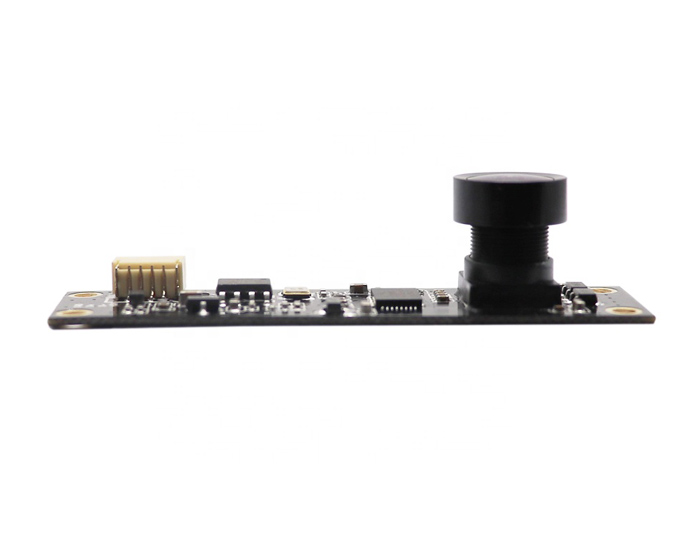

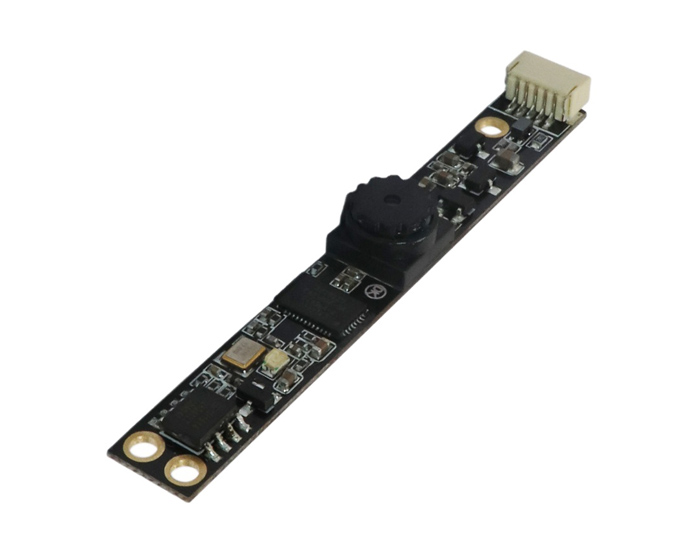

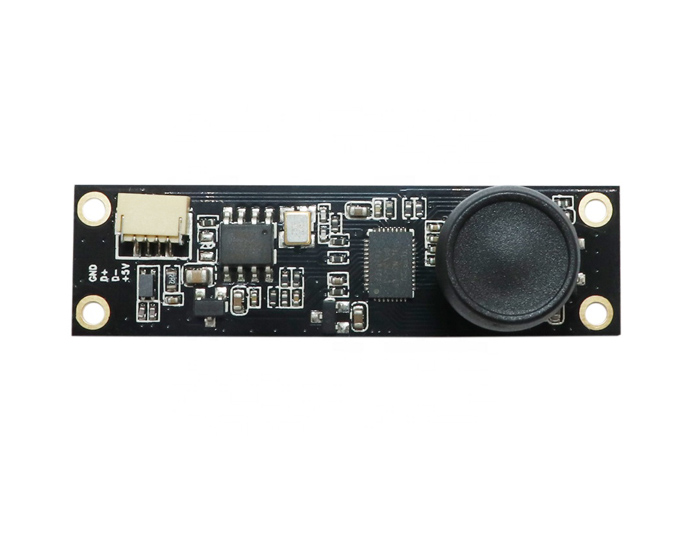

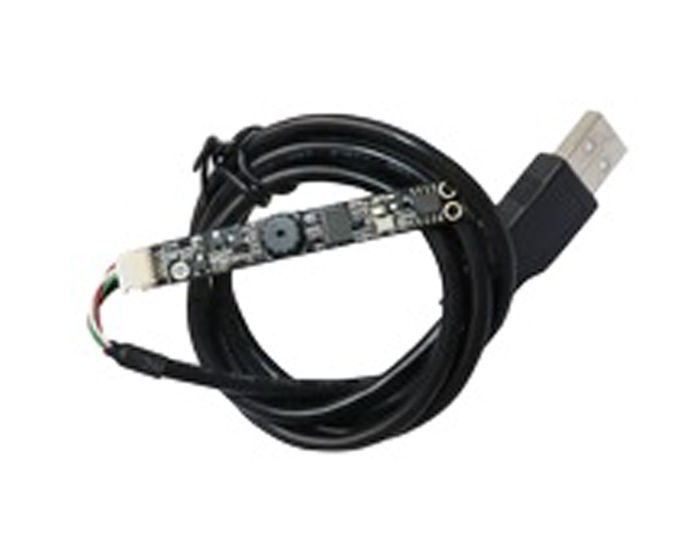

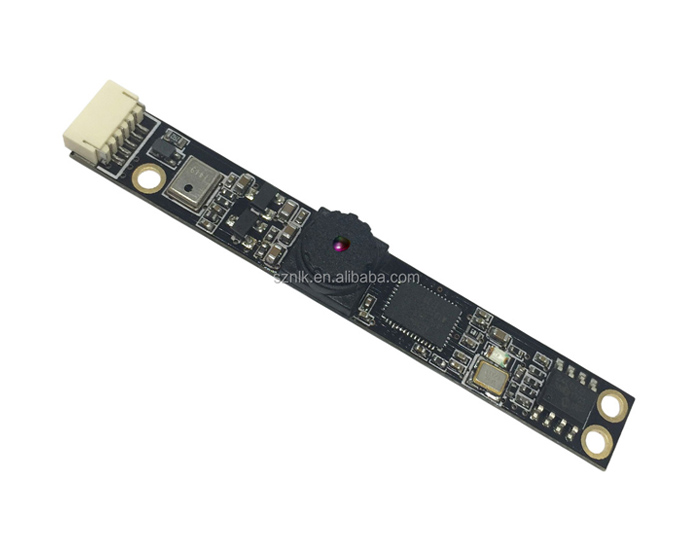

720P 1080P HD Laptop Computer built-in mini Webcam USB camera board
This USB Web Camera board is made by JX-H62, easy plug and play, most of them are using for consumer electronics field.
Features
60/90/120 degree wide angle view
Super small outline and thin profile for embedded
Apply for Android/Linux/Mac/Windows PC with USB ports
Electric Parameters
|
Parameter |
SPEC. |
|
|
Optical size Sensor |
1/4 inch COMS sensor |
|
|
Sensor Resolution |
1280(H) x 720 (V),720P |
|
|
Unit pixel size |
3um*3um |
|
|
Color filter |
RGB Bayer pattem |
|
|
Shutter type |
Electronic Rolling Shutter |
|
|
Max.capture frame rate |
15fps@full resolution, |
|
|
Max. video frame rate |
30fps@VGA,25fps@720p |
|
|
View Angle |
66° or (90 degree and 120 degree optional) |
|
|
F Number |
2.8 |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
with fixed lens 5CM-∝ |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|
Dimensions (mm) (L x W x H) |
60mm x 8mm x6.3 +/-0.2mm |
|
|
Operating Temperature |
-10℃to +60°C |
|
|
Operating System Request |
Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 ) |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Standby |
4mA |
|
Operating |
100mA+/- 10mA @ 720P |
|
