Usb Camera Laptop Internal Webcam High Resolutio Oem Mini NLK-2MP01 Camera Module

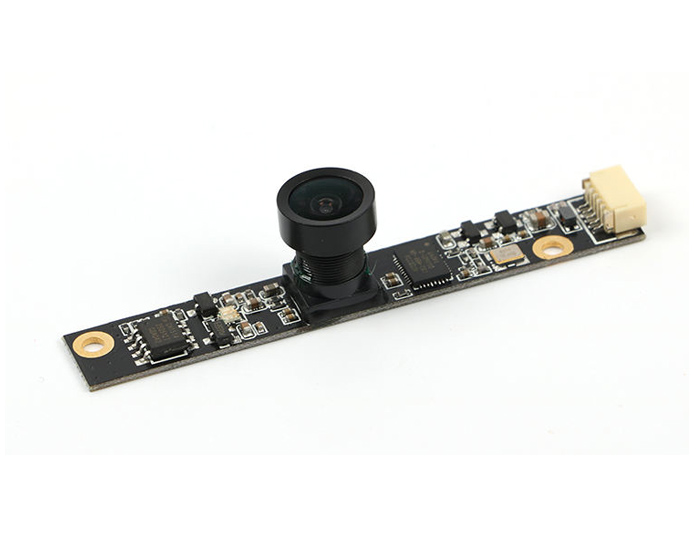

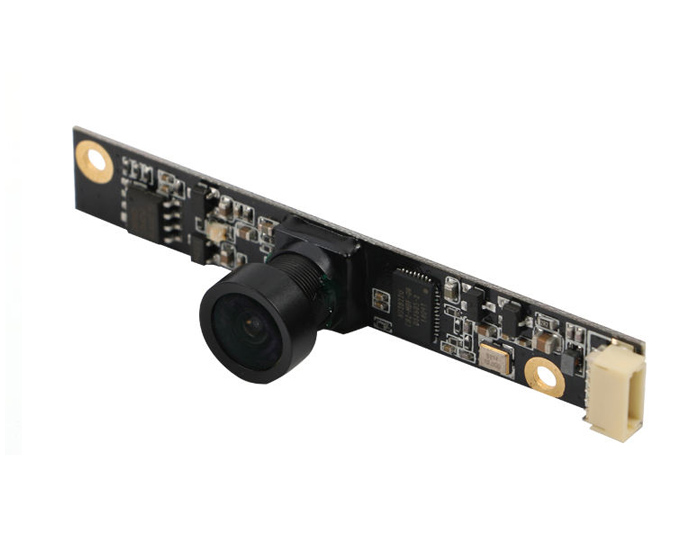

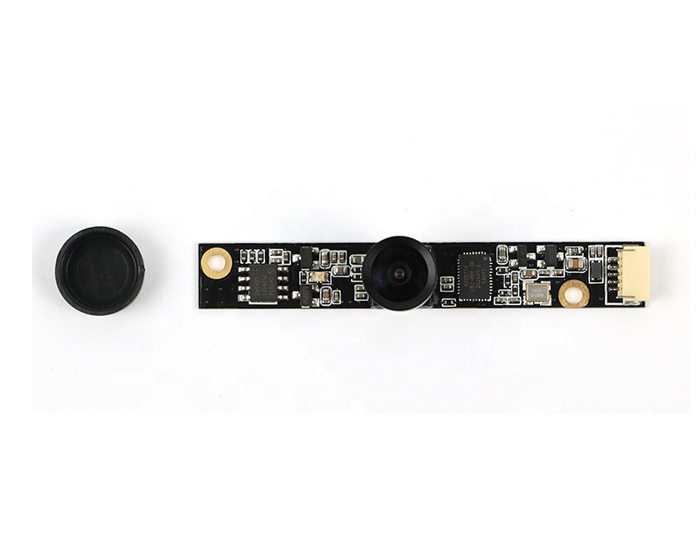

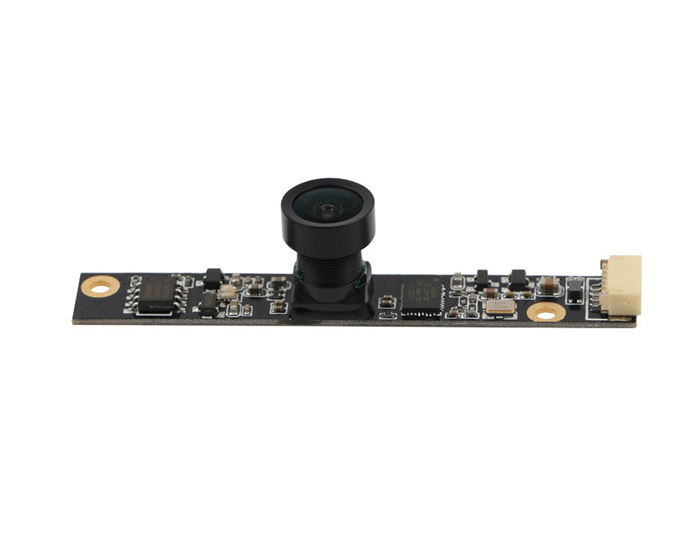

ATM KIOSK USB Camera Board
This USB Web Camera board is made by OV2643,easy plug and play, most of them are using for Medical and Industrial computers and ATM machine and Bar coder scanner and POS machine.
Features
| 1. 60/90/120 degree wide angle view autofocus megapixel lens usb camera |
|
2. 2Megapixel USB Webcam up to 2592x1944 high HD resolution |
| 3. Auto explosure and auto white balance |
| 4. Super small outline and thin profile for embedded |
| 5. compact industrial camera solution for any |
| 6. Android/Linux/Mac/Windows PC with USB ports |
| 7.Microphone added |
Electric Parameters
| Parameter | SPEC | |
| Optical size Sensor | 1/4 inch CMOS sensor | |
| Sensor Resolution | 1600(H) * 1200 (V),UXGA(YUV2) | |
| Unit pixel size | 1.4um | |
| Color filter | RGB Bayer pattem | |
| Shutter type | Electronic Rolling Shutter | |
| Max.capture frame rate | 5fps@full resolution, 5fps@UXGA(YUV2) | |
| Max. video frame rate | 30fps@VGA,30fps@720p (MJPG) | |
| AUDIO sensor | Digit Microphone | |
| MIC sensitivity | -26DB+/-3DB | |
| View Angle | 66° | |
| F Number | 2.8 | |
| AEC / AGC/ White Balance | Auto | |
| Focus Distance | with fixed lens 5CM-∝ | |
| Interface | USB 2.0 | |
| Power | USB Bus Power | |
| Dimensions (mm) (L x W x H) | 60mm * 8mm *6.3 +/-0.2mm | |
| Operating Temperature | 0℃ to 50°C | |
| Operating System Request | Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 ) | |
| Max pixel rate | 28Mp/s | |
| ADC accuracy | 10-bit | |
| USB 2.0 PHY | On Chip PHY | |
| Power Consumption | Standby | 4mA |
| Operating |
100mA+/-10mA @ 720P |
|
