NLK-2MP04
Category：-2MP USB WDR camera module
Product specifications：
New A-Grade Chips and components
Cheap Price and high quality
Difference size with or without MIC and LEDs.
Difference lens size with or without filter
2 Years Warranty
USB camera PCB,Mini USB camera,1080P Camera board
Details
Cmos Ov2710 Sensor Hd 1080p Free Driver Built-in Autofocus Usb Web Camera Board

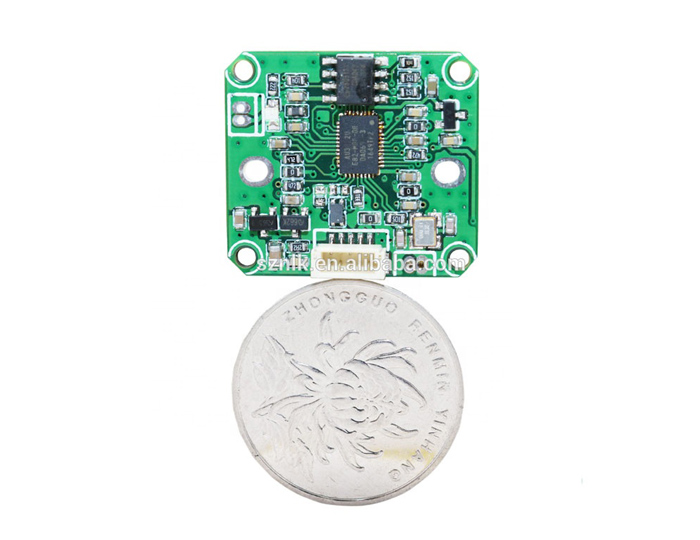

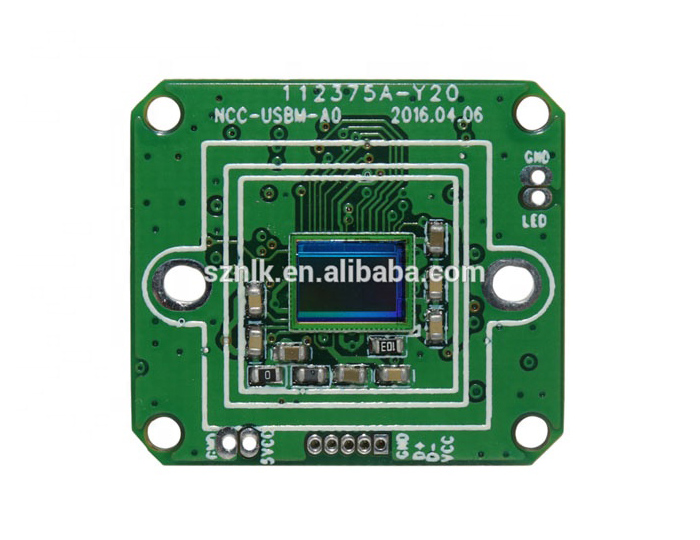

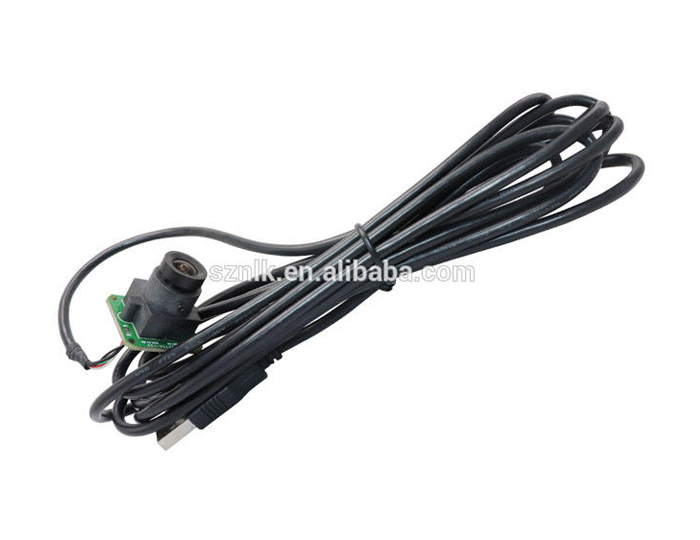

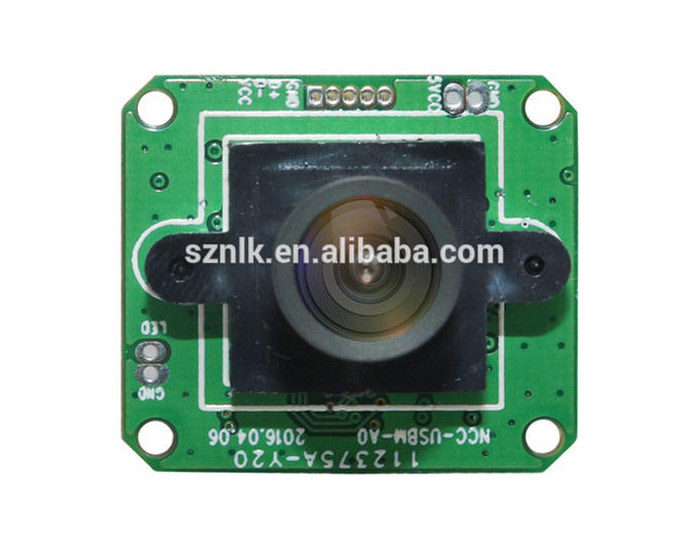

USB Web Camera board
This USB Web Camera board is made by OV2710,easy plug and play, most of them are using for Medical and Industrial and Bar coder scanner and POS machine.
Features
CMOS OV2710 as Sensor
New A-Grade Chips and components
Cheap Price and high quality
Difference size with or without MIC and LEDs.
Difference lens size with or without filter
2 Years Warranty
Application Area
1) Notebook(special for Industrial and Medical )
2) Postable POS&ATM machines
3) Fingerprint identification Equipment
4) Barcode-scanner and other equipment need USB interface for cameras.
Electric Parameters
|
Parameter |
SPEC. |
|
|
Optical size Sensor |
1/2.7 inch COMS sensor |
|
|
Sensor Resolution |
1920(H) x 1080 (V),1080P |
|
|
Unit pixel size |
3*3um |
|
|
Color filter |
RGB Bayer pattem |
|
|
Shutter type |
Electronic Rolling Shutter |
|
|
Max.capture frame rate |
30fps@full resolution, |
|
|
Max. video frame rate |
30fps@VGA,15fps1080P |
|
|
View Angle/Focal Length |
90° /3.6 |
|
|
F Number |
2.0 |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
with fixed lens 50CM-∝ |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|

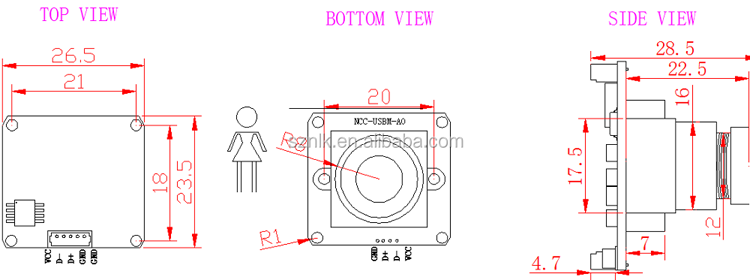

Dimensions (mm) (L x W x H) |
26mm x 24mm x6.3 +/-0.2mm |
|
|
Operating Temperature |
0℃to +50°C |
|
|
Operating System Request |
Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 ) |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Standby |
4mA |
|
Operating |
100mA+/-10mA @ 720P |
|
