NLK-2MP06
Category：-2MP USB WDR camera module
Product specifications：
Highly advanced AR0230 Sensor
Compression format : H264 /MJPEG / YUV2(YUYV)
Come with microphone on the board which support single channel and dual channel.
Optional to add IR LED Board for night vision
White balance adjustable: Resolve color reduction and tone processing issues
USB 2.0 High speed port
Equiped ...
Wide angle camera, No distortion lens,H.264 USB camera
Details

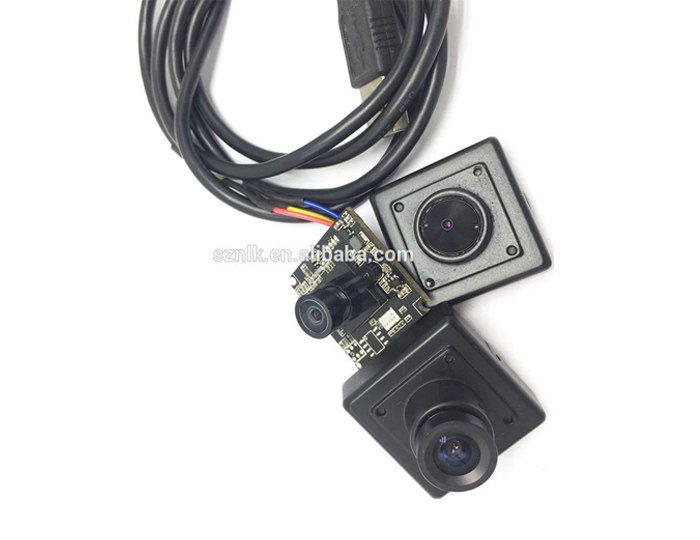

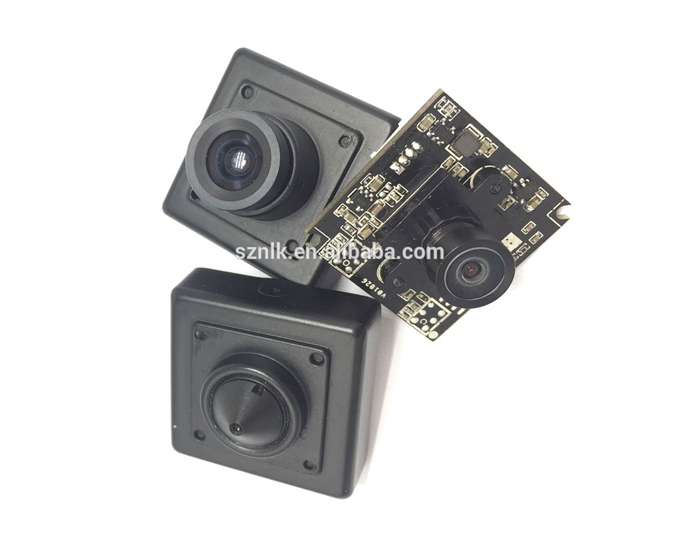

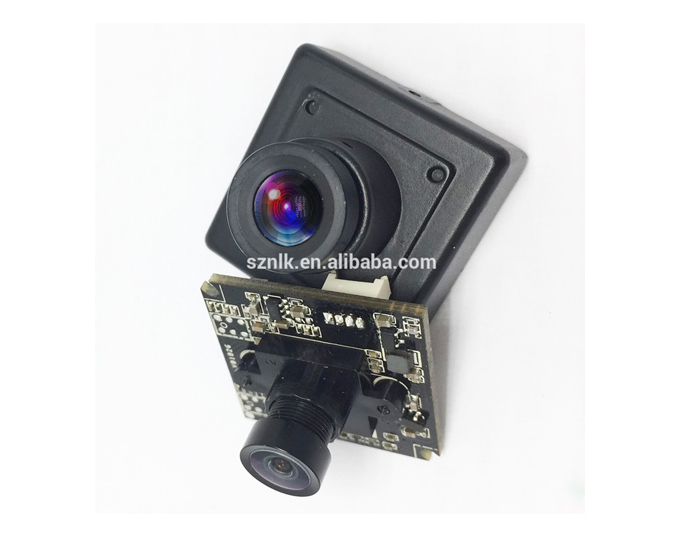

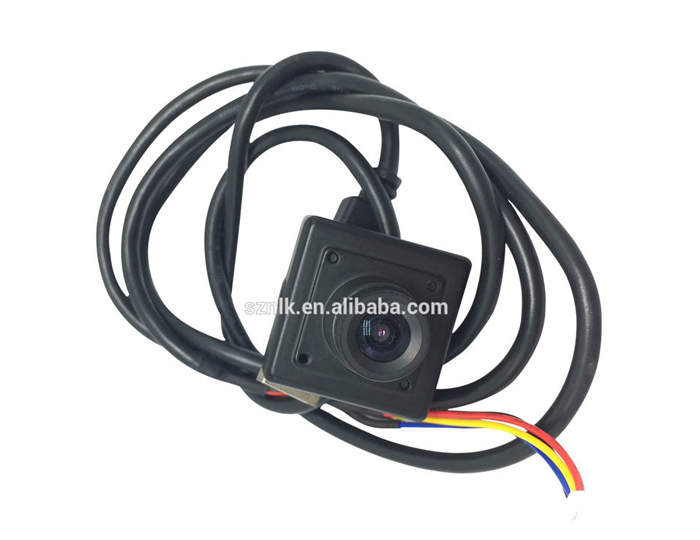

2MP WDR H.264 1080P USB Wide Angle Webcam Camera Board With UVC AR0230 Sensor
Wide Angle Webcam Camera Board

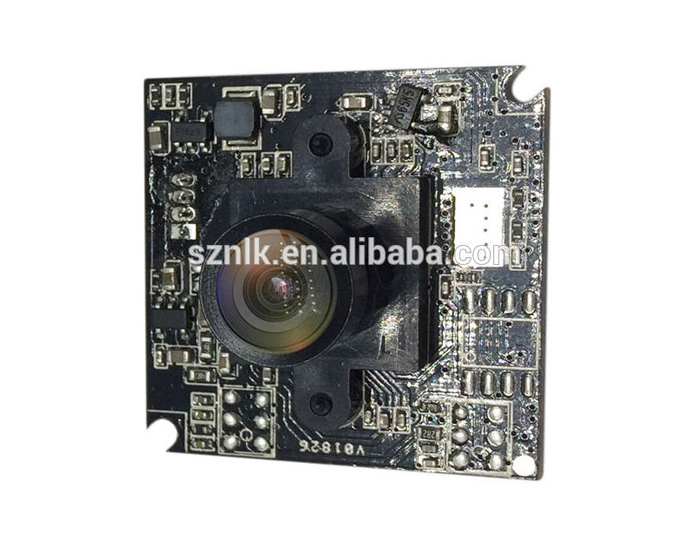

This USB Web Camera board is made by AR0230,easy plug and play, most of them are using for Medical and Industrial and Bar coder scanner and POS machine.
The AR0230 image sensor is a low voltage, high performance, 1/2.7-inch 2 megapixel CMOS image sensor that provides the full functionality of a single chip 2megapixel (1920*1080)camera using APTINA in a small footprint package. It provides full-frame, sub-sampled, windowed or arbitrarily scaled 12-bit images in various formats via the control of the Serial Camera Control Bus(SCCB) interface.
Application Area
1) Notebook(special for Industrial and Medical )
2) Portable POS ATM machines
3) Fingerprint identification Equipment
4) Barcode-scanner and other equipment need USB interface for cameras.
Features
Ultra Low light Camera, Minimum illumination 0.01lux
Highly advanced AR0230 Sensor
Compression format : H264 /MJPEG / YUV2(YUYV)
Come with microphone on the board which support single channel and dual channel.
Optional to add IR LED Board for night vision
White balance adjustable: Resolve color reduction and tone processing issues
USB 2.0 High speed port
Equiped with 2.8-12mm varifocal lens ,
Optional 2.1/2.8/3.6/6/8/12/16/25 mm,3.7mm pinhole lens, 2.8-12mm varifocal lens
FOV=170/180degree fisheye lens optional
Support OS: Win7 Win8 Win10 Win11 / Linux 2.6 or above / Android 4.0 or above
Why Use H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems,
Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Electric Parameters
|
Parameter |
SPEC. |
|
|
Optical size Sensor |
1/2.7 inch COMS sensor |
|
|
Sensor Resolution |
1920(H) x 1080 (V),1080P |
|
|
Unit pixel size |
3*3um |
|
|
Color filter |
RGB Bayer pattem |
|
|
Shutter type |
Electronic Rolling Shutter |
|
|
Max.capture frame rate |
30fps@full resolution, |
|
|
Max. video frame rate |
30fps@VGA,15fps1080P |
|
|
View Angle/Focal Length |
90° /3.6 |
|
|
F Number |
2.0 |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
with fixed lens 50CM-∝ |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|

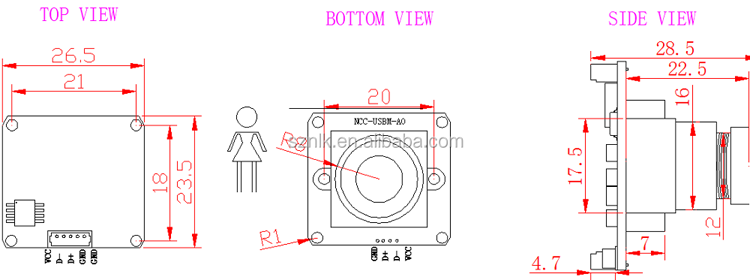

Dimensions (mm) (L x W x H) |
26mm x 24mm x6.3 +/-0.2mm |
|
|
Operating Temperature |
0℃to +50°C |
|
|
Operating System Request |
Windows XP/ Windows 7/ Windows 8(UVC), Linux(>V2.6 ) |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Standby |
4mA |
|
Operating |
100mA+/-10mA @ 720P |
|
