NLK-2MP07
Category：-2MP USB WDR camera module
Product specifications：
2. Support H.264/YUV2/MJPG
3. Supports FULL HD(1920*1080) SXGA ,720P, XGA SVGA,VGA output formats
4. USB Video Class compliant, works with native driver in Microsoft Windows XP 32-bit/64-bit,VISTA 32-bit/64-bit,Windows 7
5. Auto Exposure (AE). Auto White Balance(AWB)
6. Auto Flicker Correction. Color Correction
Night USB camera,Sony Starvis USB camera,HD USB CCTV camera
Details

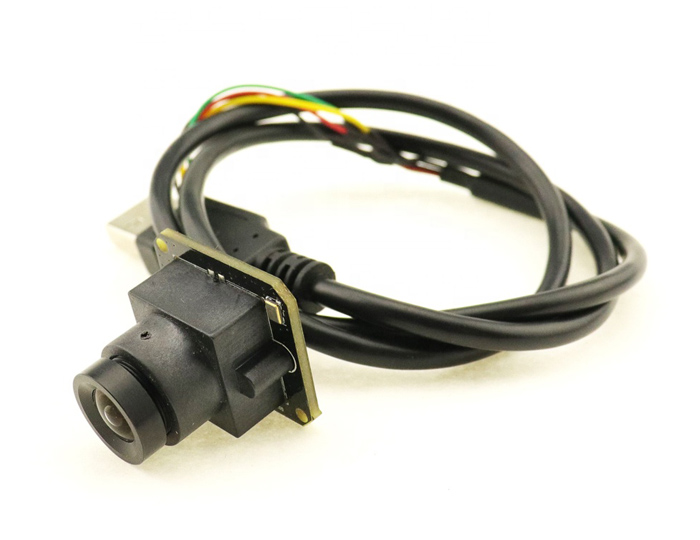

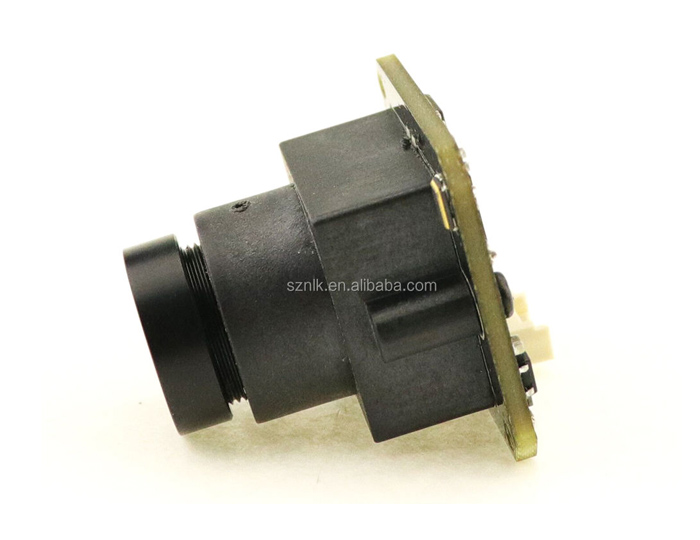

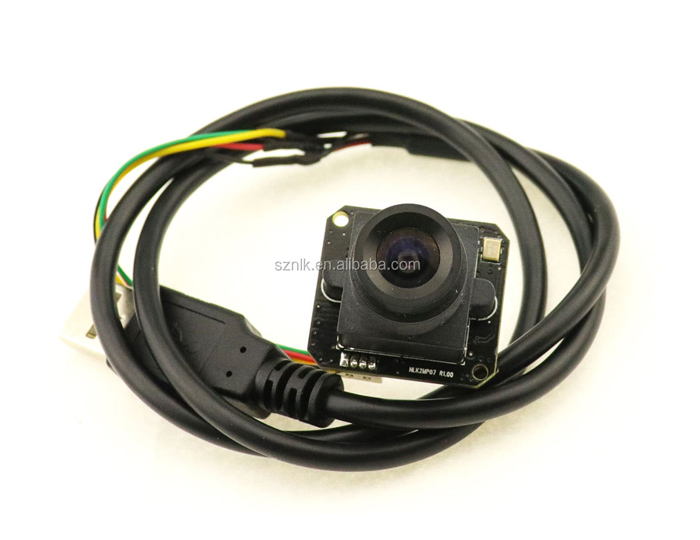

NLK-2MP07 HD 1920*1080 night vision camera module usb
camera module usb

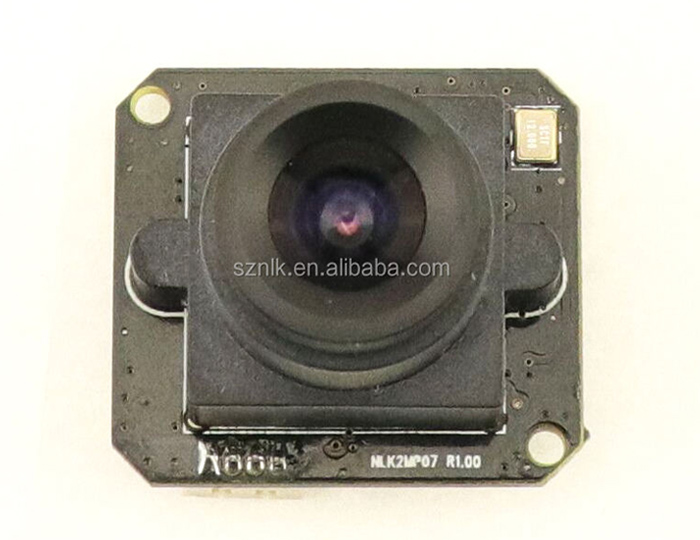

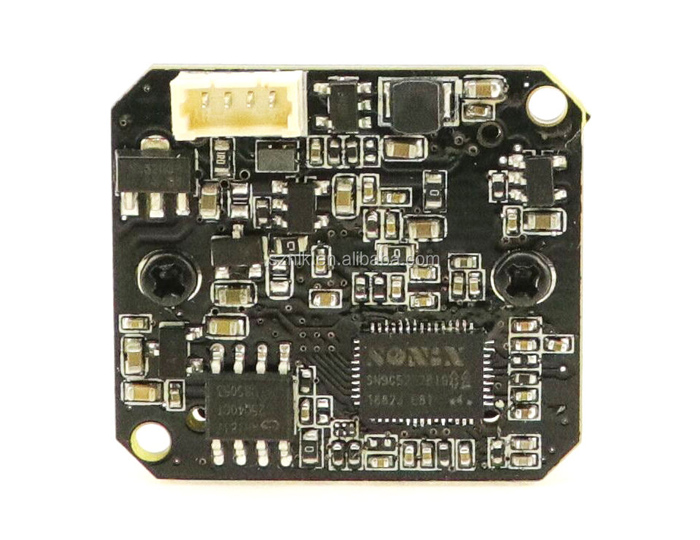

This is the 2 mega pixels camera module (NLKMP07 VER:1.00) is made by Sony IMX291 star level sensor, Low voltage, high performance, supports 1920*1080. Support lens from 60 to 170 degree.It provides full-frame, sub-sampled, windowed or arbitrarily scaled 10-bit images in various formats via the control of the Serial Camera Control Bus(SCCB) interface.
Features
| 1. Sony IMX291 1/2.8” Star level Sensor |
|
2. Support H.264/YUV2/MJPG |
| 3. Supports FULL HD(1920*1080) SXGA ,720P, XGA SVGA,VGA output formats |
| 4. USB Video Class compliant, works with native driver in Microsoft Windows XP 32-bit/64-bit,VISTA 32-bit/64-bit,Windows 7 |
| 5. Auto Exposure (AE). Auto White Balance(AWB) |
| 6. Auto Flicker Correction. Color Correction |
Electric Parameters
| Parameter | SPEC. | |
| Optical size Sensor | 1/2.8 inch COMS sensor | |
| Sensor Resolution | 1920(H) x 1080 (V),1080P | |
| Unit pixel size | 2.9um(H)*2.9um (V) | |
| Color filter | RGB Bayer pattem | |
| Shutter type | Electronic Rolling Shutter | |
| Max.capture frame rate | 30fps@VGA,720p,30fps@1080P | |
| Max. video frame rate | 30fps@VGA, 30fps@1080P(MJPEG/H.264) | |
| View Angle | 105° without distortion | |
| F Number | 2.8mm | |
| AEC / AGC/ White Balance | Auto | |
| Focus Distance | with fixed lens 50CM-∝ | |
| Interface | USB 2.0 | |
| Power | USB Bus Power | |

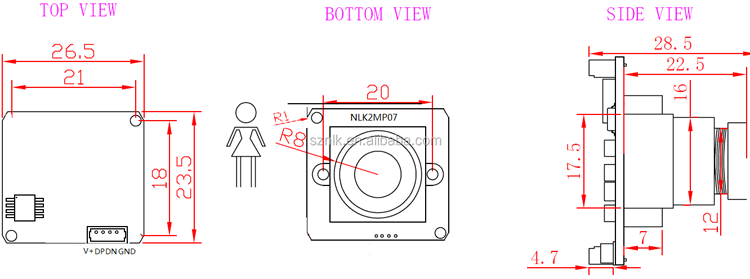

| Dimensions (mm) (L x W x H) | 26mm x 24mm x6.3 +/-0.2mm | |
| Operating Temperature | -10℃to +50°C | |
| Operating System Request | Windows XP/ Windows 7-10(UVC), Linux(>V2.6 ) | |
| Max pixel rate | 28Mp/s | |
| ADC accuracy | 10-bit | |
| USB 2.0 PHY | On Chip PHY | |
| Power Consumption | Standby | 4mA |
| Operating |
210mA+/-10mA @ 1080P |
|
