NLK-2MP08S
Category：-2MP USB WDR camera module
Product specifications：
2. Support YUV2/MJPG
3. Supports high Frame rate, 60fps @FULL HD(1920*1080) SXGA ,720P, XGA SVGA,VGA output formats
4. USB Video Class compliant,UVC free
5. IR-CUT circuit,Brightness, Contrast, Sharpness, Saturation adjustable
6.BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog
High Speed color camera, 60fps color USB camera,AI USB camera
Details

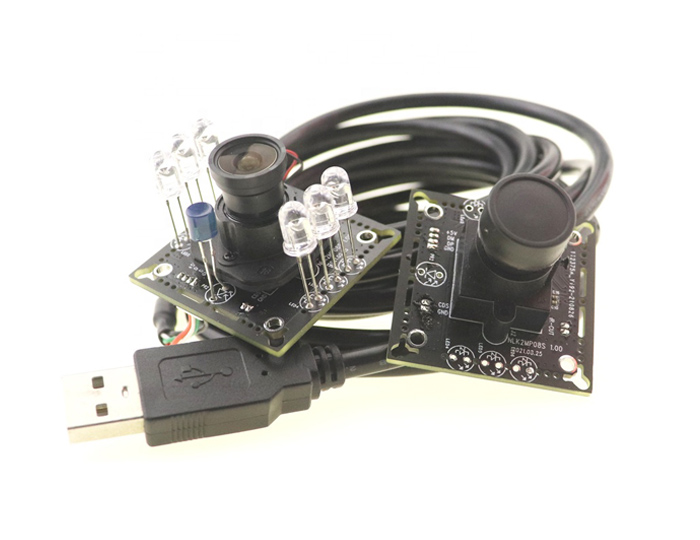

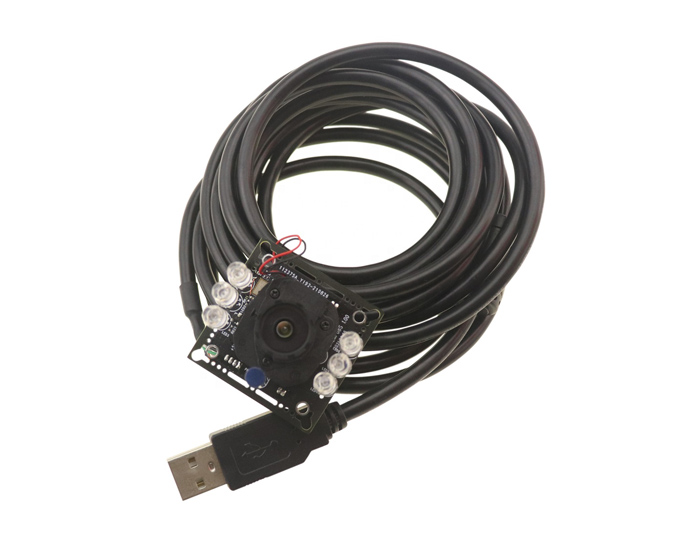

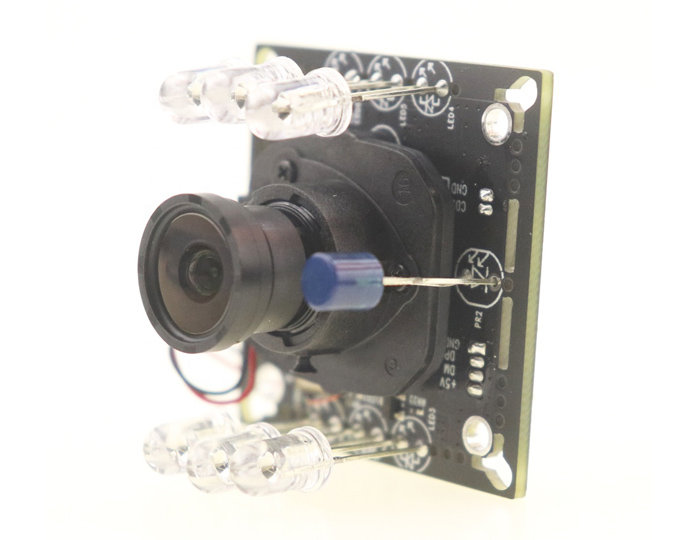

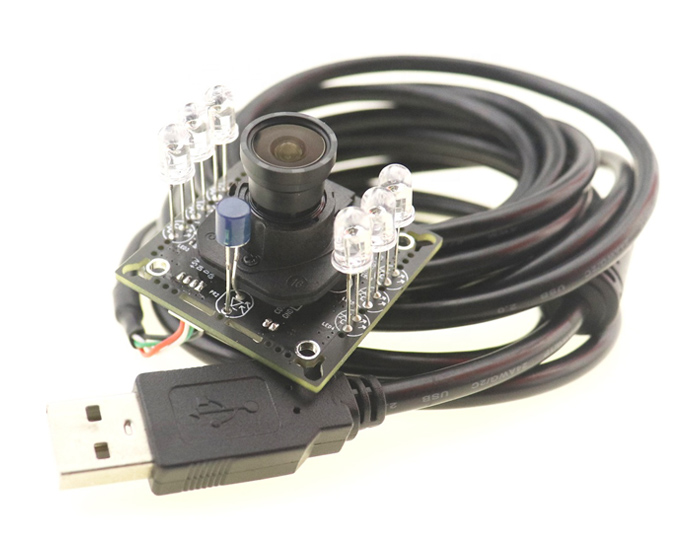

NLK-2MP08S HD 1080P high speed 60fps AI camera CMOS IR night WDR USB camera module
camera module usb
This is the 2 mega pixels camera module (NLK-2MP08S VER:1.00) is made by SC200AI
1/2.8" sensor, Low voltage, high performance, supports 1920*1080 and 60fps. Support lens from 60 to 170 degree.It provides full-frame, mostly use for need high quality field.
Features
| 1· SMARTSENS SC200AI Sensor, 1/2.8 inch 2 Mega |
|
2. Support YUV2/MJPG |
| 3. Supports high Frame rate, 60fps @FULL HD(1920*1080) SXGA ,720P, XGA SVGA,VGA output formats |
| 4. USB Video Class compliant,UVC free |
| 5. IR-CUT circuit,Brightness, Contrast, Sharpness, Saturation adjustable |
| 6.BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog |
Electric Parameters
|
Technical Details |
|
|
SENSOR |
|
|
Sensor |
SMARTSENS SC200AI |
|
Pixels |
2.08M pixels |
|
Resolution |
1920*1080 MAX |
|
Image Size |
1/2.8INCH |
|
Unit Cell Size |
2.9um (H)*2.9um(V) |
|
|
0.24lx |
|
ISP |
|
|
YUY2 Frame Rate |
640*360@50fps / 60fps |
|
MJPG Frame Rate |
1920*1080@50fps /60fps, 1280*720@50fps / 60fps, 640*360@50fps / 60fps |
|
Exposure |
Auto or Manual |
|
White Balance |
Auto or Manual |
|
Shutter |
1/25(1/30)s to 1/50,000s |
|
Slow Shutter |
Coming Soon |
|
Denoising |
2D/3D noise reduction |
|
Image Setting |
Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
|
Image Enhancement |
BLC, Digtal WDR, Defog |
|
Day/Night Switch |
Manual or IR-CUT filter with external trigger |
|
Lens & IR-CUT |
|
|
Lens Mount with IR-cut |
Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16 |
|
Mounting Hole |
2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
|
Interface |
|
|
Connector |
MX1.25*4,USB2.0 Interface |
|
Communication Interface |
USB2.0,UVC Protocol |
|
IR-CUT Control |
IR-CUT motor control, 3.3VDC |
|
Day/Night External Trigger |
3.3VDC to 5VDC compatibility |
|
General |
|
|
Operating Conditions |
-20℃~60℃, Humidity 95% or less, non-condensing |
|
Power Supply and Consumption |
5VDC,1.5W MAX |
|

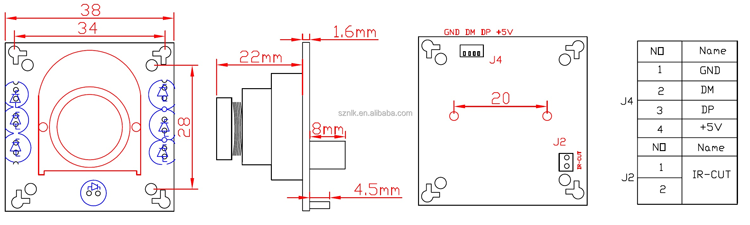

Dimension |
38mm*38mm*10mm(not include lens and lens mount)(32*32mm optional) |
