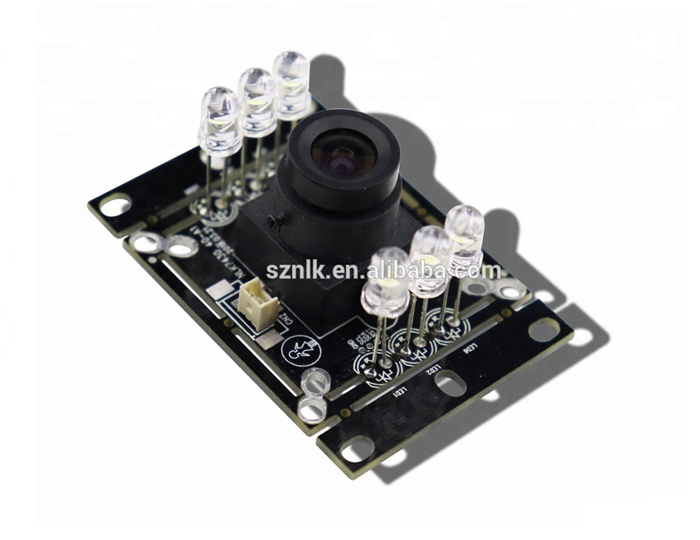

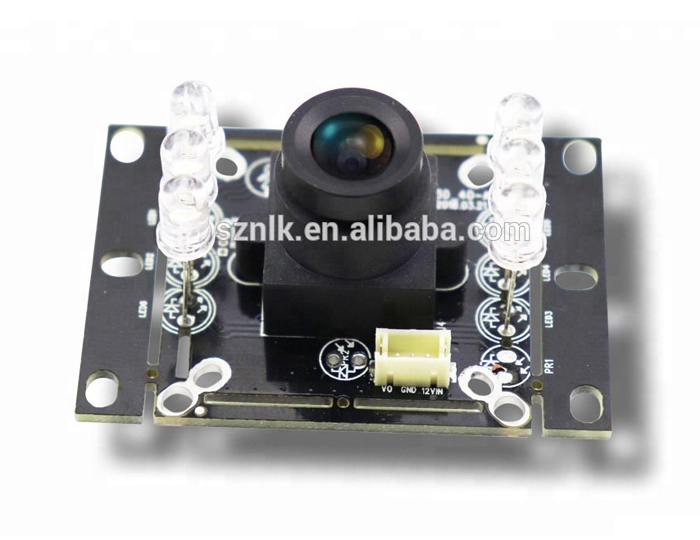

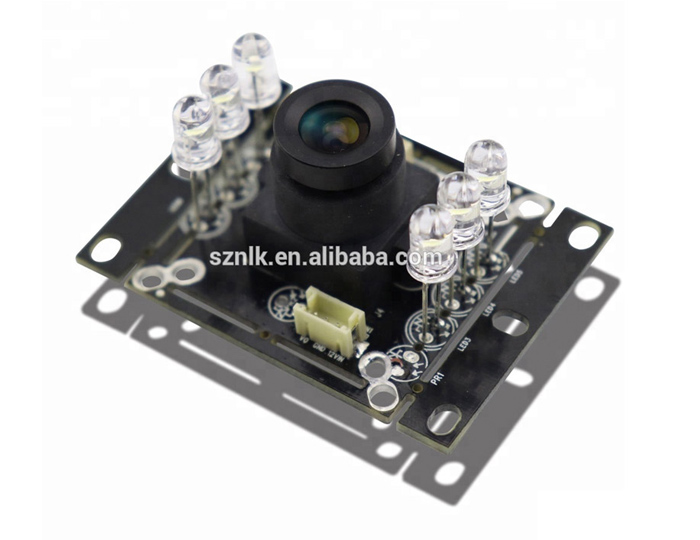

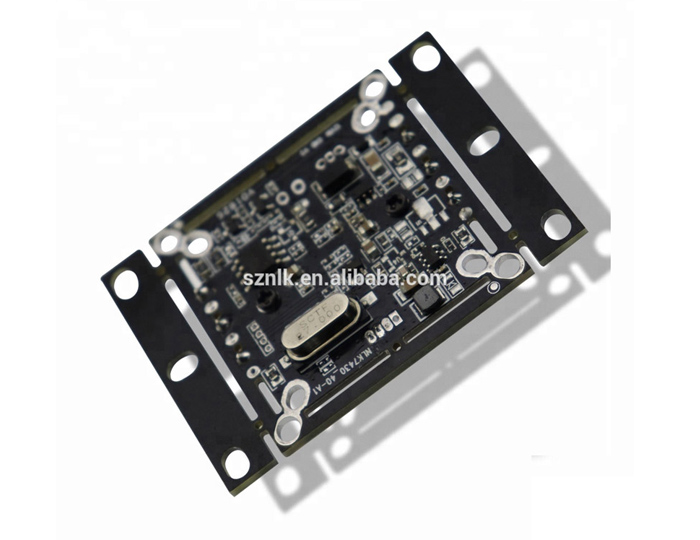

600TVL Auto WDR Backlight CMOS Doorbell Pinhole Board VDR Camera Module
VDR camera Module
PC7440 cheap with good quality CMOS as Sensor

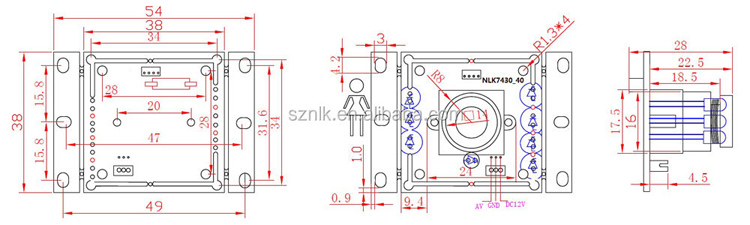

32*32/38*38/38*54 difference size
CVBS output, support PAL and NTSC
ACCEPT OEM and ODM
Electric Parameters
| 1 | Image sensor 1/4"/1/3" inch CMOS |
| 2 | Image format PAL NTSC |
| 3 | Effective pixel 648(H)*488(V V |
| 4 | Sync. mode Built-in Sync Sync |
| 5 | Horizontal pixel 500TVL(4:3 mode mode |
| 6 | Pixel size 5.6um*5 um |
| 7 | SNR: > 60dB (AGC OFF OFF |
| 8 | Min.Lux: 2LUX(F:1.2 F |
| 9 | Exposure system Auto White balance/ Backlight compensation, Auto AGC |
| 10 | Electric shutter 1/25-1 S |
| 11 | Gamma >0 Gamma |
| 12 | Video output 1.0±0.2Vp-p/ 75 ohm |
| 13 | Night version compe 6pcs White or IR LEDs (optional optional |
| 14 | Frame rate 25FPS(PAL)/30FPS(NTSC NTSC |
| 15 | Input voltage +7V~+15V (Typical:DC12V ±25 V |
| 16 | Power DC+12V:Currency is 30mA±5mA ( when 6pcs of white LEDs on, the currency is 60mA±10mA) Support 940nm IR LED |
| 17 | Working temperature -20℃ ~ 60 temperature |
| 18 | Storage Temperature -30℃ Temperature |
| 19 | Humidity 5~95 RH |
| 20 | Lens Parameter Focus length:3.6mm±5 mm |
| 21 | Diagonal line viewing angle:75±10 angle |
| 22 | Focus distance between lens to things: 40cm(close focus distance );1.5M(long focus distance distance |
| 23 |
Relative distortion:<-28.7 distortion |
Intercom Camera, Day/night Camera,IR-LED camera
