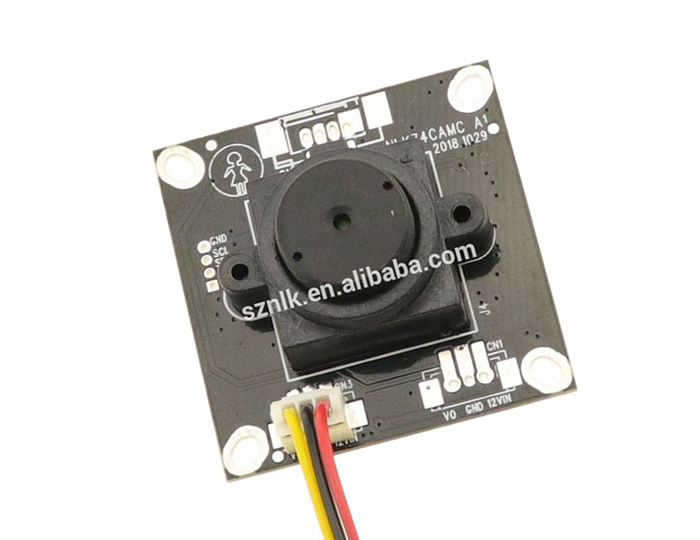

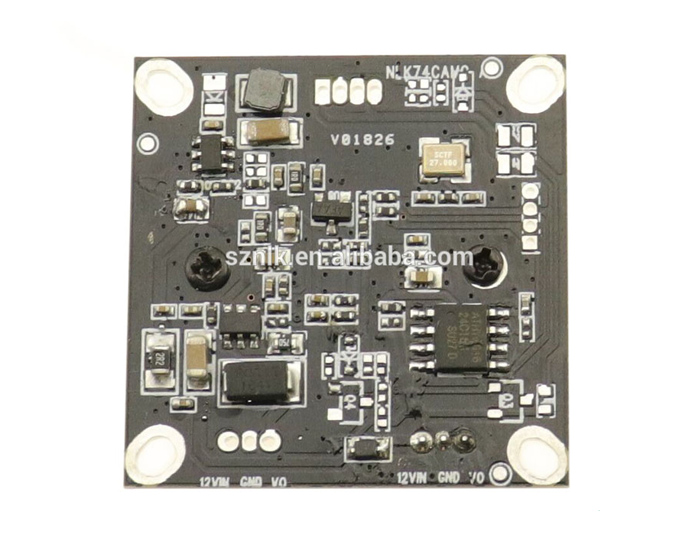

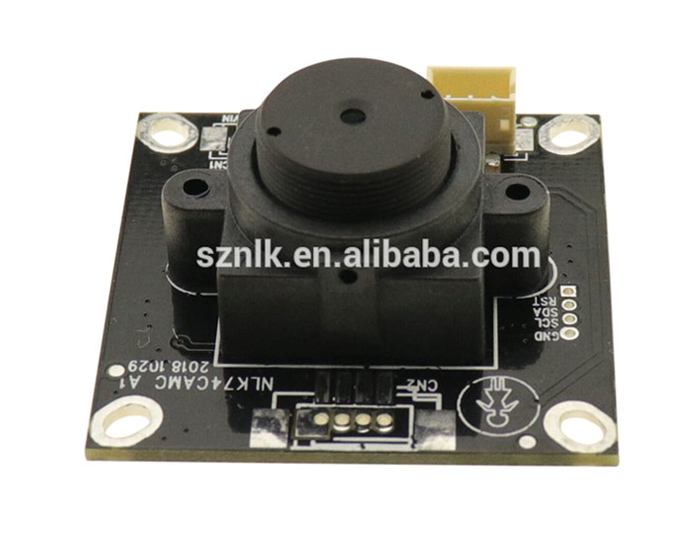

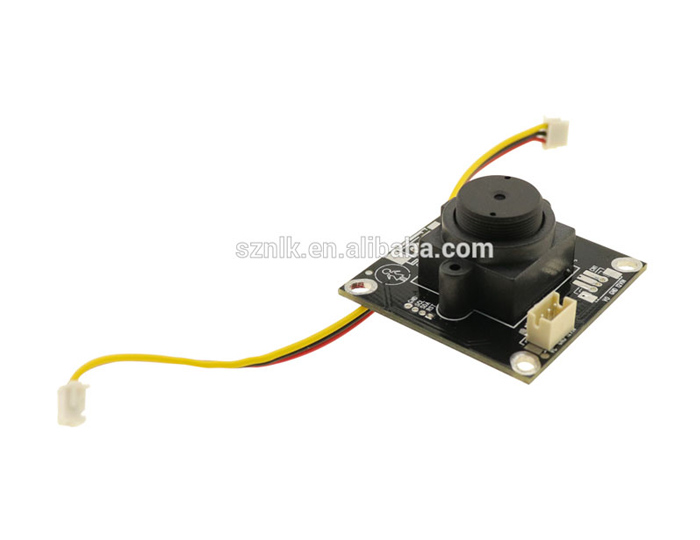

1/3inch Wide Angle CMOS Custom Design Video Door Pinhole Camera Oem Module
pinhole camera oem module
Features

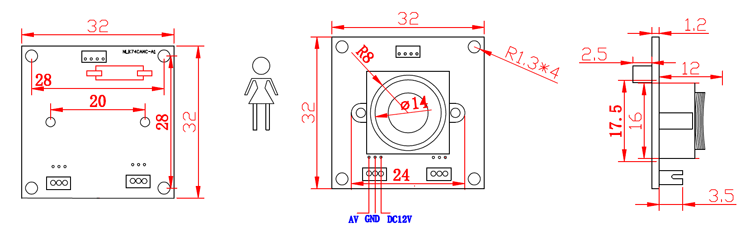

Support 38*54/38*38/32*32
Support PAL and NTSC
Wide angle without distortion
SMD crystal easy to assemble
32*32/38*38/38*54 difference size
ACCEPT OEM and ODM
Application Area
Video Door Phone and Intercom Machine
Normal Security Products
Electric Parameters
| No. | Items | Parameter description |
| 1 | Image sensor | 1/3inch CMOS |
| 2 | Image format | PAL,NTSC |
| 3 | Effective pixel | 733(H)*493(V) |
| 4 | Sync. mode | Built-in Sync. |
| 5 | Horizontal pixel | 500TVL(4:3 mode) |
| 6 | Pixel size | 6.35um(H)*7.4um(V) |
| 7 | SNR | > 60dB (AGC OFF) |
| 8 | Min.Lux | 2LUX(F:1.2) without LED |
| 9 | Exposure system | Auto White balance/ Backlight compensation, Auto AGC |
| 10 | Electric shutter | 1/25-1/12000S |
| 11 | Gamma | >0.45 |
| 12 | Video output | 1.0±0.2Vp-p/ 75 ohm |
| 13 | Night version compe | (optional) |
| 14 | Frame rate | 25FPS(PAL)/30FPS(NTSC) |
| 15 | Input voltage | +7V~+15V (Typical:DC12V ±25%) |
| 16 | Power | DC+12V:Currency is 50mA±5mA |
| 17 | Working temperature | -20℃ ~ 60 ℃ |
| 18 | Storage Temperature | -30℃ ~ 80℃ |
| 29 | Humidity | 5~95% RH |
| 20 | Lens Parameter | Focus length:3.7mm±5% |
| Diagonal line viewing angle:75°±5% | ||
| Focus distance between lens to things: 40cm(close focus distance );1.5M(long focus distance) | ||
|
Relative distortion:<10% |
