Model

Parameters

       NLK335-M

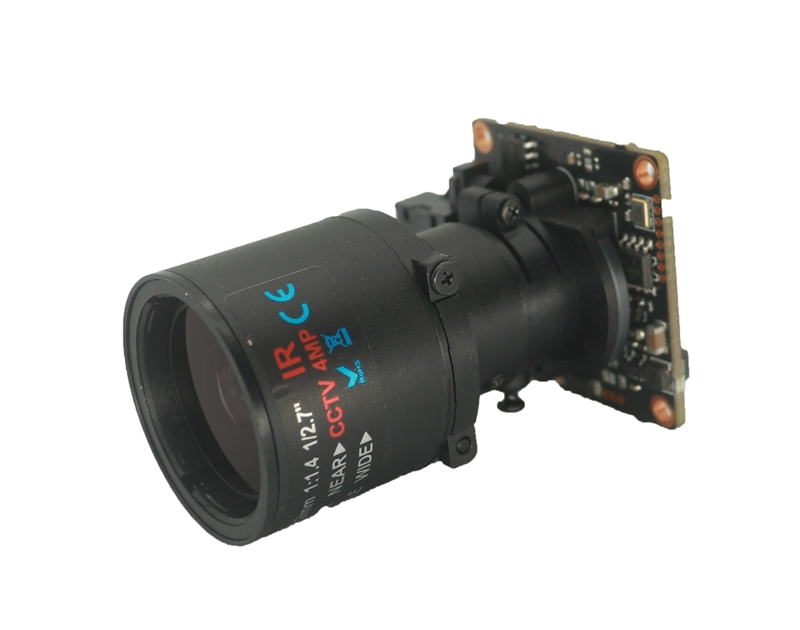

5MP 4in1 Coaxial HD Security camera module

Module parameters

Sensor type

1/2.8＂　IMX335LQD+FH8538M

System format

PAL/NTSC

Pixel

2560(H)x1920(V)5MP, 2560(H)x1440(V)4MP,

Min.lux

0.001Lux@(F1.2,AGC ON)，0LUX with IR

Shutter

AUTO

Day/night

External control（Default）/Sync./Color/B&W.

Sync. mode

Built-in Sync.

Frame rate

5MP@20/12.5FPS,4mp/25/30/15fps         1080P@25fps / 30fps

Video output

AHD/TVI/CVI/CVBS  switchable

Menu control

Lens

2.8-12MM Manual zoom lens

Exposure

BLC/GLobal

BLC mode

Off/BLC/HLC

White Balance

Auto trace white balance/Manual model

Day/Night

External/Internal/Color/B&W


Contrast/Sharpness/Tint/3D DNR

Video setting

Coaxial HD format/D-WDR/Video format

Reset factory setting

Exit

Save&exit/ Reset/Not save

Language

中文简体/中文繁体/Fench/Italian/Spanish/Polish/Russian/Portuguese/English/Japanish

Normal Parameters

Working Temp.

-20℃  to  60℃

Working Humi.

<90 %

Power-Current

DC12V(±20%)  - 90MA

Size

38*38*53mm with 2.8-12MM lens
