NLK-F23
Category：-AHD &CVBS for Security
Product specifications：
2. 4 in 1 output (AHD/TVI/CVI/CVBS)
3. With FH8536 processor
4.With OSD functio, change PAL/NTSC by menu
5.Support 10 languages and single-pin cable to control OSD menu
6.UTC,IO switch and Mirror are optional
7.With IR-cut for day and night
8.Crystal SMD3225, working stable even high temp
CCTV camera board, 2MP Security Camera board,Night camera board
Details

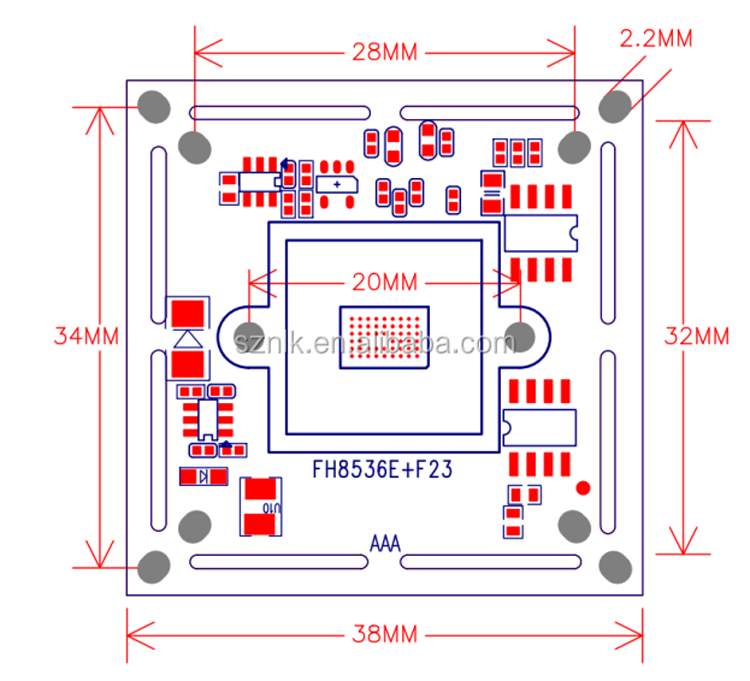

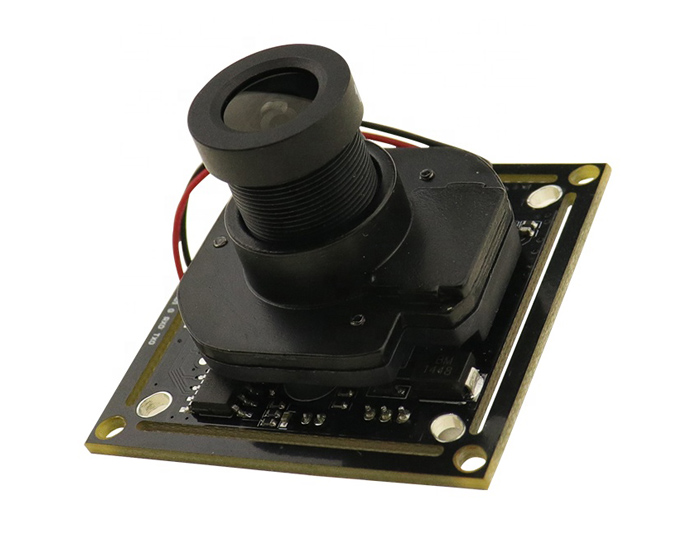

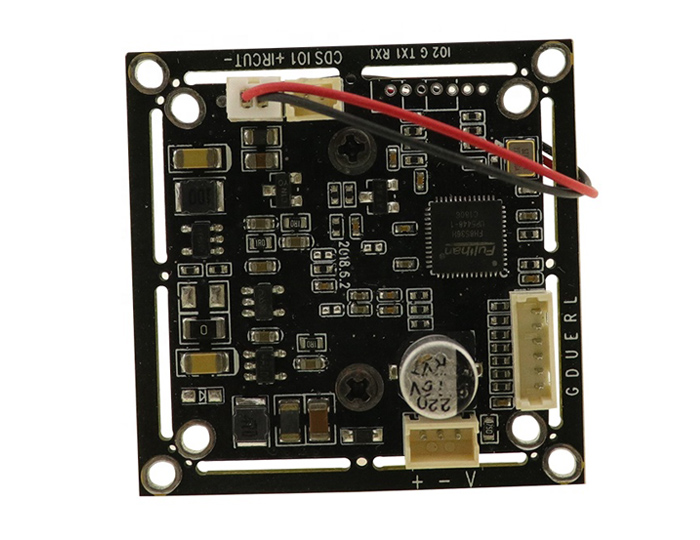

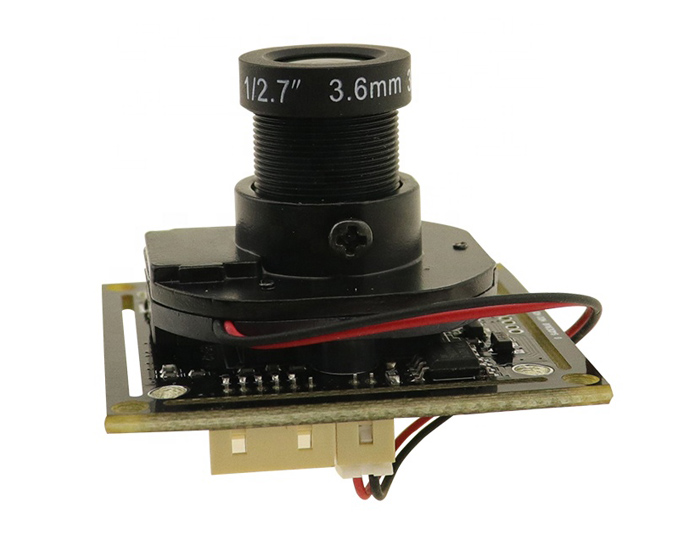

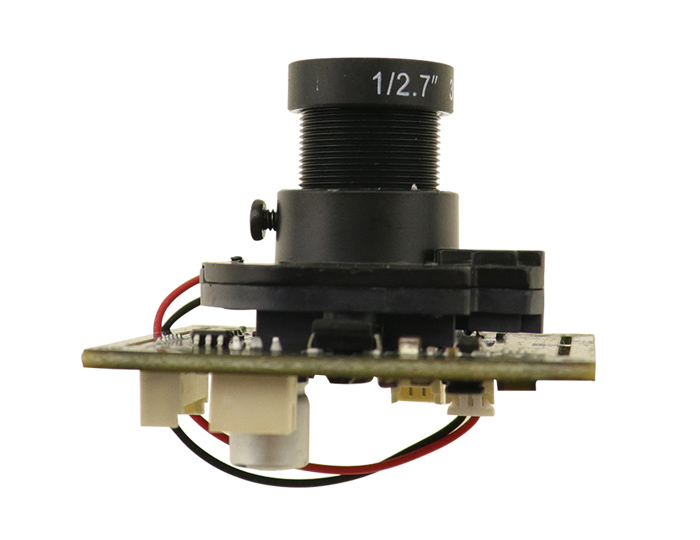

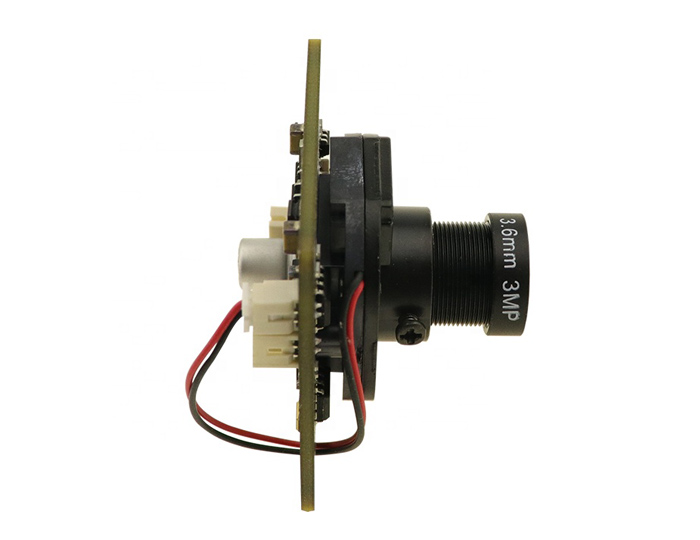

COMS JX-F23 1 4 in 1 output smart security cctv pcb board camera
cctv pcb board camera
Application Area
Video Door Phone and Intercom Machine
Normal Security Products
Features
| 1. Reset IC, make sure 100% video output after restart |
|
2. 4 in 1 output (AHD/TVI/CVI/CVBS) |
| 3. With FH8536 processor |
| 4.With OSD functio, change PAL/NTSC by menu |
| 5.Support 10 languages and single-pin cable to control OSD menu |
| 6.UTC,IO switch and Mirror are optional |
| 7.With IR-cut for day and night |
| 8.Crystal SMD3225, working stable even high temp |
Electric Parameters
| Pin. | Name | Units | Parameters |
| 1 | Sensor | COMS JX-F23 1/2.9+ FH8536E DSP | |
| 2 | Effective pixel | PIXELS | 1920H*1080V |
| 3 | Video system | PAL – 25pfs / NTSC– 30pfs | |
| 4 | Exposure model | Global exposure,Backlight compensation | |
| 5 | Output image format | AHD(default)/CVI/TVI/CVBS | |
| 6 | S/N rate | dB | >55dB |
| 7 | Min. Illumination | LUX | 0.01Lux |
| 8 | Electric Shutter | Automatically 1/50 (1/60)~1/10000s | |
| 9 | White Blance | Auto/manual | |
| 10 | Video output standard | 1.0Vp-p,75ohm | |
| 11 | UTC/ Mirror image | Optional | |
| 12 | IR-CUT control | External control(by default)/internal control | |
| 13 | Power | DC6V-18V | |
| 14 | Electric current | 40mA(DC12V) | |
| 15 | Storage temperature | ℃ |
-20~60℃ |
