NLK-K05
Category：-AHD &CVBS for Security
Product specifications：
3. With FH8538M image processor; 4in1 output mode: AHD / CVI / TVI / Analog; supporting 4MP real time and unreal time output, 5mp unreal time output.
4. Multiple-unit power supply in the module to protect the sensor from the unstable power
5. Supporting switching output mode by double / single IO cable
6. Support NTSC/PAL switch by menu;
7. ...
5MP 4in1 Camera, PCBA camera board,Assembly camera board
Details

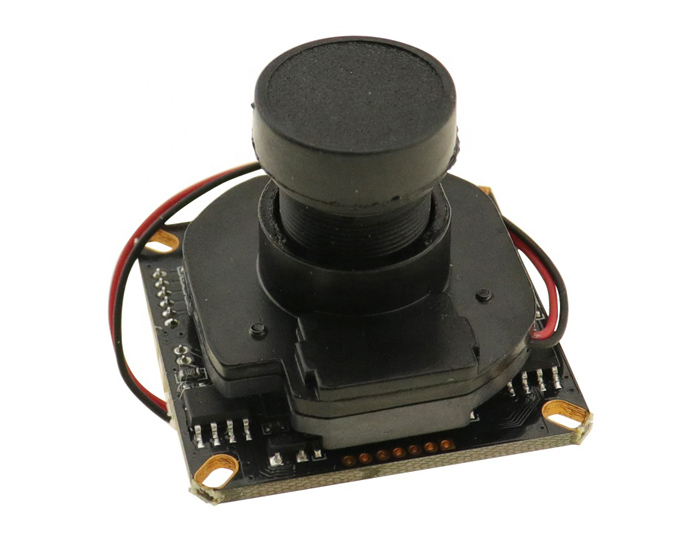

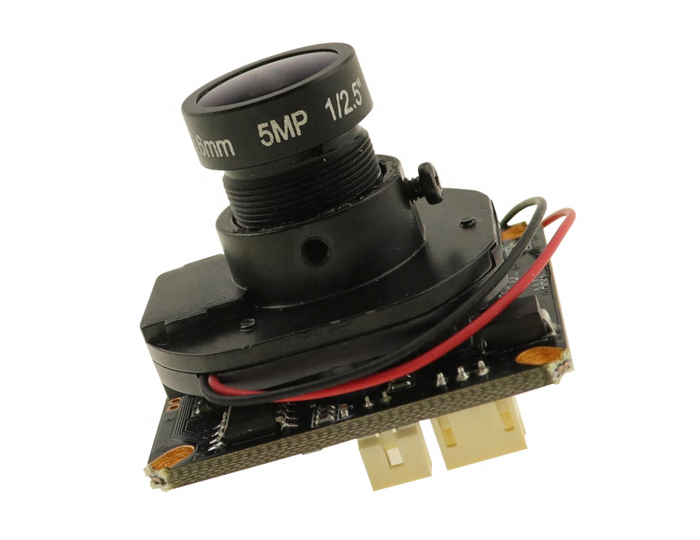

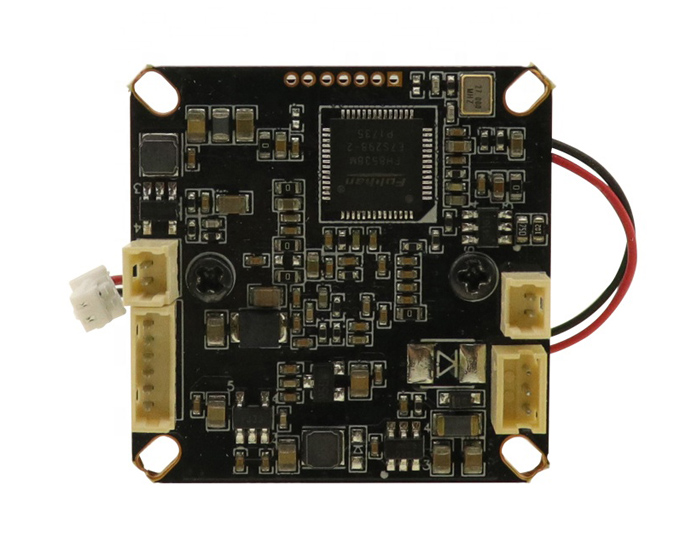

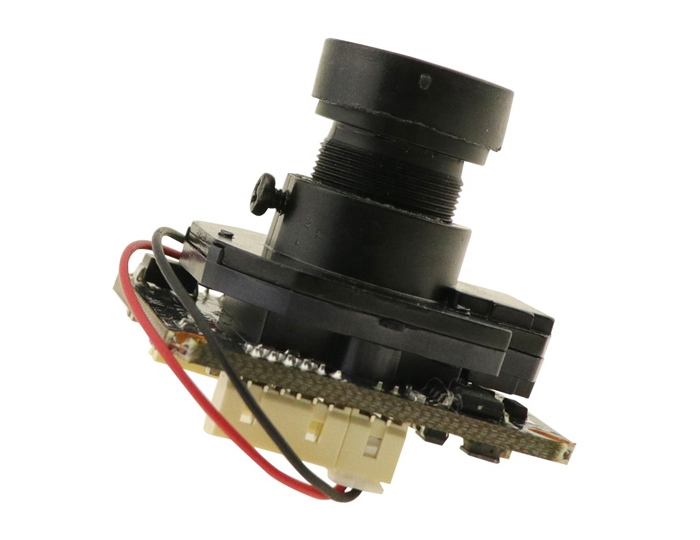

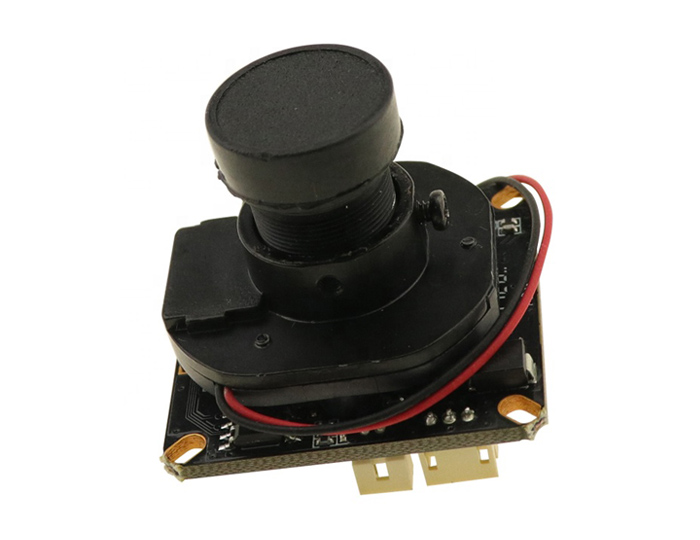

CCTV Camera Assembly Parts Nlk-5510 Assembly CCTV Board Camera Board For Security Camera
assembly CCTV board camera
Features
| 1. COMS Primesensor PS5510 is the sensor with 5M pixels, the resolution is 2592 (H) × 1944 (V); |
|
2. SENSOR size is 1/ 2.5 inch; |
| 3. With FH8538M image processor; 4in1 output mode: AHD / CVI / TVI / Analog; supporting 4MP real time and unreal time output, 5mp unreal time output. |
| 4. Multiple-unit power supply in the module to protect the sensor from the unstable power |
| 5. Supporting switching output mode by double / single IO cable |
| 6. Support NTSC/PAL switch by menu; |
| 7. UTC function by default, adjust the PCB menu by DVR easily |
| 8. SMT by Environmental protection lead-free process |
| 9. 6000Vlightning protection design |
| 10. OSP PCBA, size: 32*38 |
Main Parameters
| Pin. | Name | Units | Parameters |
| 1 | Sensor | 1/2.5” PS5510 CMOS | |
| 2 | Effective pixel | PIXELS | 4MP real time/5MP |
| 3 | Video system | PAL:4MP/25fps(default) | |
| /NTSC:30fps by (default) | |||
| 4 | Horizontal Pixel | 5MP | |
| 5 | Output image format | AHD(default)/CVI/TVI/CVBS | |
| 6 | S/N rate | dB | >58dB |
| 7 | Min. Illumination | LUX | 0.01Lux |
| 8 | Electric Shutter | Automatically | |
| 9 | Noise Reduction mode | 2DNR/YNR | |
| 10 | Video output standard | 1.0Vp-p,75ohm | |
| 11 | D-WDR function | support | |
| 12 | IR-CUT control | External control(by default)/internal control | |
| 13 | Power | DC7V-16V | |
| 14 | Support image control | Auto AGC, Auto White balance, AEC | |
| 15 | Electric current | 60mA(DC12V) | |
| 18 | Storage temperature | ℃ | -20~65℃ |
| 19 | Working Temperature | ℃ |
-10 ~ +60℃ |
