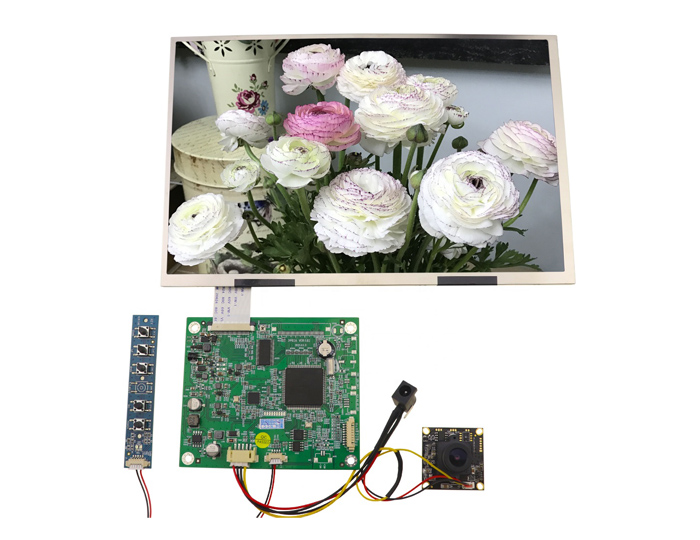

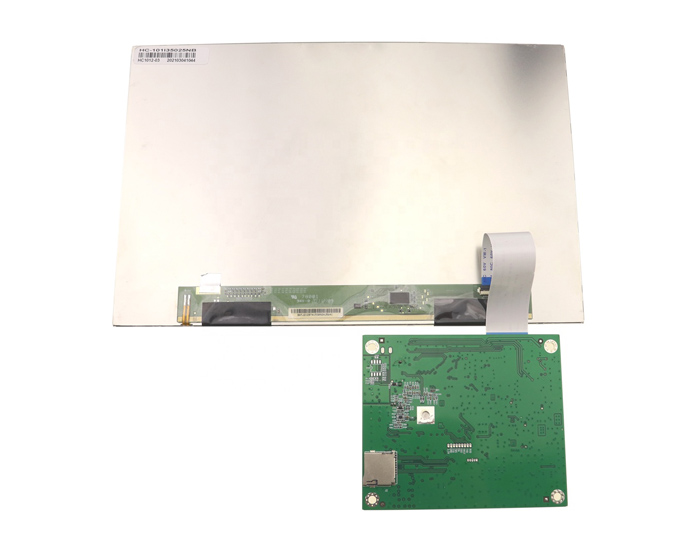

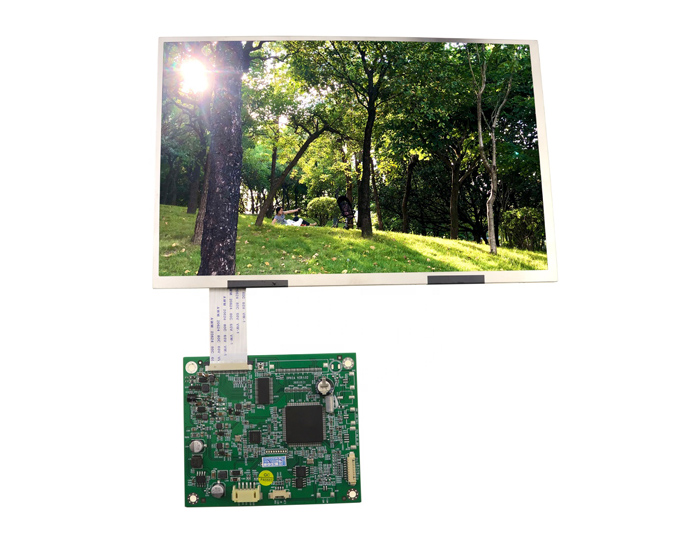

Industrial 1080P AHD 10.1inch 1280*800 LVDS memory video record LCD display module
inspection LCD controller
1,NLKAHD DP02-10.1”display module,Support 720P CVBS and 1080P-AHD signal format. Image cache to make the stable image result without flike. With video and photo records function. Support AV1/AV2 channel. Support TTL and LVDS interface. Mainly applying for equipment which need high-level image result.

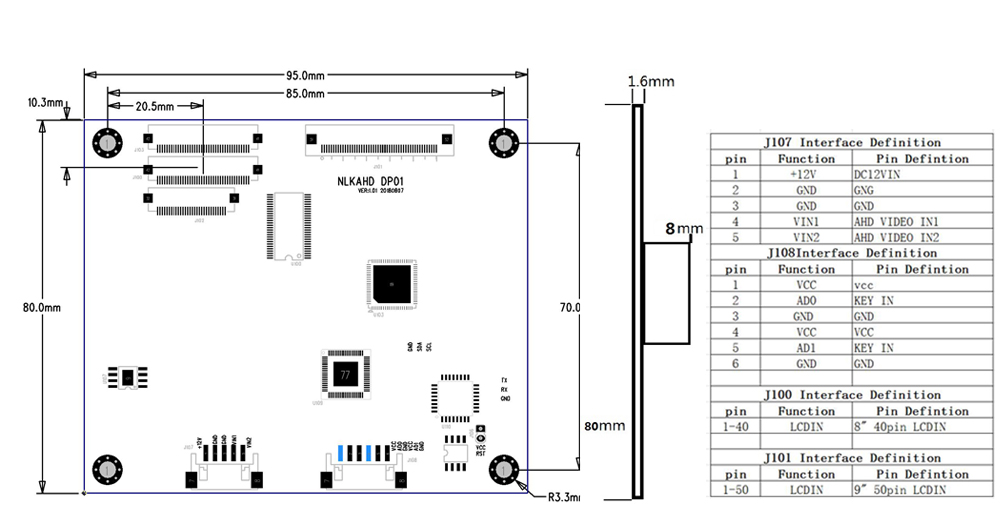

2,Structural drawing and definition for connectors:
|
No. |
Item |
Parameter |
Remark |
|
1 |
LCD size |
10.1” LVDS 40pin |
|
|
2 |
LCD pixel |
1280 × 3(RGB) × 800
|
|
|
3 |
Display ratio |
16:9 |
|
|
4 |
Backlight |
LED |
|
|
5 |
Brightness |
180-230CD/M2 |
|
|
6 |
Viewing angle |
85/85/85/85(up/down/left/right) |
|
|
7 |
Brightness |
350cd/M2 |
|
|
8 |
LCD outline size |
229.46(W) ×149.1(H) ×2.50(D) mm
|
|
|
9 |
Display active size |
216.96(W) × 135.60(H) mm
|
|
|
10 |
Driver board size |
95(w)*81(H) mm*9.6(D)mm |
|
|
11
|
Input signal |
2 Channel CVBS,AHD:720P 25-30FPS |
|
|
12 |
TF card |
Support ≤128GB |
Support CLASS10 above |
|
13 |
Video/photo format |
photo-MJPG, video-AVI |
|
|
14 |
Timing memory |
Memory time continuous>100 hours after power off |
|
|
15 |
Menu language |
Chinese/English |
|
|

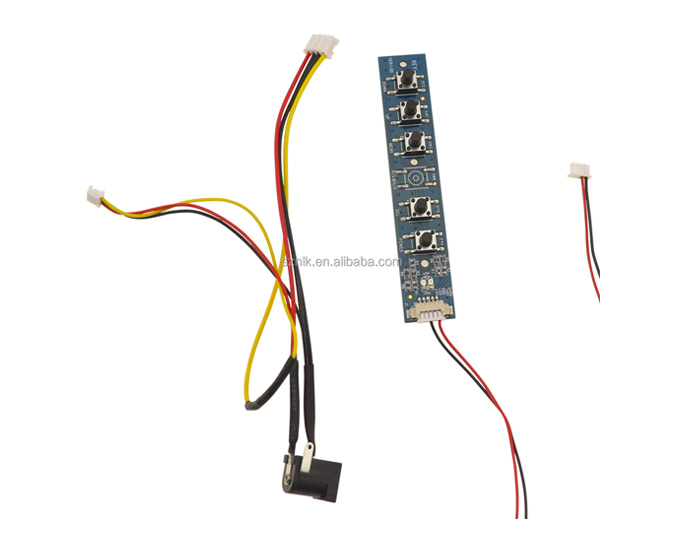

16 14
|
Menu mode |
Keyboard |
|
|
17 |
Start time |
<3S |
|
|
18 |
Image frame |
25FPS(PAL)/30FPS(NTSC) |
|
|
19 |
Input voltage |
+8V~+18V (Typical: DC12V) |
|
|
20 |
Power supply |
10.1”LCD=5.4W±10%,Current=450mA |
|
|
21 |
Working tempr. |
-20℃ ~ 60 ℃ |
|
|
22 |
Storage tempr. |
-30℃ ~ 70℃ |
|
|
23 |
Humidity |
5~95% RH |
|
