Small 7inch AHD USB LCD Inverter Controller board Universal for Adverting Skin Tester Monitor
8inch AHD Controller Board

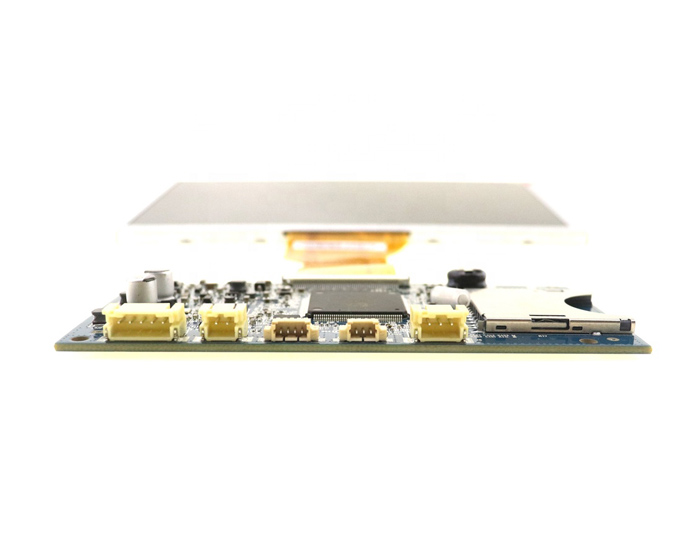

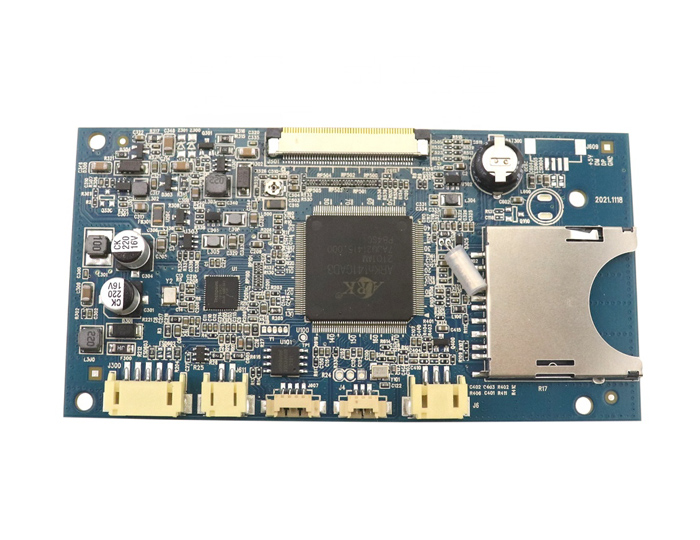

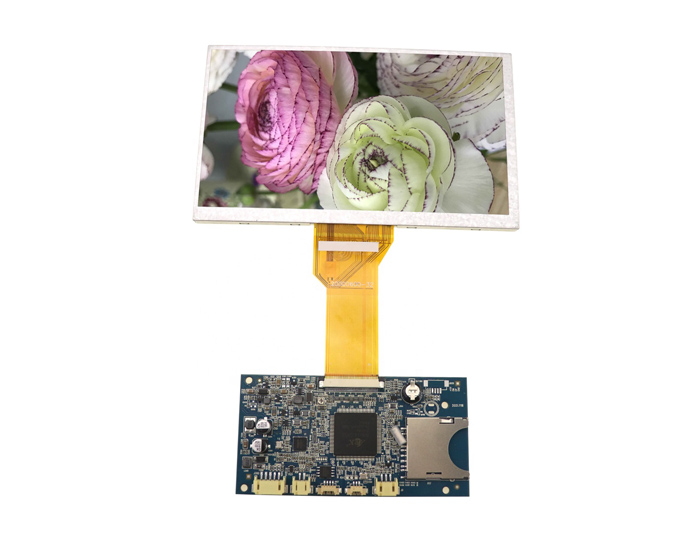

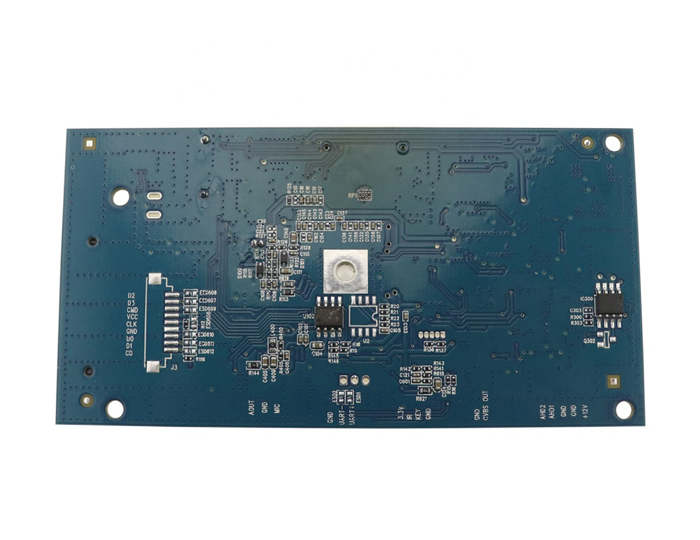

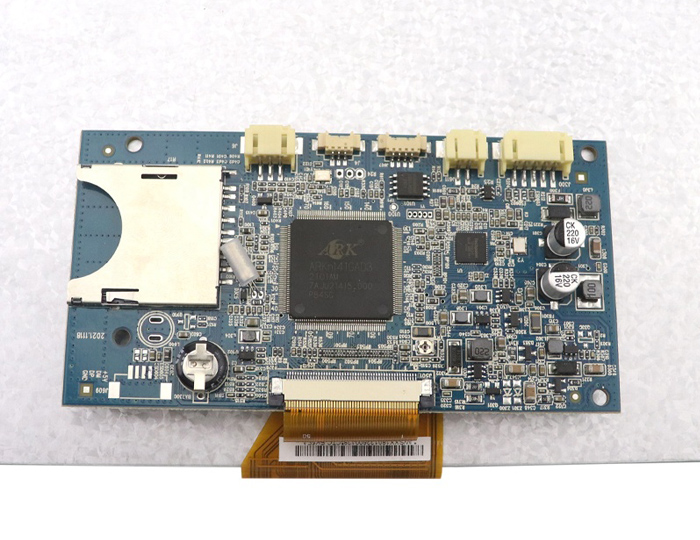

NLK-DG567AT-5”/7”display module,support HD resolution (720P,1080P)AHD video format, use Keyboard to adjust parameters, Good image display, Support Audio&Video Memory and Capture photo, Time display recording and etc. This product mainly applying for inspector and industrial monitor and video door phone & Intercom which need HD display.
Features:
lSupport 1080P/720P AHD camera
lSupport USB camera board
lSupport Memory function Max=64GB
lSupport Video/Audio recording
lSupport capture photo
lCompetitive price
Electric Parameters:
|
No. |
Items |
Parameters |
Remark |
|
1 |
LCD |
50Pin-Fpc,24Bit RGB(7inch) |
optional |
|
2 |
Resolution |
Support 640*480,800*480,1024*600 |
|
|
3 |
Display size |
164.9(w)×100(h)×5.7(D)mm(7inch) |
|
|
4 |
Active size |
154.2144(W)×85.92(H)mm |
|
|
5 |
Backlight type |
LED,POWER≤3W |
|
|
6 |
Contrast rate |
500 |
|
|
7 |
Brightness |
450cd/M2 |
|
|
8 |
Driver board size |
108(w)*56(H) mm*9.6(D)mm |
|
|
9 |
Support input signal |
AHD:720P/1080p25-30(Auto),2AHD Channel,SD card memory, MJPG/AVI(Max: 64GB),USB input. |
|
|
10 |
Menu language |
English/Chinese Time display record |
|
|
11 |
Menu control |
Button key |
Optional |
|
12 14
|
Start time |
< 2s |
|
|
13 |
Frame rate |
25FPS(PAL)/30FPS(NTSC) |
|
|
14 |
Input voltage |
+8V~+18V (Typical: DC12V) |
|
|
15 |
Power Consumer |
5”=3Watt+/-5%,7”=3.6Watt+/-5% |
|
|
16 |
Working Temp. |
-20℃ ~ 60 ℃ |
|
|
17 |
Storage Temp. |
-30℃ ~ 70℃ |
|
|
18 |
Humidity Temp. |
5~95% RH |
|
