Image sensor

1/2.9 〞F23 CMOS (ISP:FH8536H)

Signal system

PAL/NTSC

Effective resolution

1920(H)*1080(V)

Frame

CVBS-PAL-NTSC/1080P@25fps-30fps

Sync.system

Built-in Sync.

Min. Lux

0.01Lux@(F1.2,AGC ON)，0LUX with IR

Horizontal resolution

800TVL-CVBS

White balance

Auto white balance

Electronic shutter

Auto

IR-CUT

IR-cut and IR-LED(optional)

CVBS output

AHD/TVI/CVI/CVBS

OSD Menu

ENGLISH/中文/ESPANOL/FRANCAIS/繁体中文/Pyccknn/ITALIANO/EAAHNIKA/POLSKI/Portugues

OSD operation

Switches: up-AHD  down-CVI  left-TVI  right-CVBS（Press 5s then to switch）

OSD function

Exposure/White balance/Day-night mode/Contrast/DNR/Digital WDR

Working voltage

Standard=DC12V-(70mA)

Working temperature

-20℃~ to +60℃ RH85℅

Size

32*32/38*38(mm)

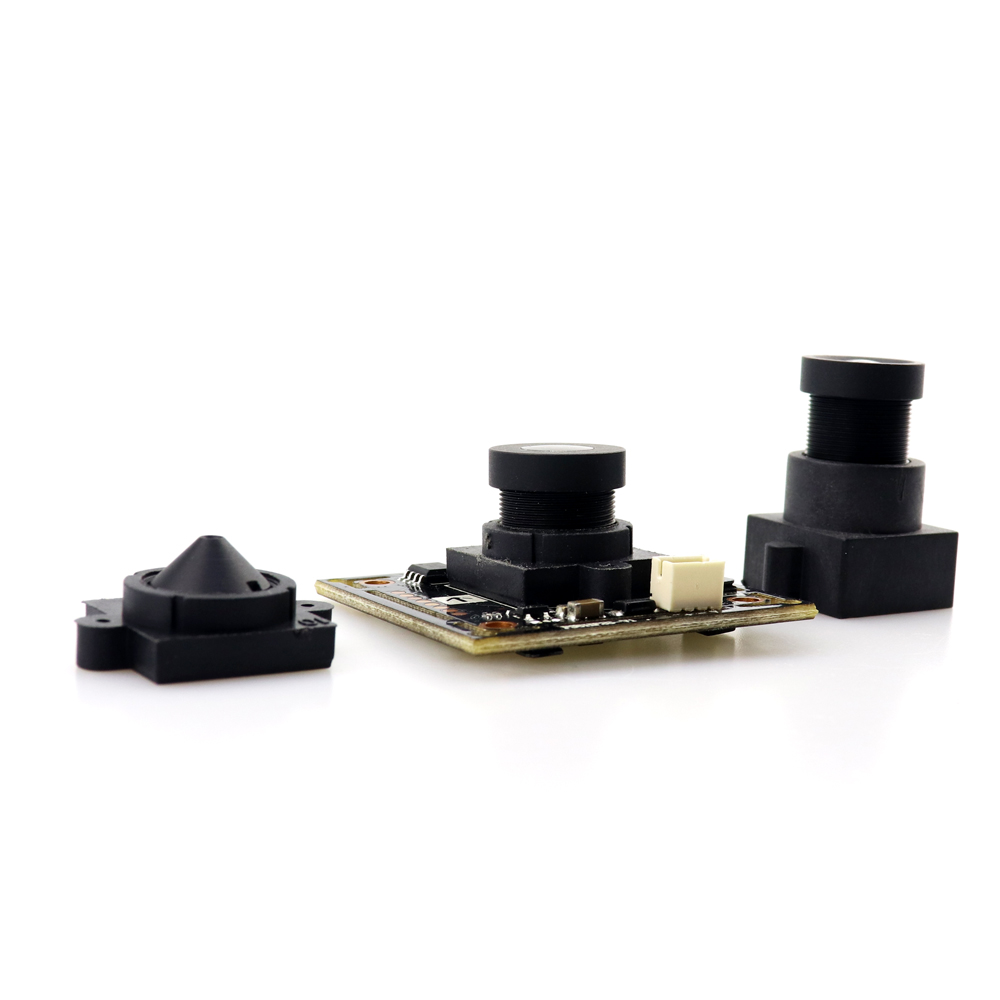

Lens

2.1mm=150degree
