NLK-2MP09
Category：-2MP USB WDR camera module
Product specifications：
Support Built-in ISP IR-CUT
USB2.0 Interface,USB Video Class(UVC)
Support YUY2 / MJPG / H.264
Support lens angle from 60 to 170 degree
BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog
Brightness, Contrast, Sharpness, Saturation adjustable
IMX307 Starvis Wide angle Camera
Details

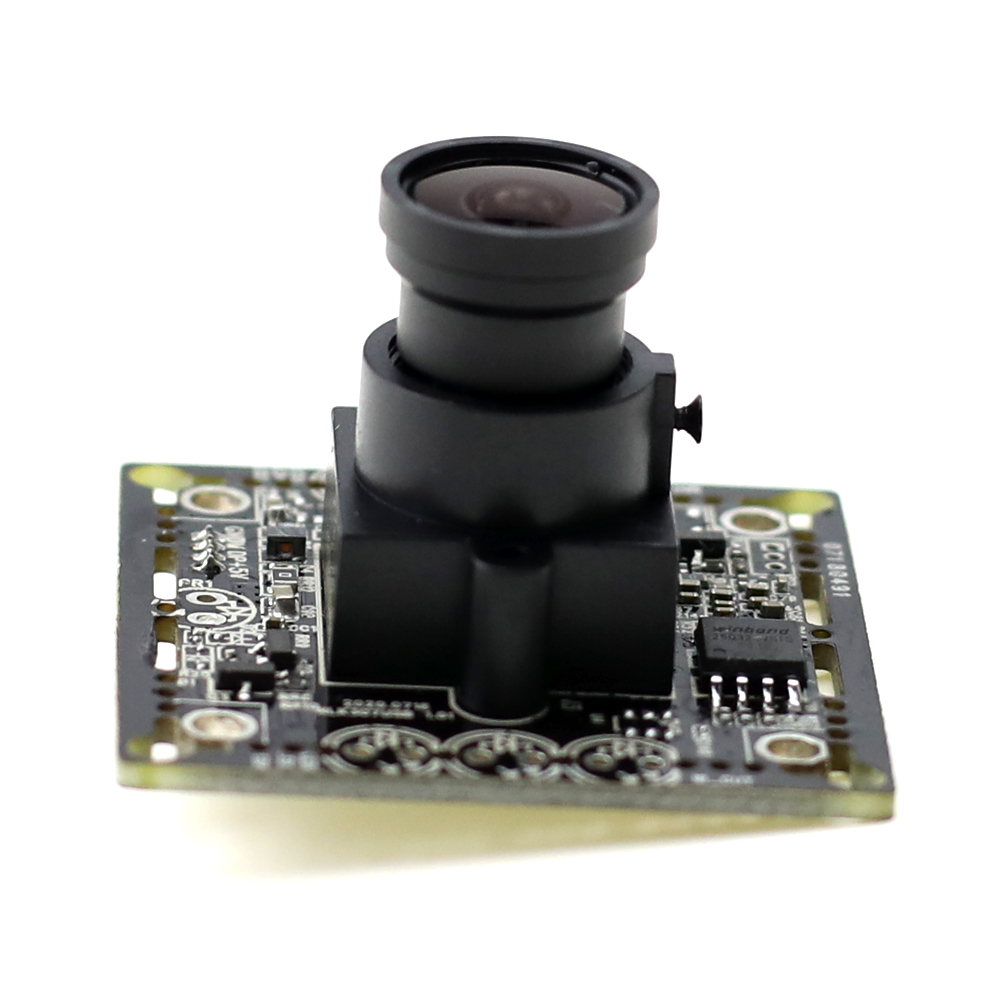

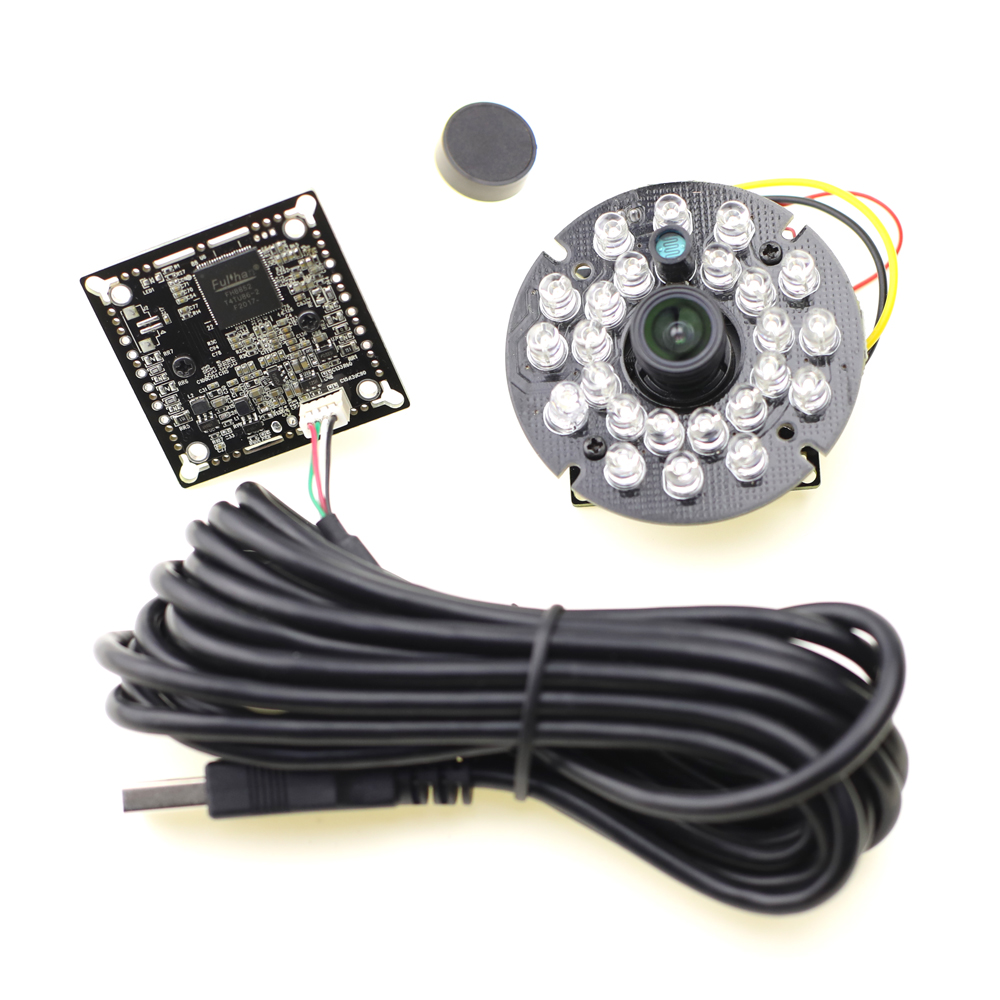

1/2.7" IMX307 1080P Starlight CCTV camera board darkfighter Wide Angle 2.1mm USB Camera module
Camera Modul
Features
· SONY IMX307 STARVIS Sensor, 1/2.8 inch 2 Mega
· Built-in ISP processing
· USB2.0 Interface,USB Video Class(UVC)
· Data fromat : YUY2 / MJPG / H.264
· Standard lens mount
· IR-CUT circuit
· BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog
· Brightness, Contrast, Sharpness, Saturation adjustable
Applications
l Industrial Computer l
l Machine Vision, AI l
l Smart Home l
l ADAS
Why Use H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems,
Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Electric Parameters
|
Technical Details |
|
|
SENSOR |
|
|
Sensor |
SONY IMX307LQD-C STARVIS |
|
Pixels |
2.07M pixels |
|
Resolution |
1920*1080 MAX |
|
Image Size |
Diagonal 6.46 mm (Type 1/2.8) |
|
Unit Cell Size |
2.9um (H)*2.9um(V) |
|
|
0.24lx |
|
ISP |
|
|
YUY2 Frame Rate |
640*360@25fps / 30fps |
|
MJPG Frame Rate |
1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps |
|
H.264 Frame Rate |
1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps |
|
Exposure |
Auto or Manual |
|
White Balance |
Auto or Manual |
|
Shutter |
1/25(1/30)s to 1/50,000s |
|
Slow Shutter |
Coming Soon |
|
Denoising |
2D/3D noise reduction |
|
Image Setting |
Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
|
Image Enhancement |
BLC, Digtal WDR, Defog |
|
Day/Night Switch |
Manual or IR-CUT filter with external trigger |
|
Lens & IR-CUT |
|
|
Lens Mount with IR-cut |
Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16 |
|

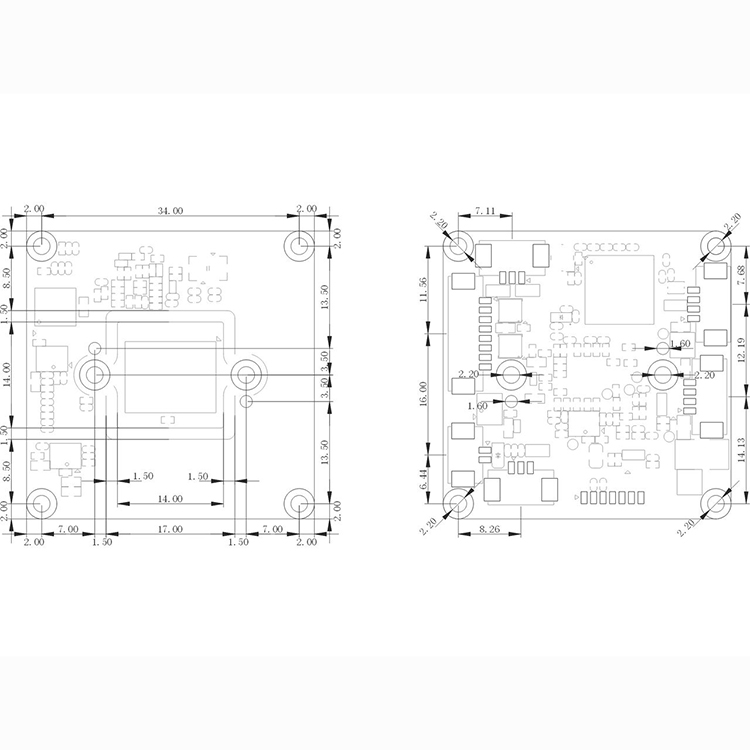

Mounting Hole |
2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
|
Interface |
|
|
Connector |
MX1.25*4,USB2.0 Interface |
|
Communication Interface |
USB2.0,UVC Protocol |
|
IR-CUT Control |
IR-CUT motor control, 3.3VDC |
|
Day/Night External Trigger |
3.3VDC to 5VDC compatibility |
|
General |
|
|
Operating Conditions |
-10℃~60℃, Humidity 95% or less, non-condensing |
|
Power Supply and Consumption |
5VDC,1.5W MAX |
|
Dimension |
38mm*38mm*10mm(not include lens and lens mount) |
