NLK-8MP03
Category：-8MP AF&Fixed Lens
Product specifications：
1/2.8 inch 8 Mega
Built-in ISP processing
USB2.0 Interface,USB Video Class(UVC)
Support YUY2 / MJPG
Support lens mount
IR-CUT circuit
Featured
BLC, Digtal WDR, 2D noise reduction, Anti-fog
Support Brightness, Contrast, Sharpness, Saturation adjustable
8MP USB Camera, 4K Auto Focus, 4K Camera
Details

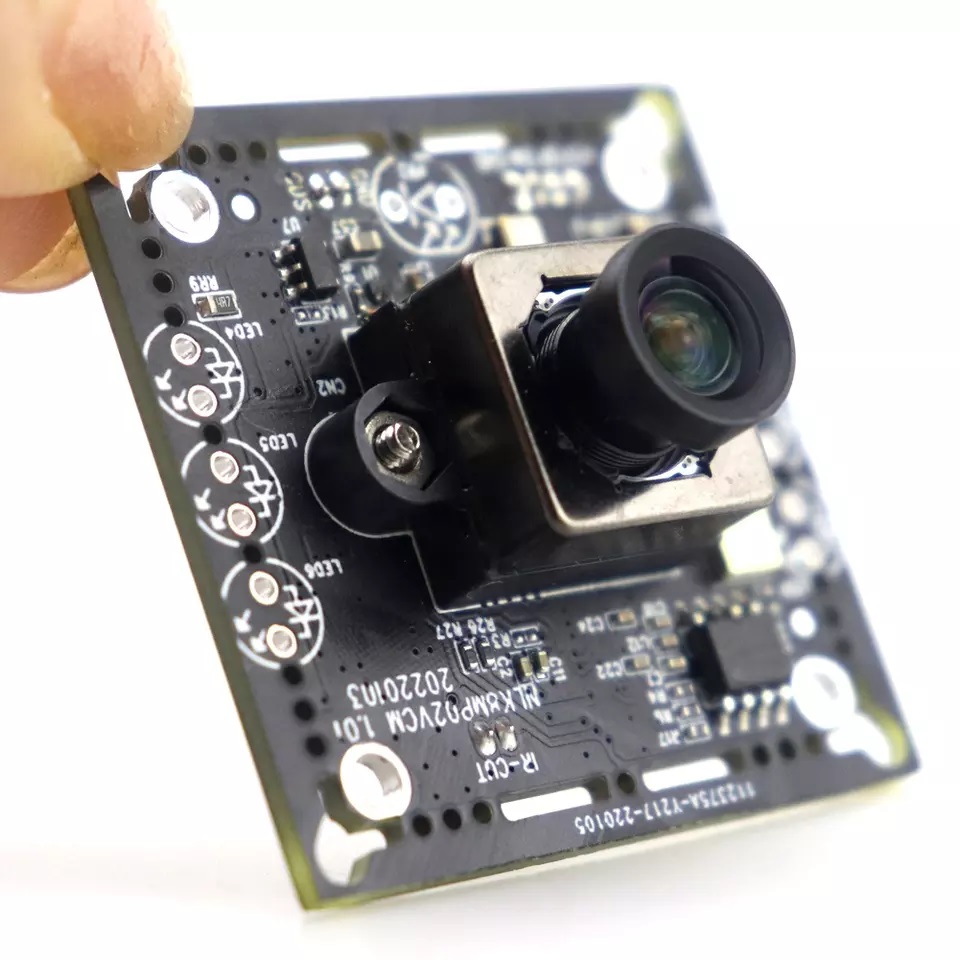

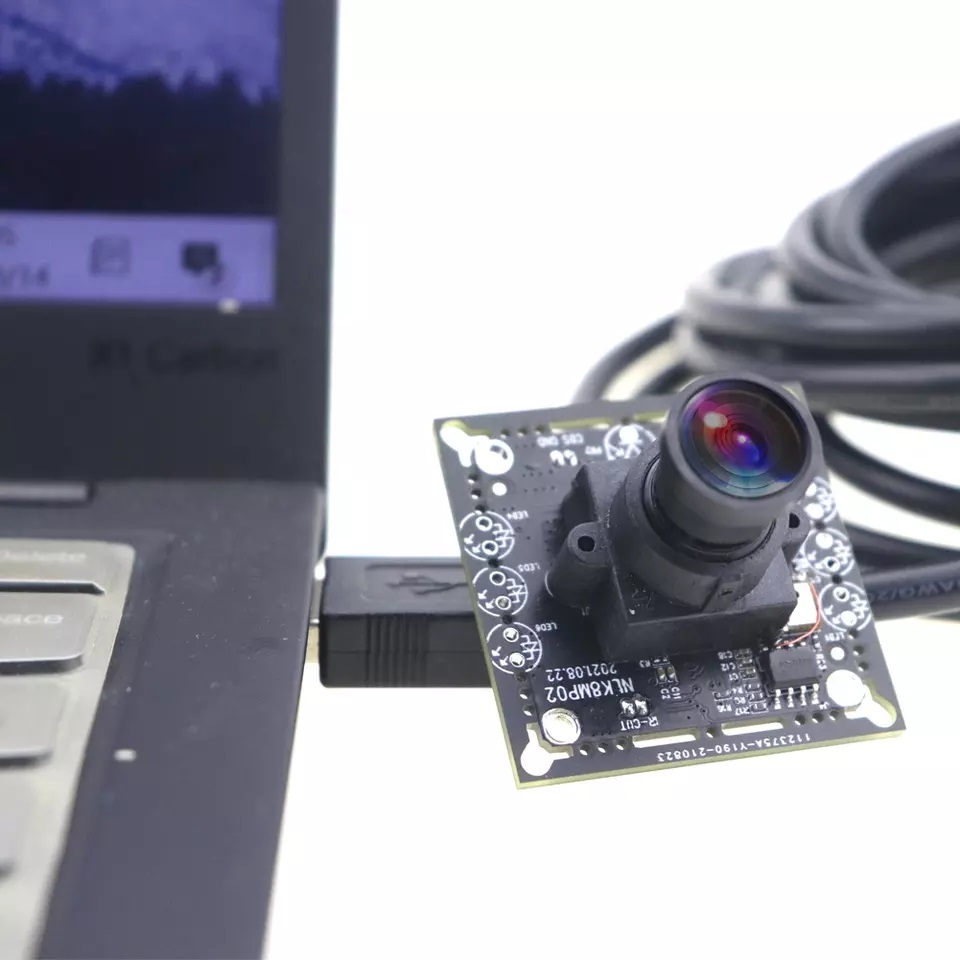

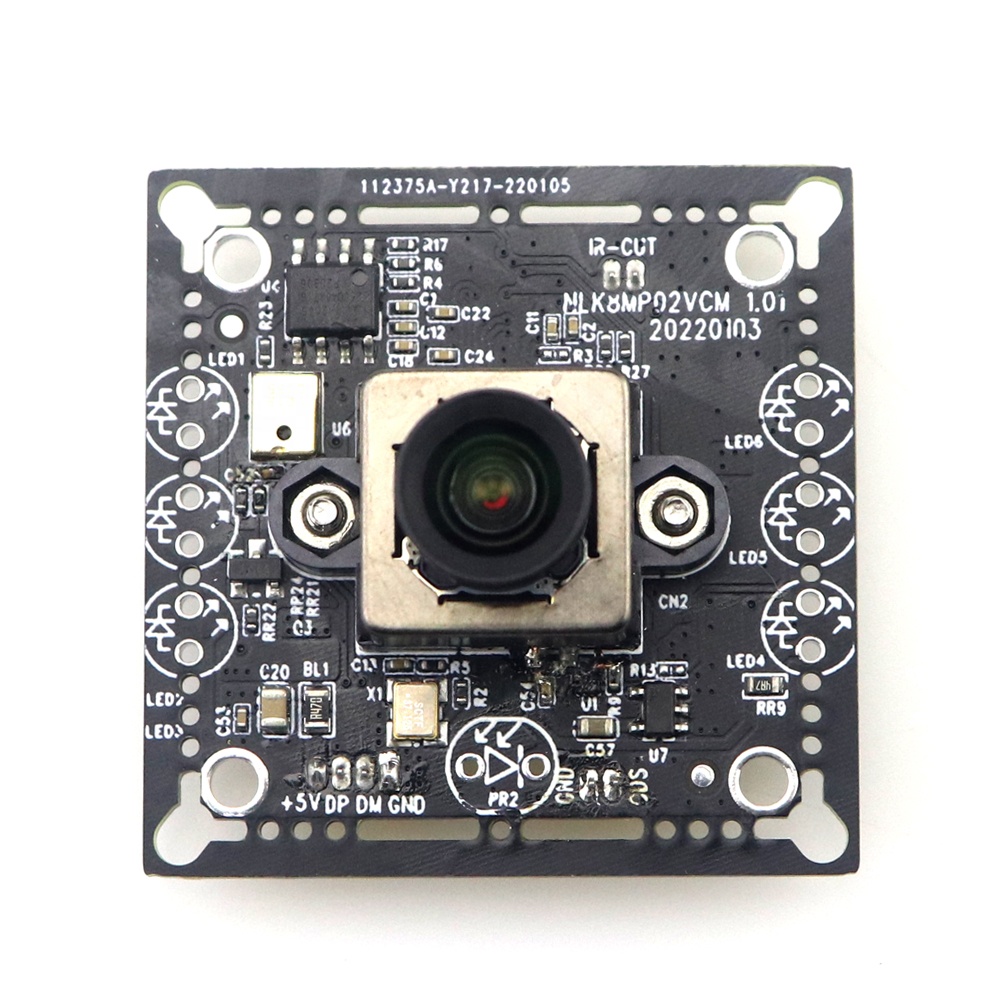

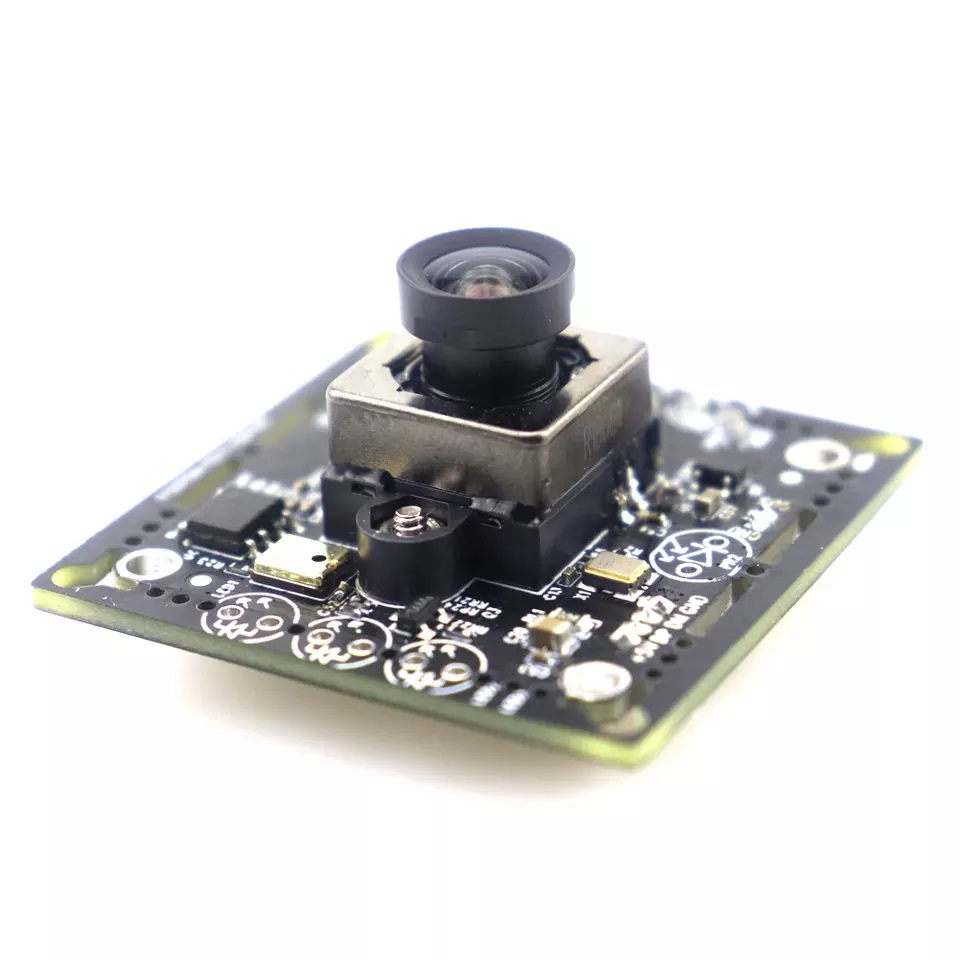

8MP Sony IMX415 UHD 2160P 4K 30FPS Auto focus AF CCTV USB camera module
UB camera pinhole board
Features
· SONY IMX415 STARVIS Sensor, 1/2.8 inch 8 Mega
· Built-in ISP processing
· USB2.0 Interface,USB Video Class(UVC)
· Data fromat : YUY2 / MJPG
· Standard lens mount
· IR-CUT circuit
· BLC, Digtal WDR, 2D noise reduction, Anti-fog
· Brightness, Contrast, Sharpness, Saturation adjustable
Electric Parameters
|
Technical Details |
|
|
SENSOR |
|
|
Sensor |
SONY IMX415AAQR-C STARVIS |
|
Pixels |
8.46M pixels |
|
Resolution |
3840*2160(4K) MAX |
|
Image Size |
Diagonal 6.46 mm (Type 1/2.8) |
|
Unit Cell Size |
1.45um (H)*1.45um(V) |
|
|
0.24lx |
|
ISP |
|
|
YUY2 Frame Rate |
1080P/7FPS,720P/12.5FPS,800*600/20FPS,640*480@30fps |
|
MJPG Frame Rate |
4K/30FPS,2560*1440/30FPS,1920*1080@25fps / 30fps, 1280*720@25fps / 30fps, 640*360@25fps / 30fps |
|
Exposure |
Auto or Manual |
|
White Balance |
Auto or Manual |
|
Shutter |
1/25(1/30)s to 1/50,000s |
|
Slow Shutter |
Coming Soon |
|
Denoising |
2Dnoise reduction |
|
Image Setting |
Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
|
Image Enhancement |
BLC, Digtal WDR, Defog |
|
Day/Night Switch |
Manual or IR-CUT filter with external trigger |
|
Lens & IR-CUT |
|
|
Lens Mount with IR-cut |
Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16 |
|
Mounting Hole |
2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
|
Interface |
|
|
Connector |
MX1.25*4,USB2.0 Interface |
|
Communication Interface |
USB2.0,UVC Protocol |
|
IR-CUT Control |
IR-CUT motor control, 3.3VDC |
|
Day/Night External Trigger |
3.3VDC to 5VDC compatibility |
|
General |
|
|
Operating Conditions |
-10℃~60℃, Humidity 95% or less, non-condensing |
|
Power Supply and Consumption |
5VDC,1.5W MAX |
|

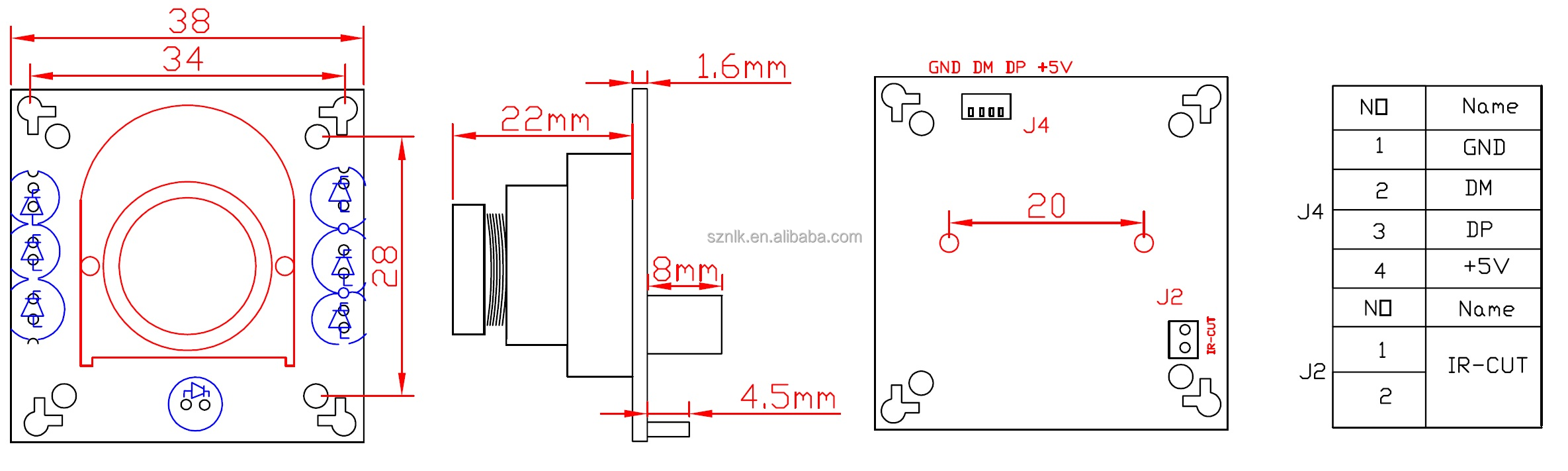

Dimension |
38mm*38mm*10mm(not include lens and lens mount) |
|
|
|
