NLK-8MP02CVM
Category：-8MP AF&Fixed Lens
Product specifications：
1/2.8 inch 8 Mega
Support Built-in ISP processing
· USB2.0 Interface,USB Video Class(UVC)
Support YUY2 / MJPG
· IR-CUT circuit
· BLC, Digtal WDR, 2D noise reduction, Anti-fog
Support Brightness, Contrast, Sharpness, Saturation adjustable
Good UVC Camera Module, Cheep 1080P Camera Module, Built-in mic 8mp analog camera metal
Details

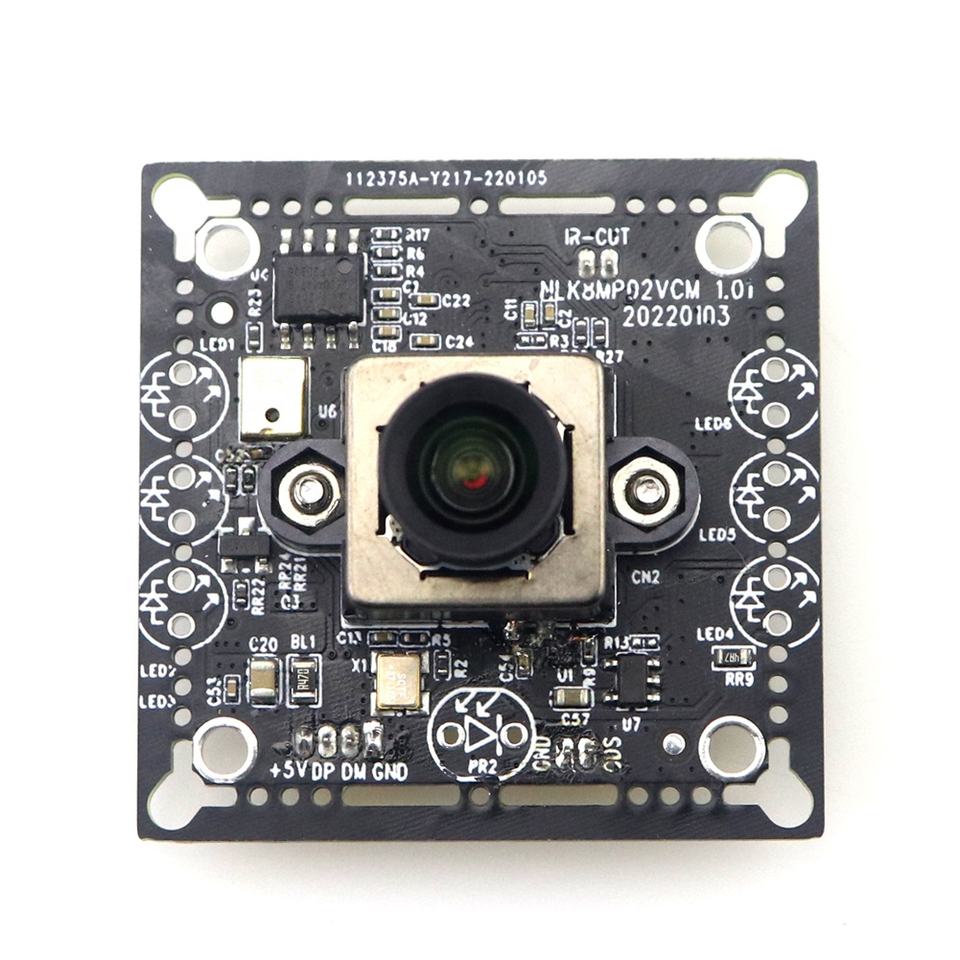

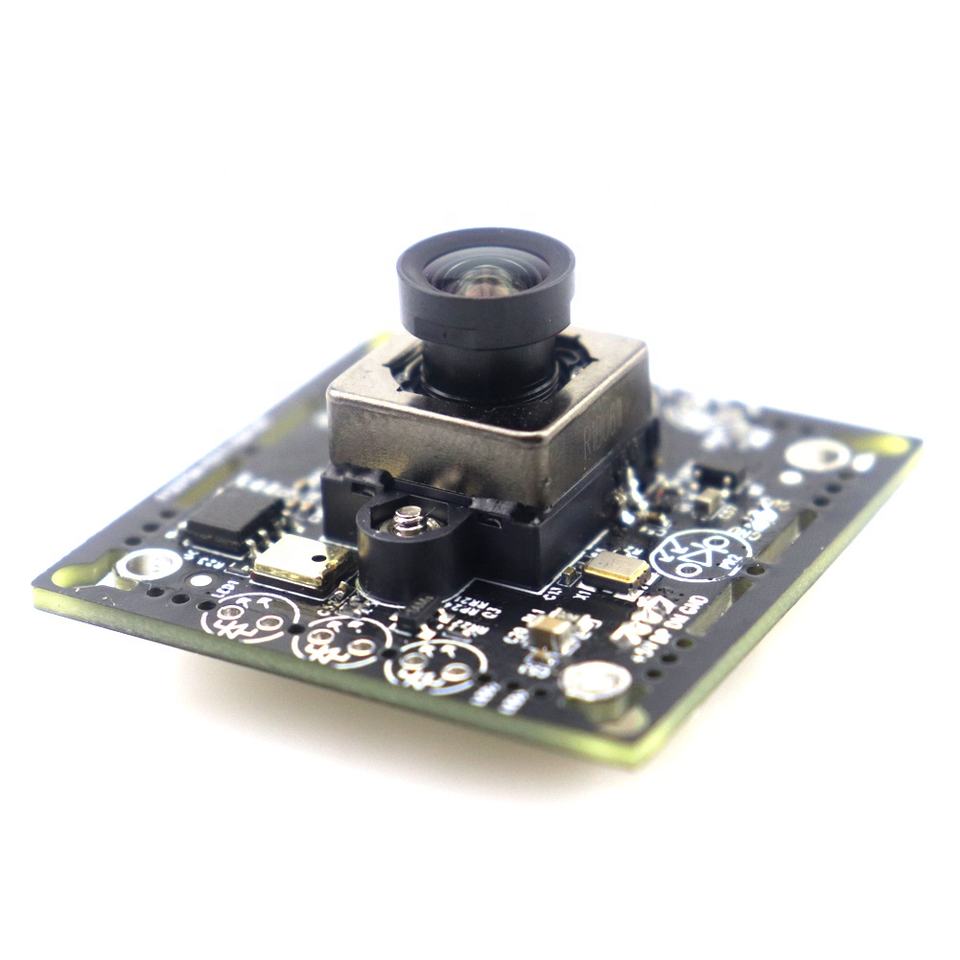

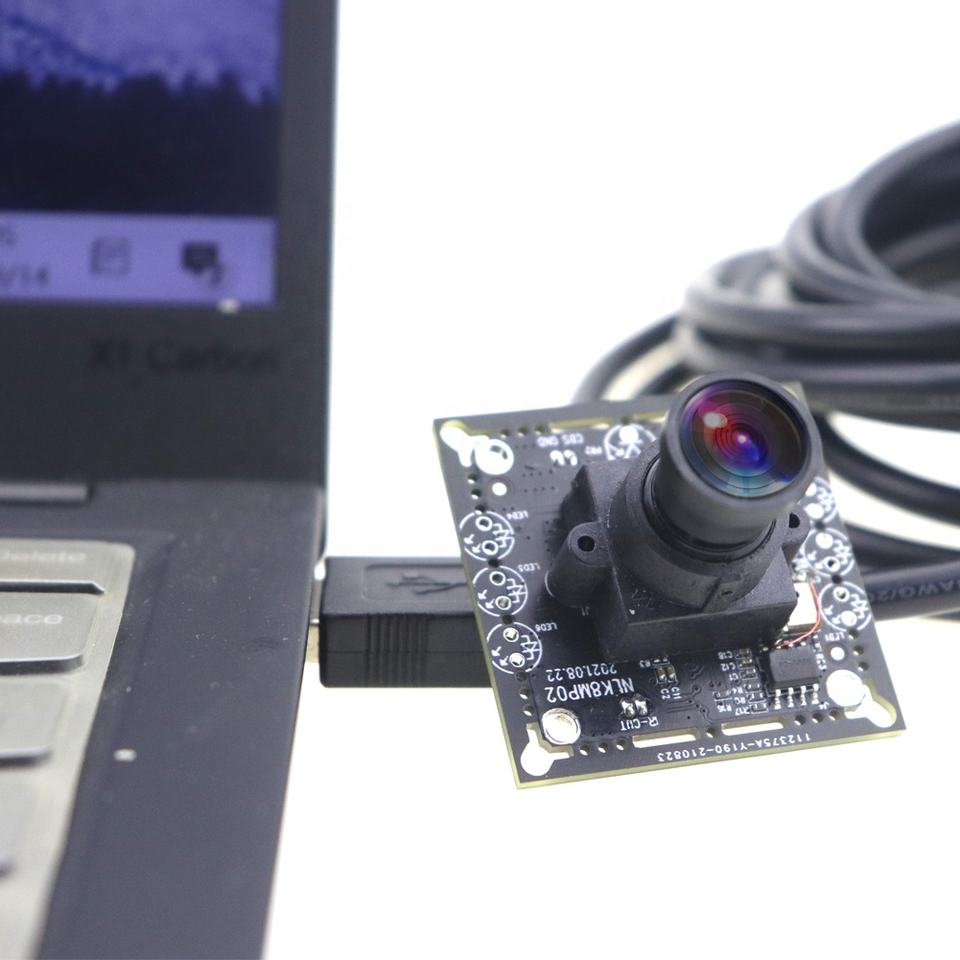

8MP Sony IMX415 UHD 2160P 4K 30FPS Auto focus AF CCTV USB camera module
UB camera pinhole board
Features
· SONY IMX415 STARVIS Sensor, 1/2.8 inch 8 Mega
· Built-in ISP processing
· USB2.0 Interface,USB Video Class(UVC)
· Data fromat : YUY2 / MJPG
· Standard lens mount
· IR-CUT circuit
· BLC, Digtal WDR, 2D noise reduction, Anti-fog
· Brightness, Contrast, Sharpness, Saturation adjustable
Electric Parameters
|
Technical Details |
|
|
SENSOR |
|
|
Sensor |
SONY IMX415AAQR-C STARVIS |
|
Pixels |
8.46M pixels |
|
Resolution |
3840*2160(4K) MAX |
|
Image Size |
Diagonal 6.46 mm (Type 1/2.8) |
|
Unit Cell Size |
1.45um (H)*1.45um(V) |
|
|
0.24lx |
|
ISP |
|
|
YUY2 Frame Rate |
1080P/7FPS,720P/12.5FPS,800*600/20FPS,640*480@30fps |
|
MJPG Frame Rate |
4K/30FPS,2560*1440/30FPS,1920*1080@25fps / 30fps, 1280*720@25fps / 30fps, 640*360@25fps / 30fps |
|
Exposure |
Auto or Manual |
|
White Balance |
Auto or Manual |
|
Shutter |
1/25(1/30)s to 1/50,000s |
|
Slow Shutter |
Coming Soon |
|
Denoising |
2Dnoise reduction |
|
Image Setting |
Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
|
Image Enhancement |
BLC, Digtal WDR, Defog |
|
Day/Night Switch |
Manual or IR-CUT filter with external trigger |
|
Lens & IR-CUT |
|
|
Lens Mount with IR-cut |
Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16 |
|
Mounting Hole |
2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
|
Interface |
|
|
Connector |
MX1.25*4,USB2.0 Interface |
|
Communication Interface |
USB2.0,UVC Protocol |
|
IR-CUT Control |
IR-CUT motor control, 3.3VDC |
|
Day/Night External Trigger |
3.3VDC to 5VDC compatibility |
|
General |
|
|
Operating Conditions |
-10℃~60℃, Humidity 95% or less, non-condensing |
|
Power Supply and Consumption |
5VDC,1.5W MAX |
|
Dimension |
38mm*38mm*10mm(not include lens and lens mount) |
|
|
|
