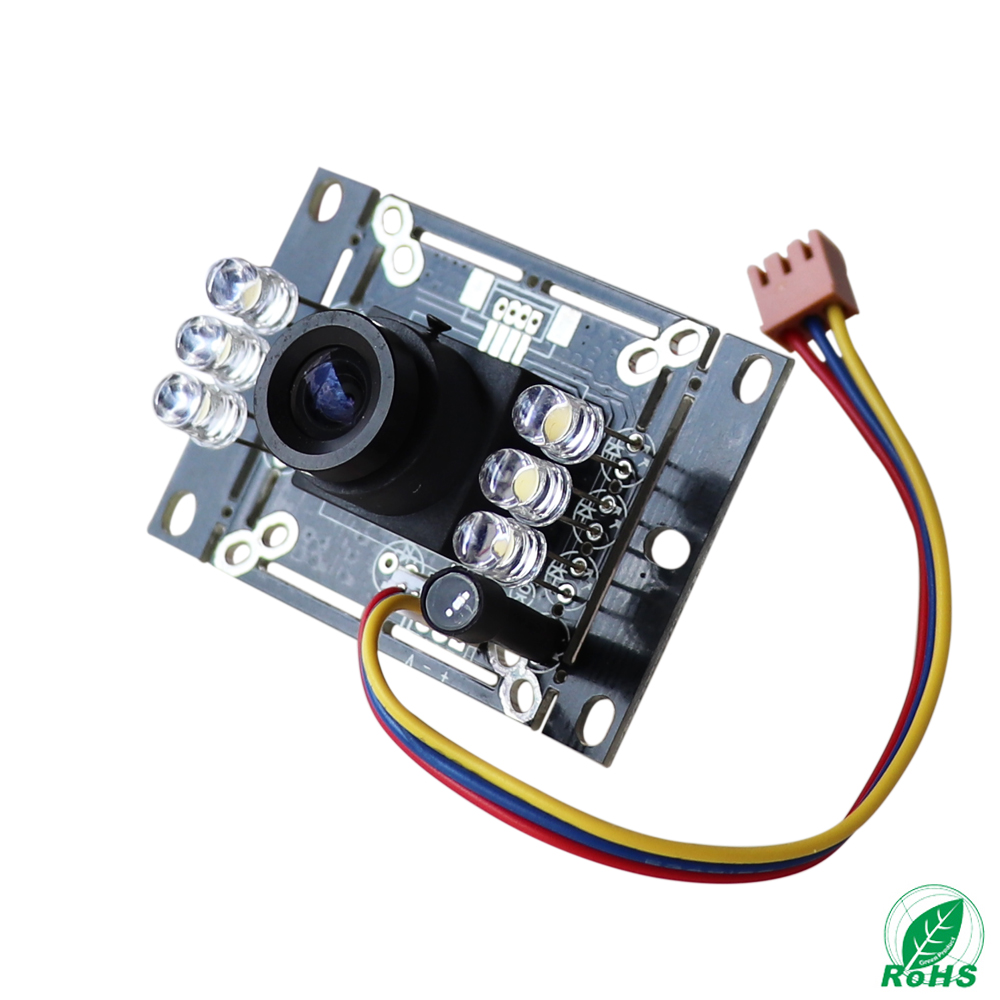

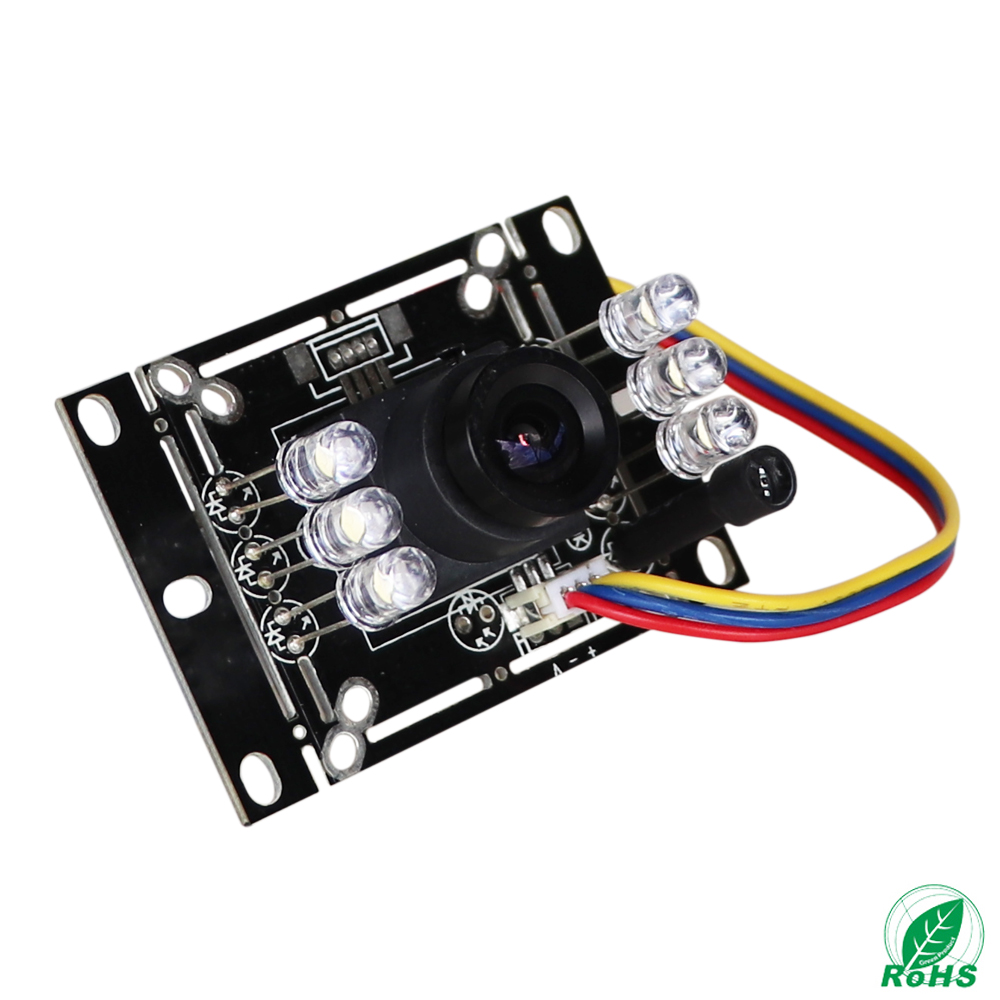

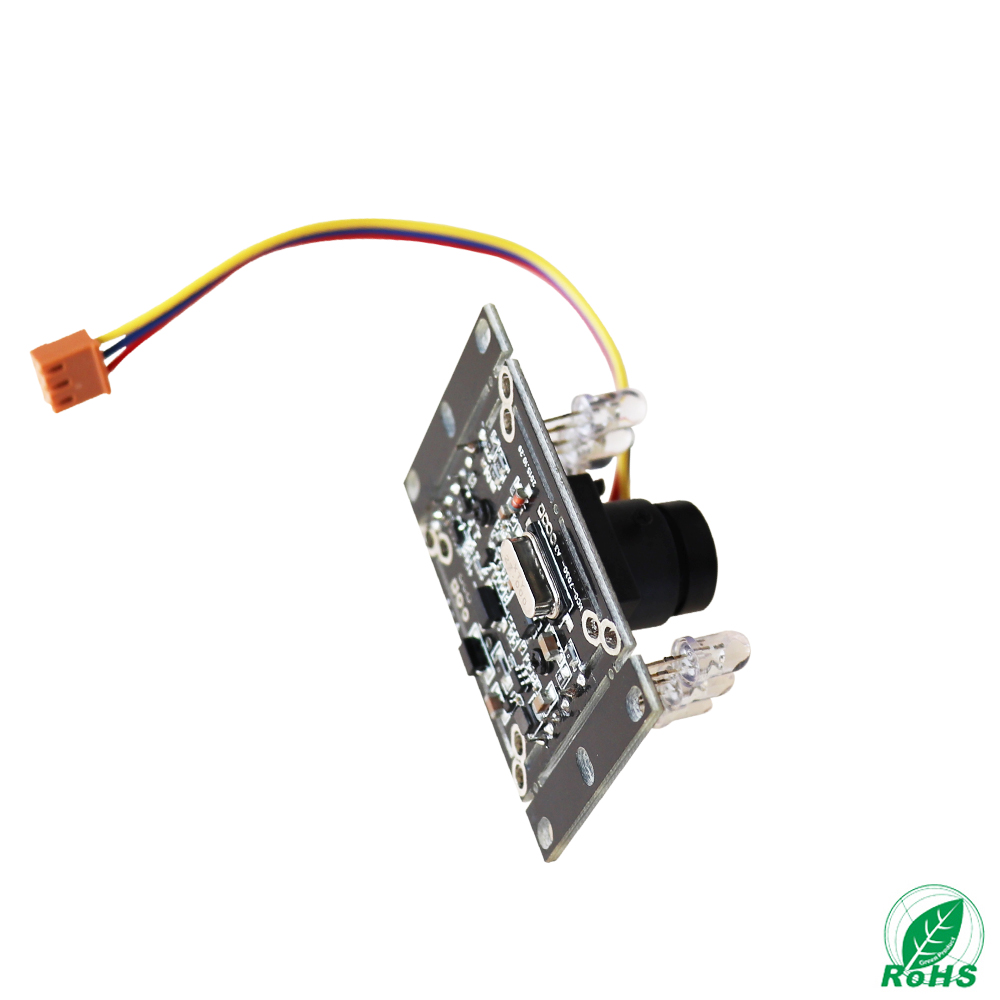

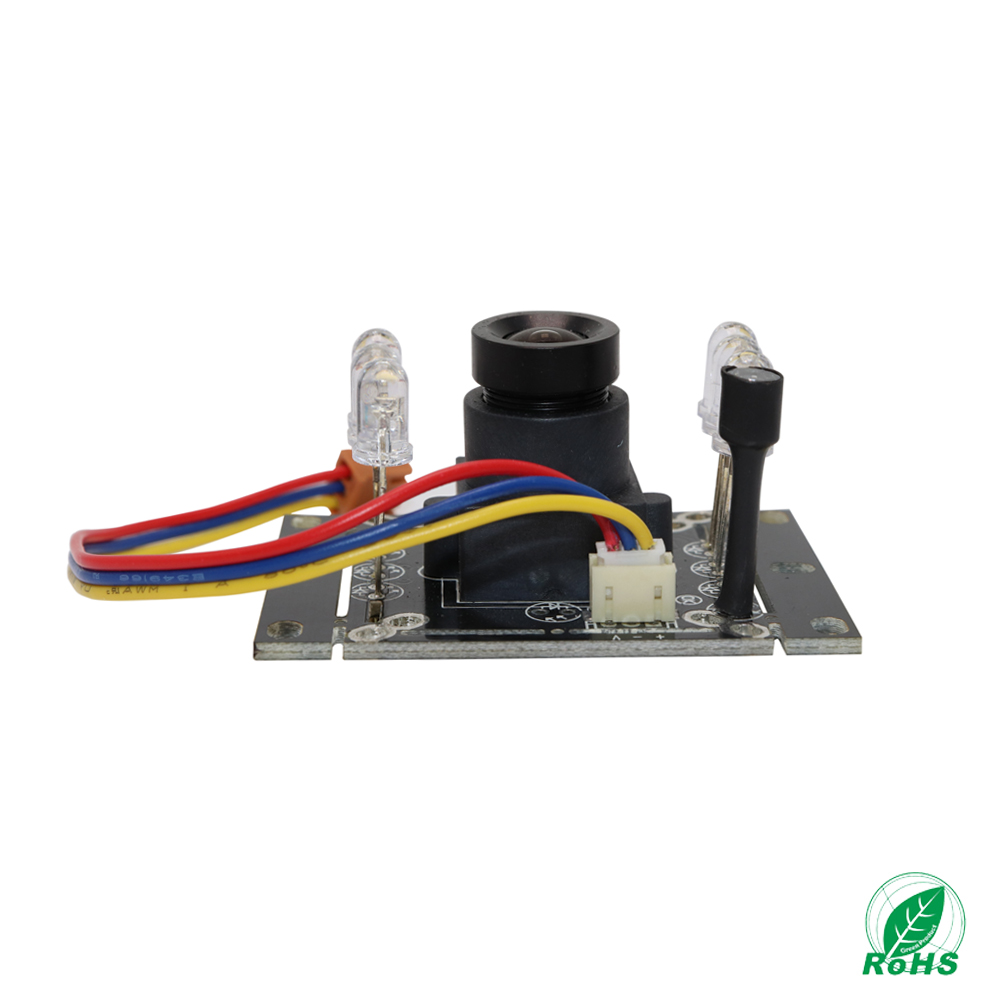

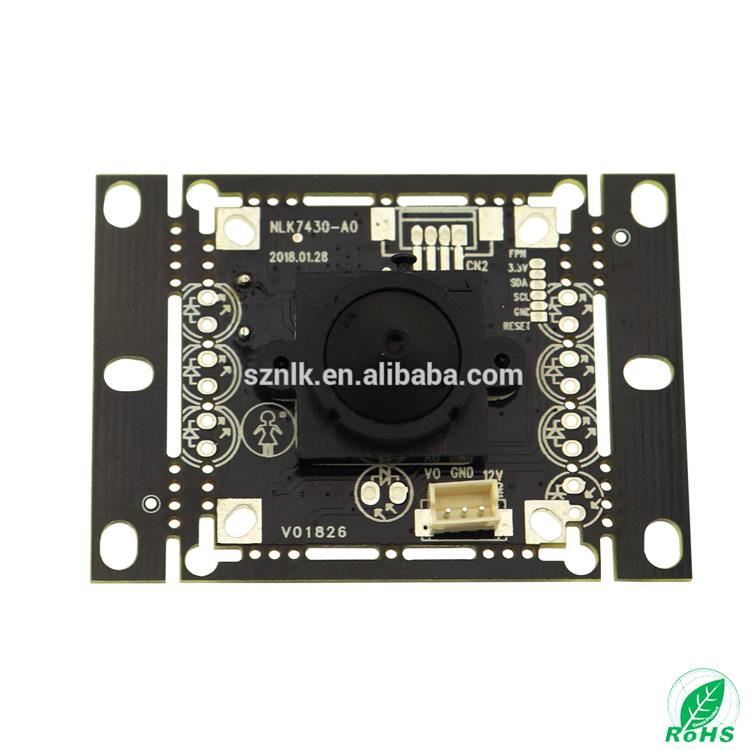

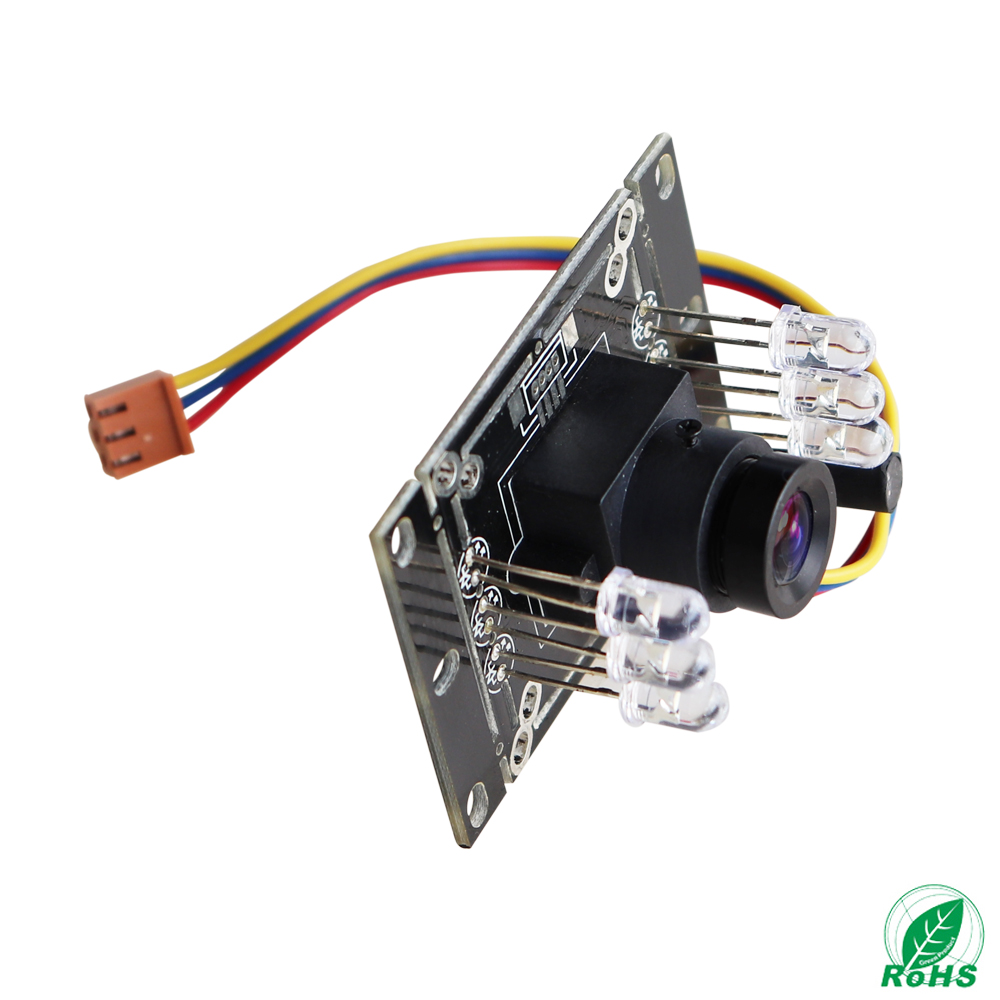

1/3inch CMOS PC7430 ODM OEM CVBS Pinhole Camera Module For Video Door Phone
Pinhole Camera Module
Application Area
Video Door Phone and Intercom Machine
Normal Security Products
Features
PC7430 good quality CMOS as Sensor
32*32/38*38/38*54 difference size
CVBS output, support PAL and NTSC
ACCEPT OEM and ODM
Electric Parameters
|
o. |
Items |
Parameter description |
|
1 |
Image sensor |
1/3inch CMOS |
|
2 |
Image format |
PAL,NTSC |
|
3 |
Effective pixel |
733(H)*493(V) |
|
4 |
Sync. mode |
Built-in Sync. |
|
5 |
Horizontal pixel |
500TVL(4:3 mode) |
|
6 |
Pixel size |
6.35um(H)*7.4um(V) |
|
7 |
SNR |
> 60dB (AGC OFF) |
|
8 |
Min.Lux |
2LUX(F:1.2) without LED |
|
9 |
Exposure system |
Auto White balance/ Backlight compensation, Auto AGC |
|
10 |
Electric shutter |
1/25-1/12000S |
|
11 |
Gamma |
>0.45 |
|
12 |
Video output |
1.0±0.2Vp-p/ 75 ohm |
|
13
|
Night version compe |
(optional) |
|
14 |
Frame rate |
25FPS(PAL)/30FPS(NTSC) |
|
15 |
Input voltage |
+7V~+15V (Typical:DC12V ±25%) |
|
16 |
Power |
DC+12V:Currency is 50mA±5mA |
|
17 |
Working temperature |
-20℃ ~ 60 ℃ |
|
18 |
Storage Temperature |
-30℃ ~ 80℃ |
|
29 |
Humidity |
5~95% RH |
|
20 |
Lens Parameter |
Focus length:3.7mm±5% |
|
Diagonal line viewing angle:75°±5% |
||
|
Focus distance between lens to things: 40cm(close focus distance );1.5M(long focus distance)
|
||
|
Relative distortion:<-28.7% |
||
|
21 |
size |
32*32*18.4mm(include pinhole lens) |
