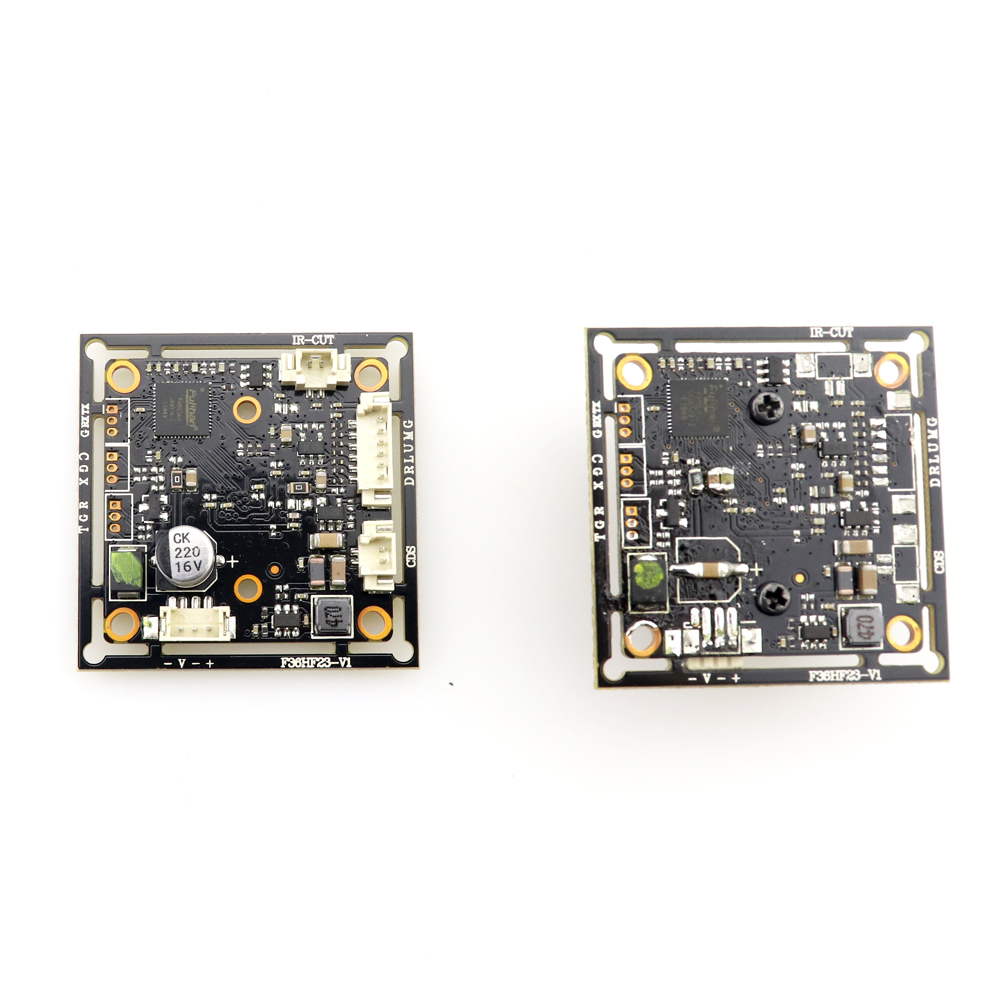

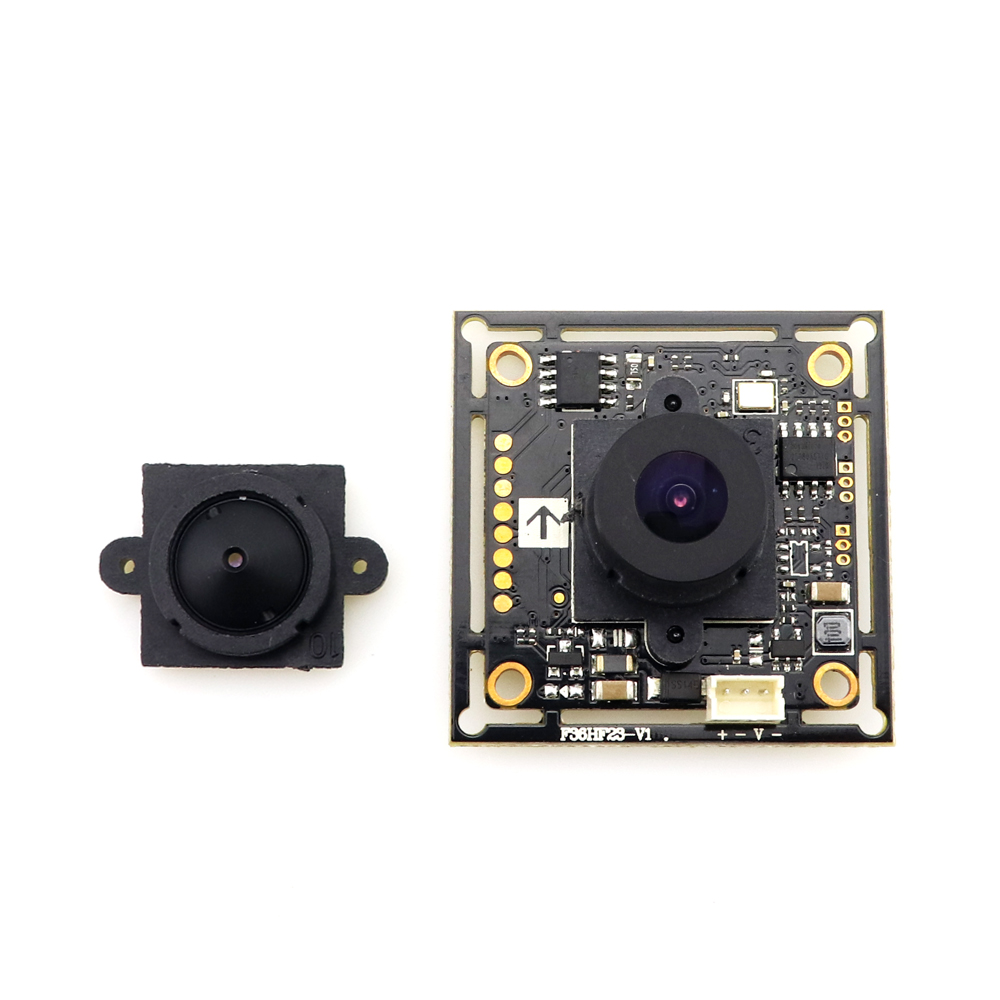

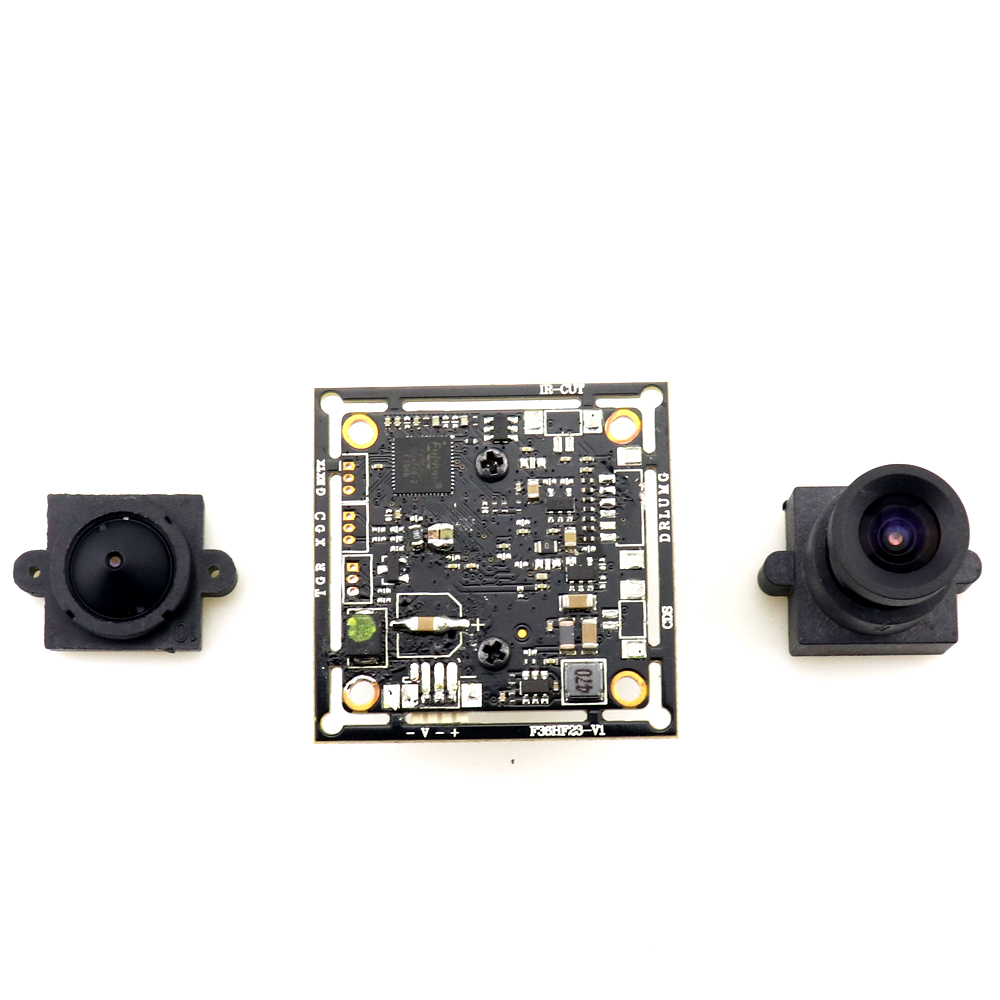

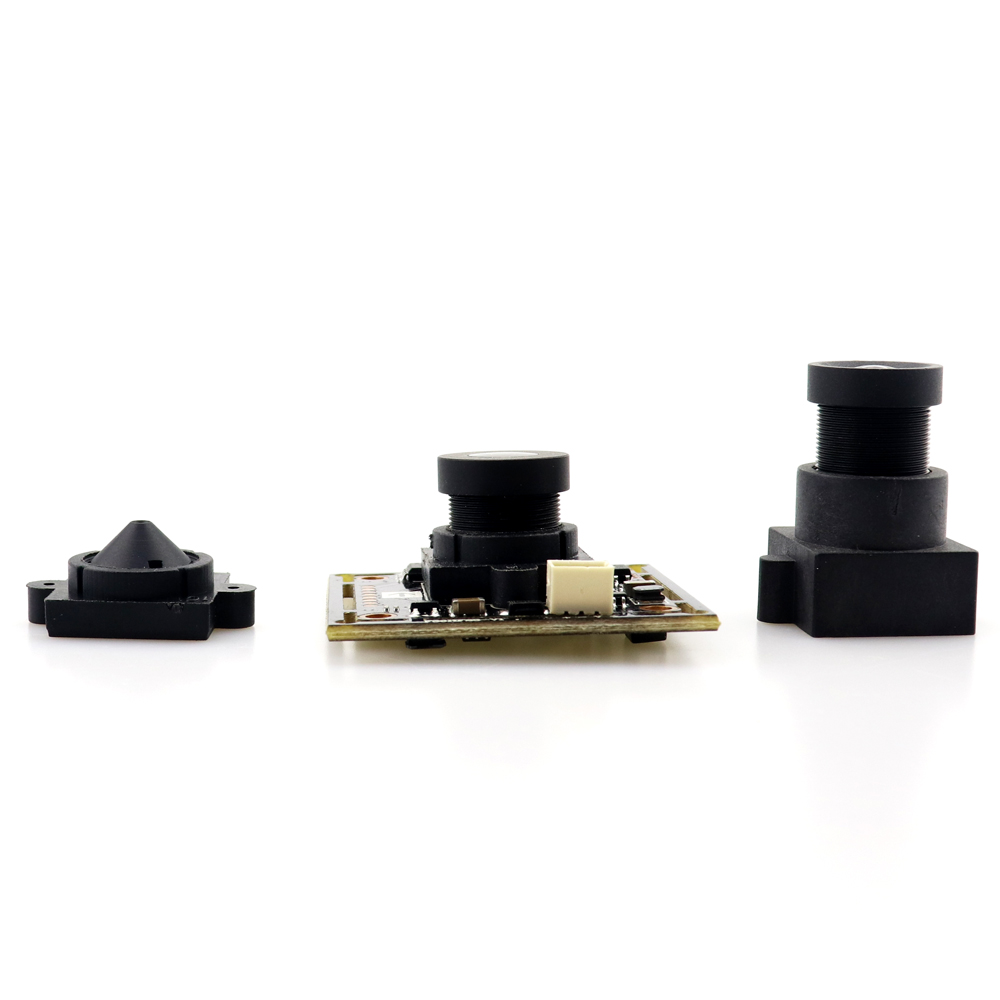

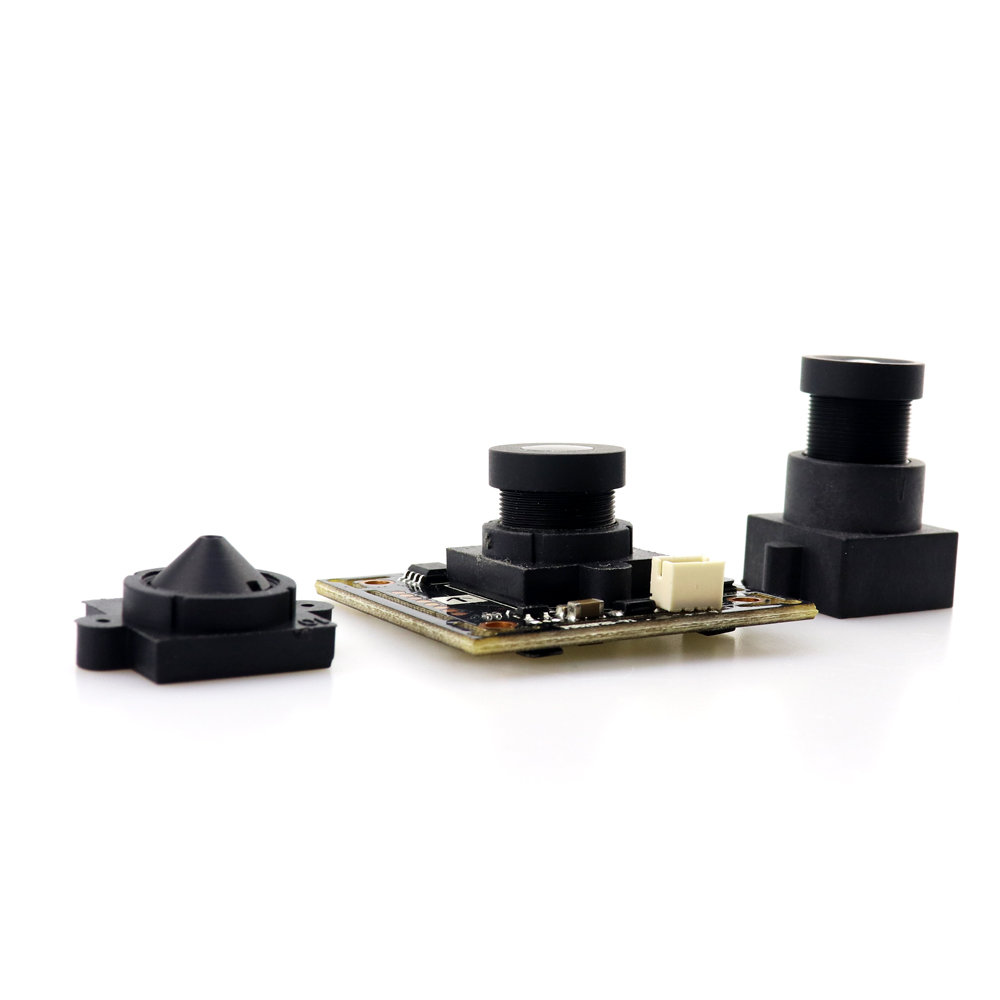

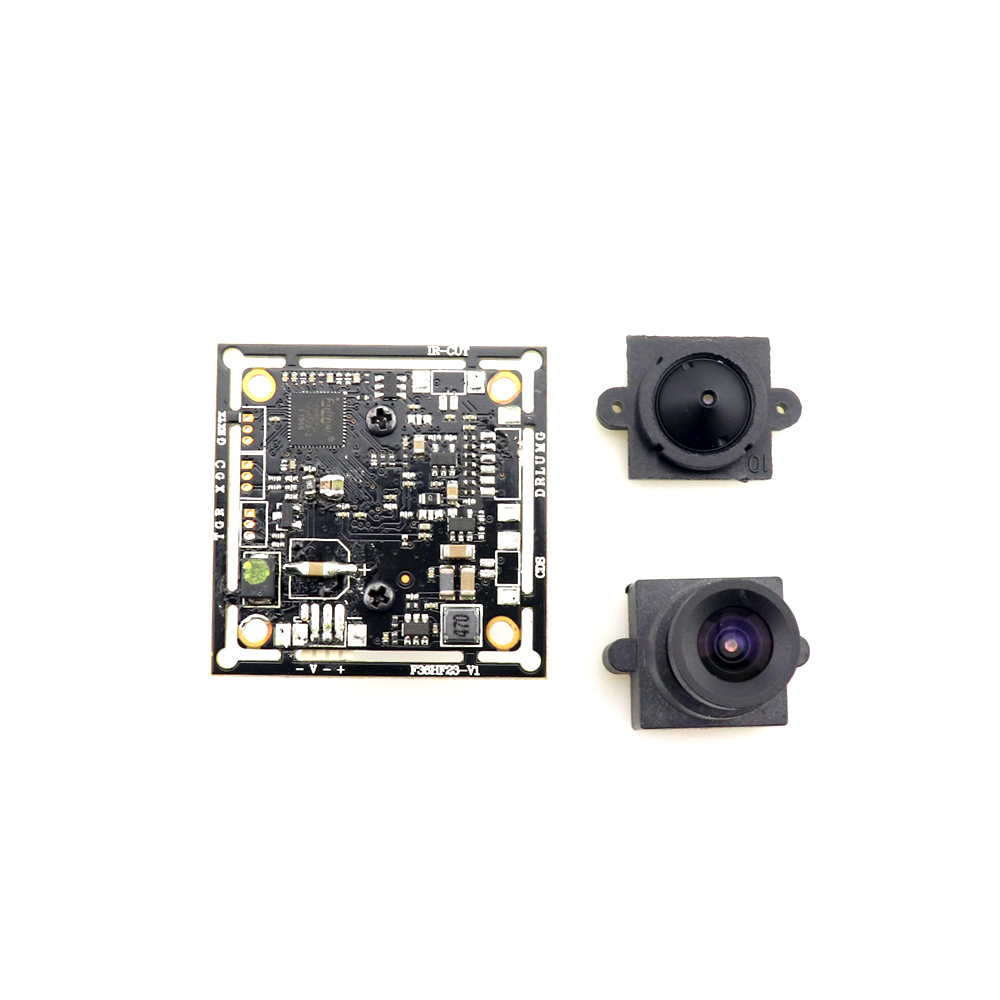

Professional Custom 500tvl 1/4 Inch Cmos Hd Usb Camera Module for Video Door Phone
Features
PC7440 cheap with good quality CMOS as Sensor
32*32/38*38/38*54 difference size
CVBS output, support PAL and NTSC
ACCEPT OEM and ODM
Application Area
Video Door Phone and Intercom Machine
Normal Security Products
Electric Parameters
| 1 | Image sensor 1/4 inch CMOS |
| 2 | Image format PAL\NTSC |
| 3 | Effective pixel 648(H)*488(V) |
| 4 | Sync. mode Built-in Sync. |
| 5 | Horizontal pixel 500TVL(4:3 mode) |
| 6 | Pixel size 5.6um*5.6um |
| 7 | SNR: > 60dB (AGC OFF) |
| 8 | Min.Lux: 2LUX(F:1.2) |
| 9 | Exposure system Auto White balance/ Backlight compensation, Auto AGC |
| 10 | Electric shutter 1/25-1/12000S |
| 11 | Gamma >0.45 |
| 12 | Video output 1.0±0.2Vp-p/ 75 ohm |

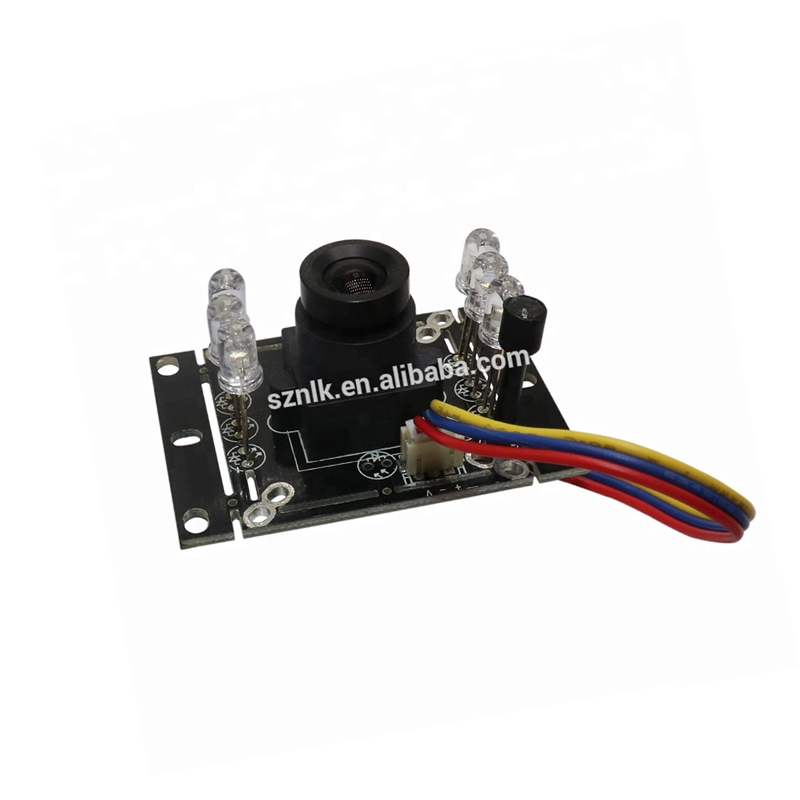

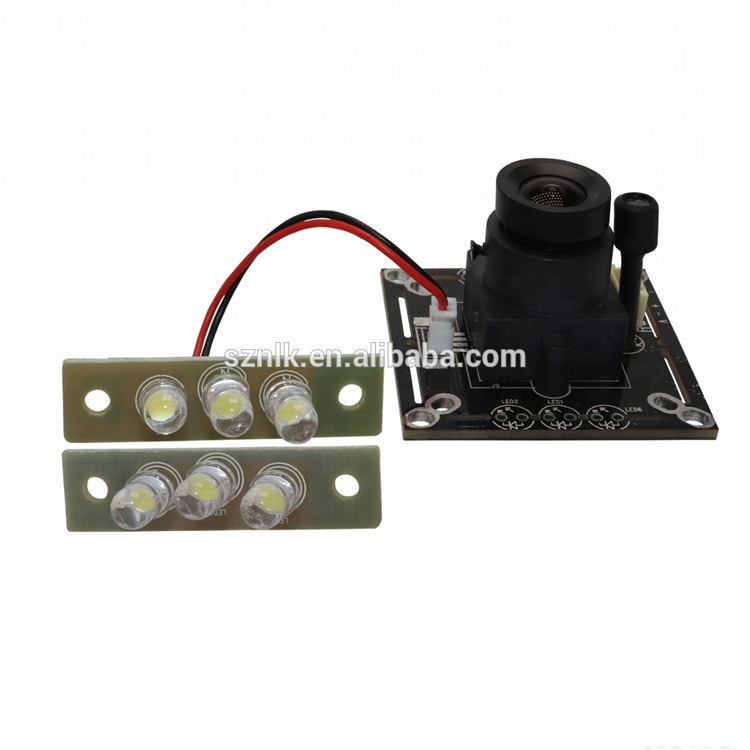

| 13 | Night version compe 6pcs White or IR LEDs (optional) |
| 14 | Frame rate 25FPS(PAL)/30FPS(NTSC) |
| 15 | Input voltage +7V~+15V (Typical:DC12V ±25%) |
| 16 | Power DC+12V:Currency is 30mA±5mA ( when 6pcs of white LEDs on, the currency is 60mA±10mA) Support 940nm IR LED |
| 17 | Working temperature -20℃ ~ 60 ℃ |
| 18 | Storage Temperature -30℃ ~ 80℃ |
| 19 | Humidity 5~95% RH |
| 20 | Lens Parameter Focus length:3.6mm±5% |
| 21 | Diagonal line viewing angle:75±10% |
| 22 | Focus distance between lens to things: 40cm(close focus distance );1.5M(long focus distance) |
| 23 | Relative distortion:<-28.7% |
