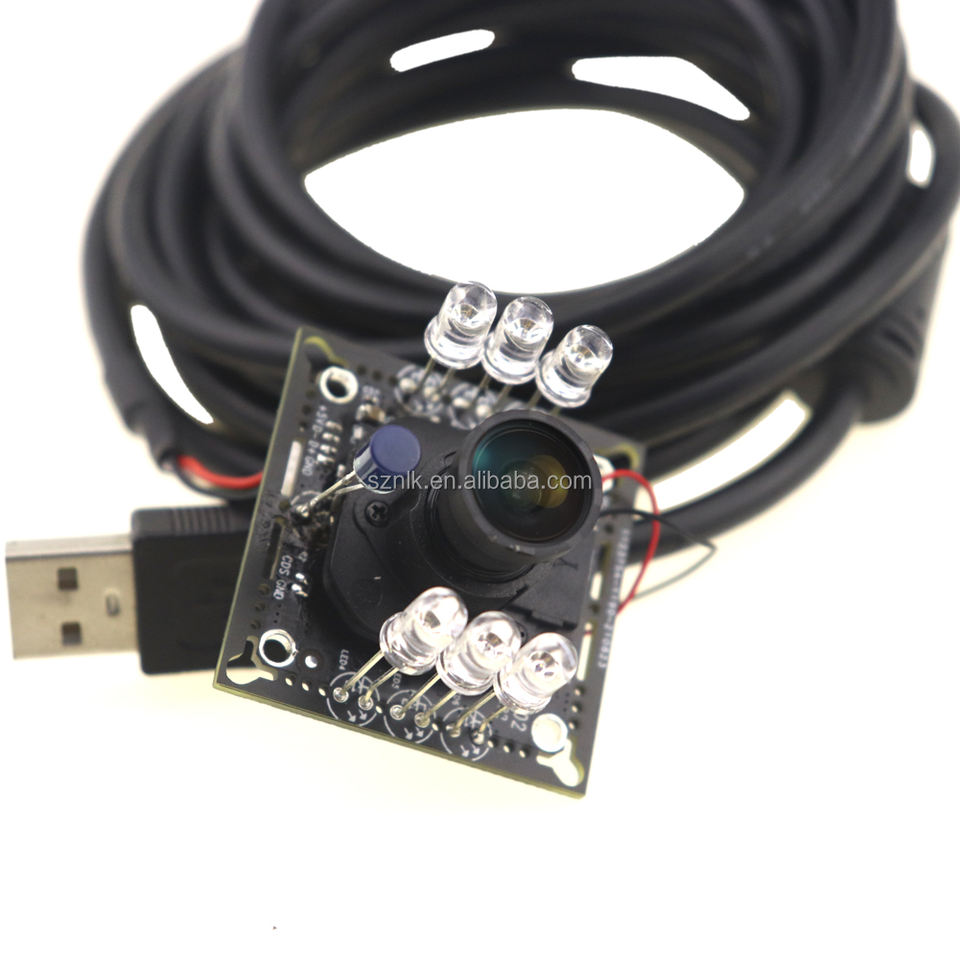

2MP Sony IMX307 Real WDR with IR-LED and IR-CUT Camera board
Category：Webcam camera module USB
Product specifications：
1. 1/2.9" 2MP HD sensor, reach to 1920*1080
2. Support Audio MIC.
3. Standard UVC/UAC protocal, Plug in/out
4. Support Windows/Android/Linux system.
4. Support MJPG.YUY2.H264 image format,max 2MP/30FPS
5. adopt FH8852 DSP
6. Support Android/Linux/Mac/Windows PC with USB ports
Details
OEM 1080P 120fps HD CCTV H.264 5MP 4K Starvis Wide Mini UVC MIPI Endoscope Laptop USB camera module

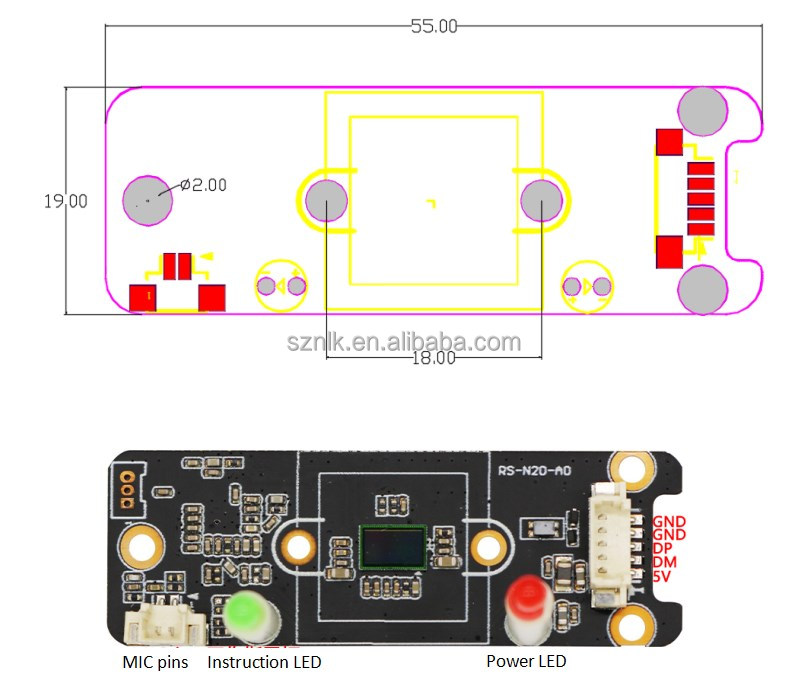

Mini USB Camera Board Module
We are factory to design and produce camera board, main product is camera with CVBS and AHD output , normally made by Sony IMX sensor and F23 and PC5510, support NTSC and PAL and OSD function. Main application area is Video door phone and inspection area and Security.
USB camera made by Sony and OV and Aptina sensor. All easy plug and play, support MIC and instruction LED, most of them are using for Live stream directly broadcast and Industrial and Smart TV and Conference System and KIOSK and Security.
Features
| 1.1/2.9" 2MP HD sensor, reach to 1920*1080 |
|
2.Support Audio MIC. |
| 3.Standard UVC/UAC protocal, Plug in/out,Support Windows/Android/Linux system. |
| 4. Support MJPG.YUY2.H264 image format,max 2MP/30FPS |
| 5. adopt FH8852 DSP |
| 6. Support Android/Linux/Mac/Windows PC with USB ports |
Main Parameters
F23 AHD output:
|
Image sensor |
1/2.9" F23 |
|
Effective pixel |
1920(H) × 1080(V) |
|
Horizontal pixel |
200W |
|
Signal/Noise rate |
> 50dB |
|
Video stream |
MJPG 1920*1080/1280*720/640*480 YUY2 1280*720/640*480 H264 1920*1080/1280*720/640*480 |
|
Frequency |
30FPS |
|
Electric shutter |
Auto |
|
Protocal |
UVC/UAC |
|
OSD Menu |
No |
|
Output signal |
USB video stream |
|
Working voltage |
DC5V/160mA ±6mA |
|
Working environment |
-20℃ -- 60℃ |
8MP USB output:
|
Technical Details |
|
|
SENSOR |
|
|
Sensor |
SONY IMX415AAQR-C STARVIS |
|
Pixels |
8.46M pixels |
|
Resolution |
3840*2160(4K) MAX |
|
Image Size |
Diagonal 6.46 mm (Type 1/2.8) |
|
Unit Cell Size |
1.45um (H)*1.45um(V) |
|
|
0.24lx |
|
ISP |
|
|
YUY2 Frame Rate |
1080P/7FPS,720P/12.5FPS,800*600/20FPS,640*480@30fps |
|
MJPG Frame Rate |
4K/30FPS,2560*1440/30FPS,1920*1080@25fps / 30fps, 1280*720@25fps / 30fps, 640*360@25fps / 30fps |
|
Exposure |
Auto or Manual |
|
White Balance |
Auto or Manual |
|
Shutter |
1/25(1/30)s to 1/50,000s |
|
Slow Shutter |
Coming Soon |
|
Denoising |
2Dnoise reduction |
|
Image Setting |
Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
|
Image Enhancement |
BLC, Digtal WDR, Defog |
|
Day/Night Switch |
Manual or IR-CUT filter with external trigger |
|
Lens & IR-CUT&AUTO FOCUS |
|
|
Optional-Lens Mount with IR-cut |
Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16 |
|
Mounting Hole |
2 screw holes with diameter of 2mm,18mm Center-to-Center Spacing |
|
Optional-AUTO FOCUS LENS |
111degree M8 interface without distortion lens(Auto focus min distance:≥8CM) |
|
Interface |
|
|
Connector |
MX1.25*4,USB2.0 Interface |
|
Communication Interface |
USB2.0,UVC Protocol |
|
IR-CUT Control |
IR-CUT motor control, 3.3VDC |
|
Day/Night External Trigger |
3.3VDC to 5VDC compatibility |
|
General |
|
|
Operating Conditions |
-10℃~60℃, Humidity 95% or less, non-condensing |
|
Power Supply and Consumption |
5VDC,1.5W MAX |
|
Dimension |
38mm*38mm*10mm(not include lens and lens mount) |
