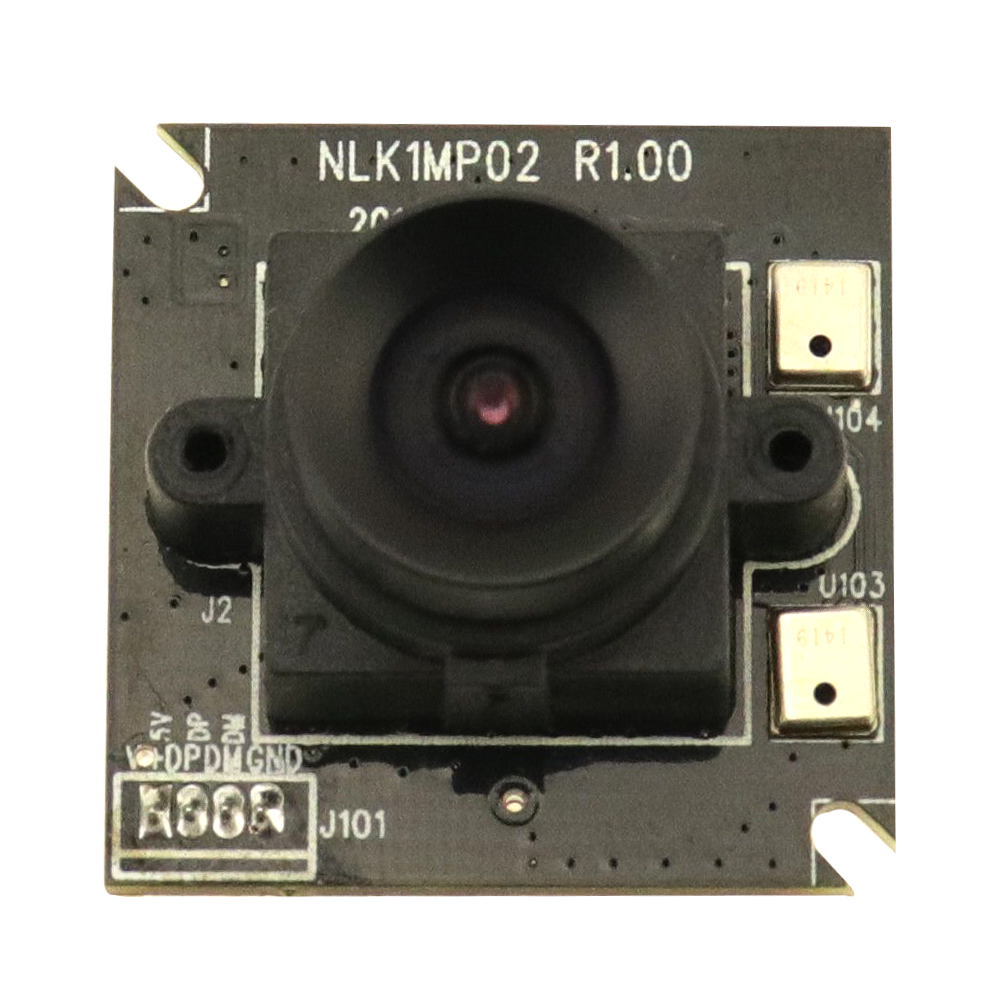

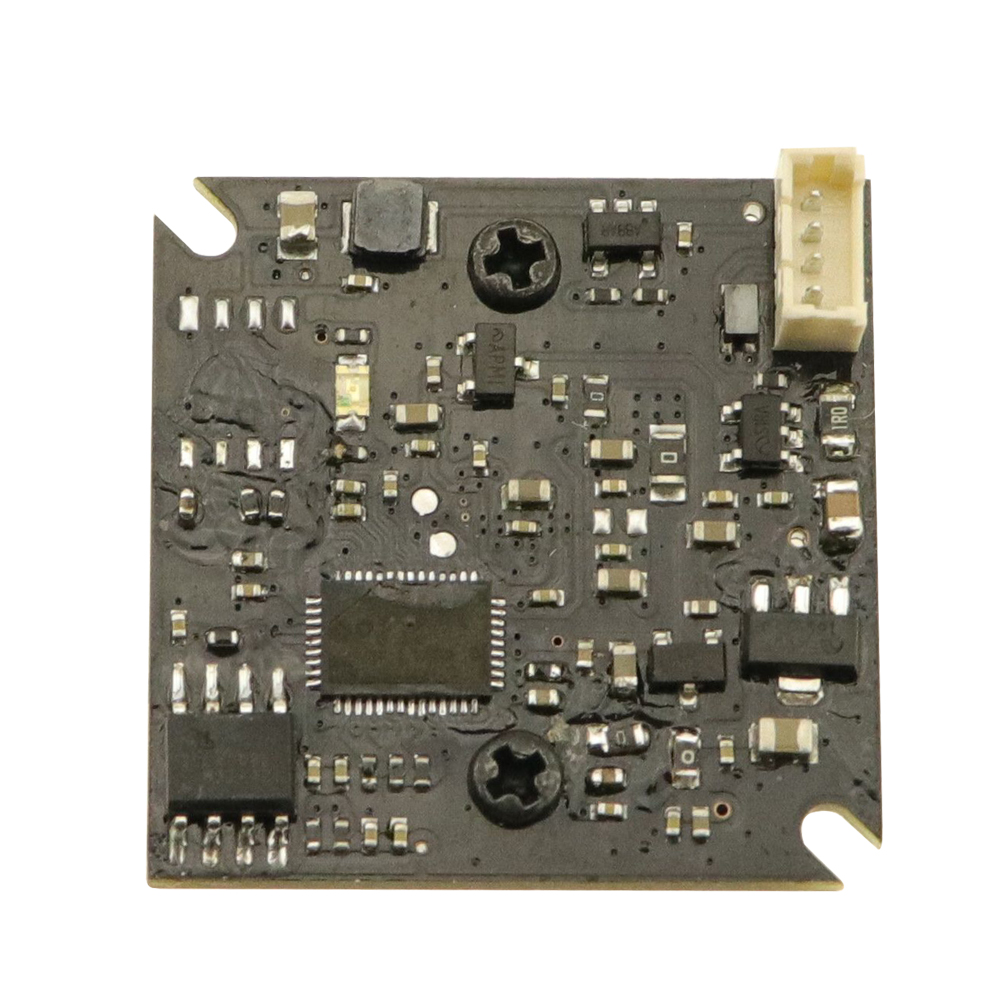

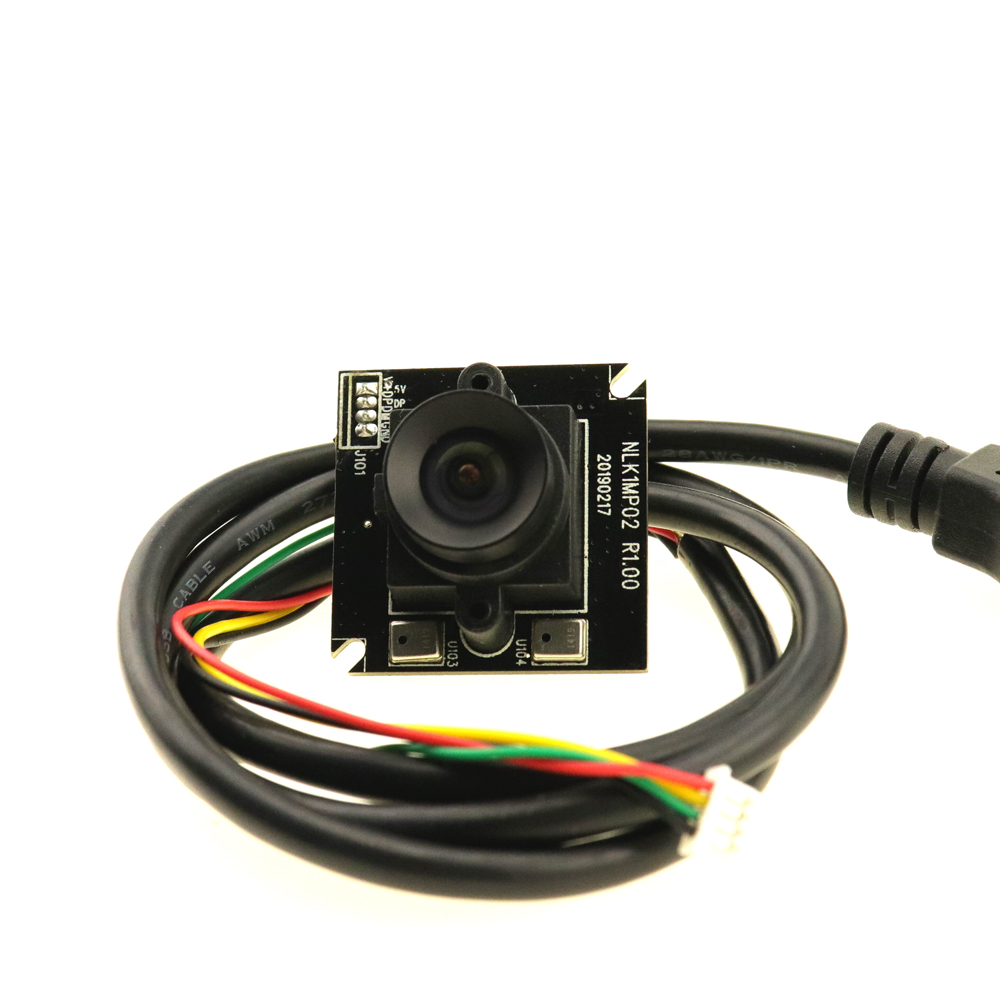

Monochrome or Color High Frame Rate Global shutter USB Camera module and Fast Capture Imaging System for High-Speed Applications
Category：Webcam camera module USB
Product specifications：
Fast Motion, and Quick Capture - Unleash the Power of Rapid Imaging
Accept OEM and ODM.
Global Shutter USB camera module, high frame rate camera module/High speed USB camera
Details
|
Parameter |
SPEC. |
|
|
Optical size Sensor |
1/4 inch COMS sensor |
|
|
Sensor Resolution |
1280(H) x 800 (V),720P For B/W, 1600*1200 for color |
|
|
Unit pixel size |
3um*3um |
|
|
Color filter |
Monochrome(B/W)/Color |
|
|
Shutter type |
Global Shutter |
|
|
Max. video frame rate （MJPEG） |
220fps@640*400, 640*360, 320*240, 320*200 120fps@720P/1280*800/1600*1200, 800*600,640*480 100fps@320*200 for YUV,60fps @640*480 for YUV. |
|
|
View Angle |
from 60 to 160degree |
|
|
F Number |
2.67mm(TY2019B) |
|
|
AEC / AGC/ White Balance |
Auto |
|
|
Focus Distance |
with fixed lens 50CM-∝ |
|
|
Interface |
USB 2.0 |
|
|
Power |
USB Bus Power |
|
|
Dimensions (mm) (L x W x H) |
28*28*16mm/32*32/38*38mm |
|
|
Operating Temperature |
-10℃to +70°C |
|
|
Operating System Request |
Windows XP/ Windows 7/ Windows 10(UVC), Linux(>V2.6 ) |
|
|
Max pixel rate |
28Mp/s |
|
|
ADC accuracy |
10-bit |
|
|
USB 2.0 PHY |
On Chip PHY |
|
|
Power Consumption |
Standby |
4mA |
|
Operating |
150mA士10mA @ 720P |
|
