Details
| item | value |
| Model Number | NLK-2093 |
| Image sensor | 1/2.9 inch |
| Video Format | PAL, NTSC |
| Starting time | <0.5S |
| Effective pixel | 1920H*1080V (16:9) |
| Synchronously | Built-in synchronization |
| Resolution | 800TVL for CVBS/720P-1080P for AHD |
| Pixel size | 2.8um*2.8um |
| S/N radio | 38dB |
| WDR | 150DB |
| Min.Lux | 0.1LUX(F:2.0) |
|
Exposure system |
Auto Exposure |
| Electronic shutter | Auto |
| Gamma correction | >0.45 |
| Video output | 1.0±0.2Vp-p/ 75 ohm |
| System | CVBS/AHD/TVI |
| AGC | Auto |
| Frame | NTSC 30 frame/s, PAL 25 frames |
| Input voltage | DC12V ±20% |
| Power Consumption | DC+12V Voltage: current:90mA±10mA,6LED=130MA |
| Working Temp | -30℃ ～70 ℃ |
| Storage Temp | -40℃ ～80℃ |
| Humidity | 5~95% RH |
| Direction | Front Stand |

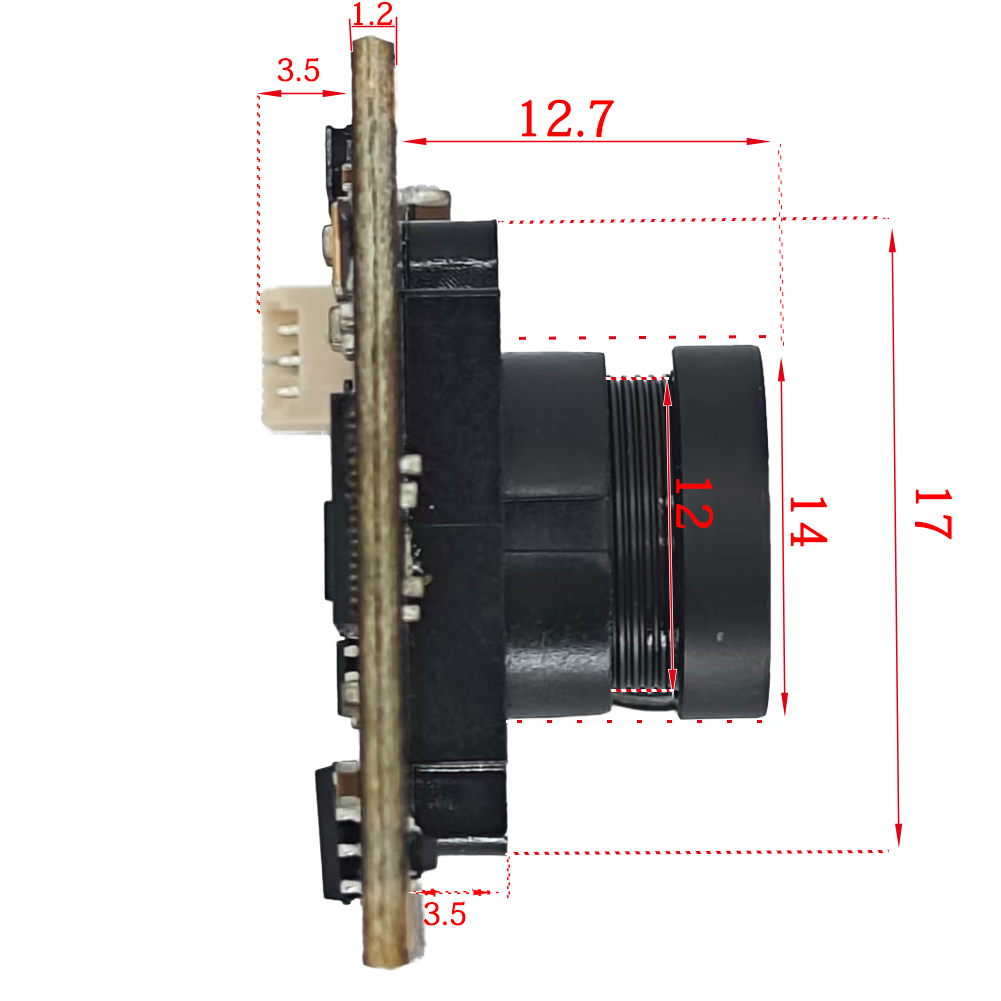

| Dimension | 32（L）×32（W）×17.8(H）(Leng height=12.1mm) |
150° WDR intercom camera AHD/CVBS camera module Smart home night vision Wide angle doorbell camera OEM security camera board 0 lux night vision H.264 compression 2MP camera module autofocus camera module
