Products
Details
|
Optical size Sensor
|
1/2.8 inch COMS sensor
|
|
Sensor Resolution
|
1920(H) x 1080 (V),1080P
|
|
Unit pixel size
|
2.9um(H)*2.9um (V)
|
|
Color filter
|
RGB Bayer pattem
|
|
Shutter type
|
Electronic Rolling Shutter
|
|
Max.capture frame rate
|
30fps@VGA,720p,30fps@1080P
|
|
Max. video frame rate
|
30fps@VGA, 30fps@1080P（MJPEG/H.264）
|
|
View Angle
|
90°
|
|
F Number
|
Pinhole 4mm lens
|
|
AEC / AGC/ White Balance
|
Auto
|
|
Focus Distance
|
with fixed lens 50CM-∝
|
|
Interface
|
USB 2.0
|
|
Power
|
USB Bus Power
|
|

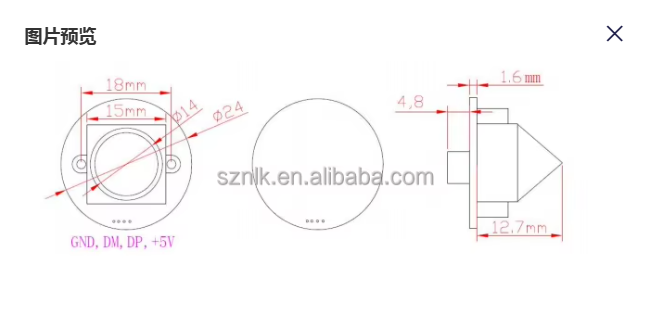

Dimensions (mm) (L x W x H)
|
Ø24mm x6.3 +/-0.2mm
|
|
Operating Temperature
|
-10℃to +50°C
|
|
Operating System Request
|
Windows XP/ Windows 7-10(UVC), Linux(>V2.6 )
|
|
Max pixel rate
|
28Mp/s
|
|
ADC accuracy
|
10-bit
|
|
USB 2.0 PHY
|
On Chip PHY
|
