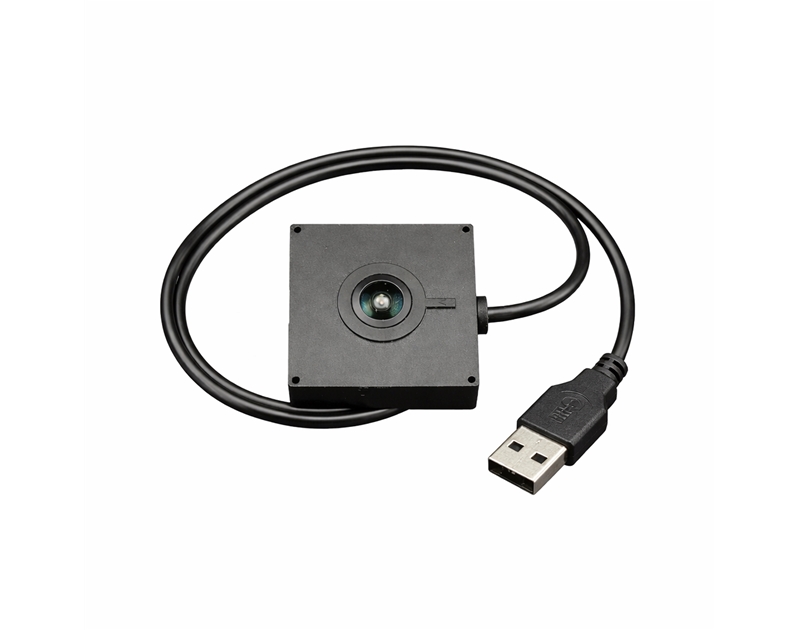

Module No. :20LH234-V1.0.2
Module size (with shell) :45.46mm ×45.46mm ×22.10mm±0.3 mm
Module size (without shell) :32mm ×32mm × 14.6mm±0.3 mm
Temperature (Operation) -20°C to 80°C
Temperature (Stable Image) 0°C to 60°C
Assembly technique SMT (ROSH)
Focus Fix
PCB printing ink black
interface USB 2.0
Power USB bus power 5V
Power Consumption RGB:80mA±5%@5V
Operating system request Windows 2000/XP/7/8/8. 1/10,Linux ，Android
Sensor Type RGB
Active Array Size 1920*1080
Sensitivity 3.24V/ Lux-sec
Maximum Image Transfer Rate 30fps (1920*1080)
Pixel Size 2.7um*2.7um
S/N Ratio 37dB
Dynamic Range 74dB
Lens Type
Lens Construction 650nm
F/No 2.5
EFL 1.5
FOV 190° ±5°
HORIZONTAL 190°±5°
VERTICAL 143°±5°
TV Distortion <-17.5%
IR Filter 650nm
DSP Type
AGC/AEC/Whiter balance Auto
Output Formats
Mjpeg/FPS YUY2/FPS
1920*1080 @30fps
1280*1024 @30fps
1280*960 @30fps
1280*720 @30fps
920*1080 @30fps
1024*768@30fps
800*600 @30fps
640*480 @30fps
320*240 @30fps
640*480 @30fps
Fixed Pattern Noise < 0.03% of VPEAK-TO-PEAK
