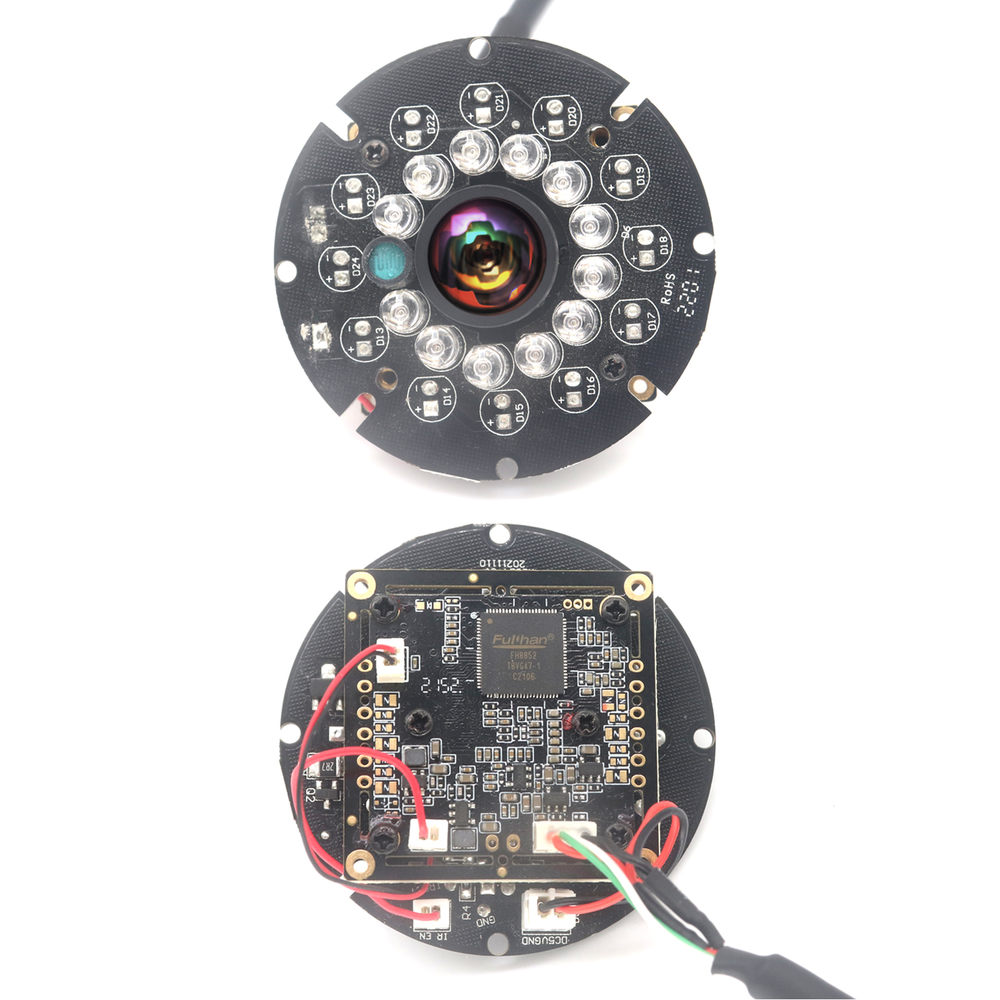

30fps 1080P IMX307 Starvis Wide Angle USB Camera Module WDR H.265 Auto IR-Cut Night Vision with IR LED for Day Night Monitor
Category：1MP/2MP USB camera module
Product specifications：
2MP Normal Sensor
Sony IMX307 USB camera module, Starvis sensor, WDR USB camera module, 1080P camera module, H.264 H.265 camera
Details
Sony IMX307 1080P Starvis WDR MIC Hardware Security Infrared H.264 USB webcam camera module
Camera Module
Features

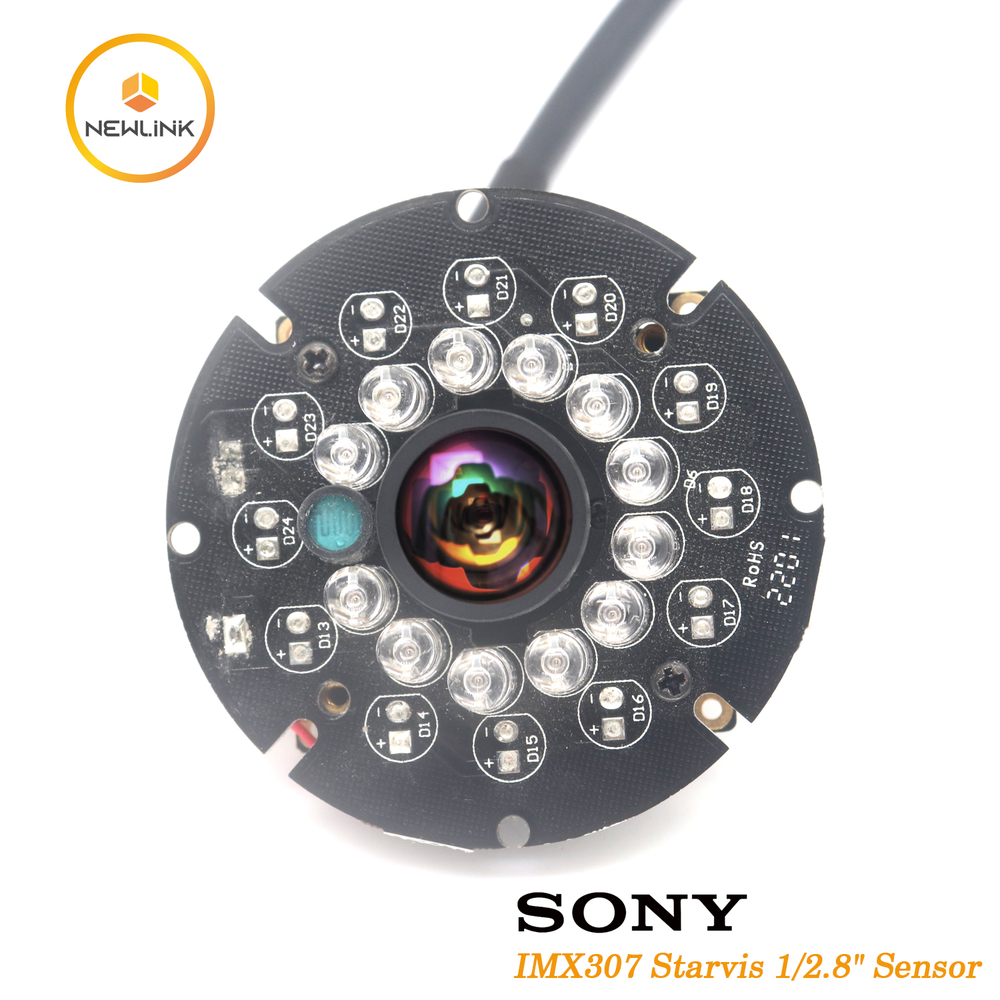

· SONY IMX307 STARVIS Sensor, 1/2.8 inch 2 Mega
· Built-in ISP processing
· USB2.0 Interface,USB Video Class(UVC)
· Data fromat : YUY2 / MJPG / H.264
· Standard lens mount
· IR-CUT circuit

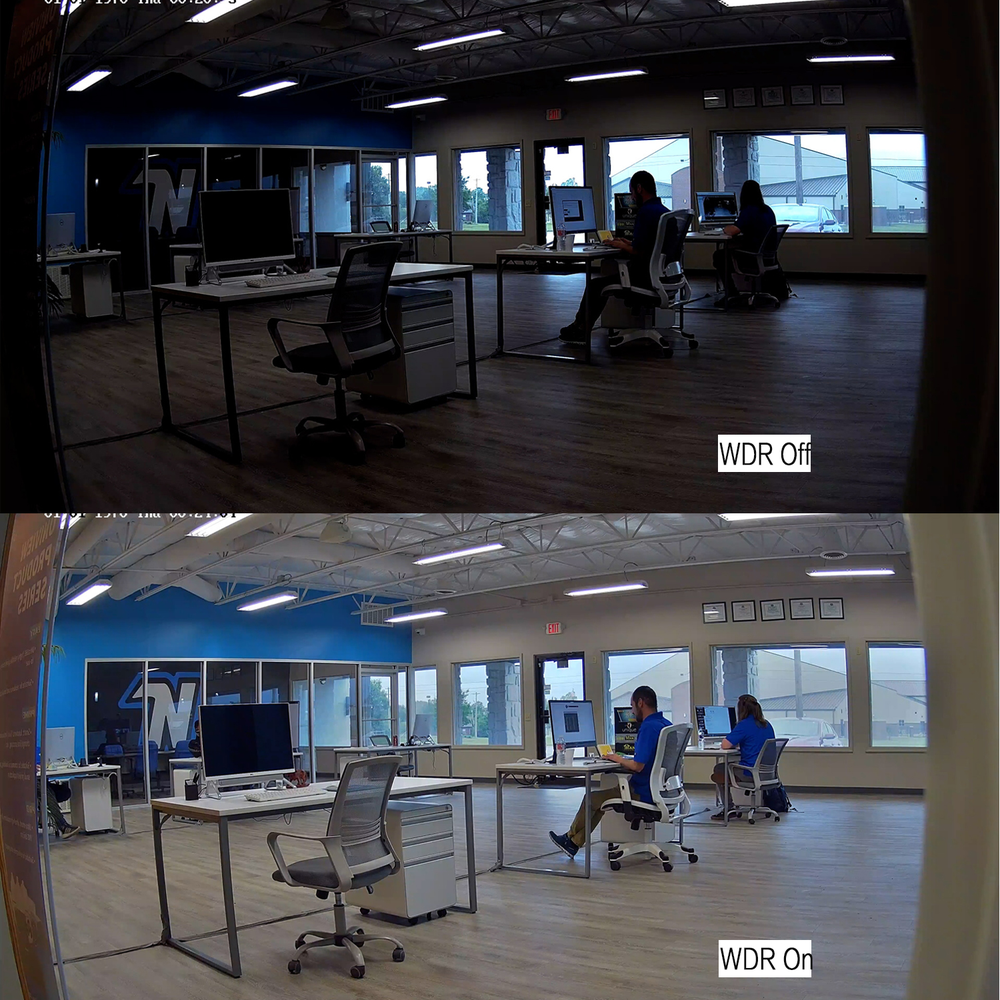

· BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog
· Brightness, Contrast, Sharpness, Saturation adjustable

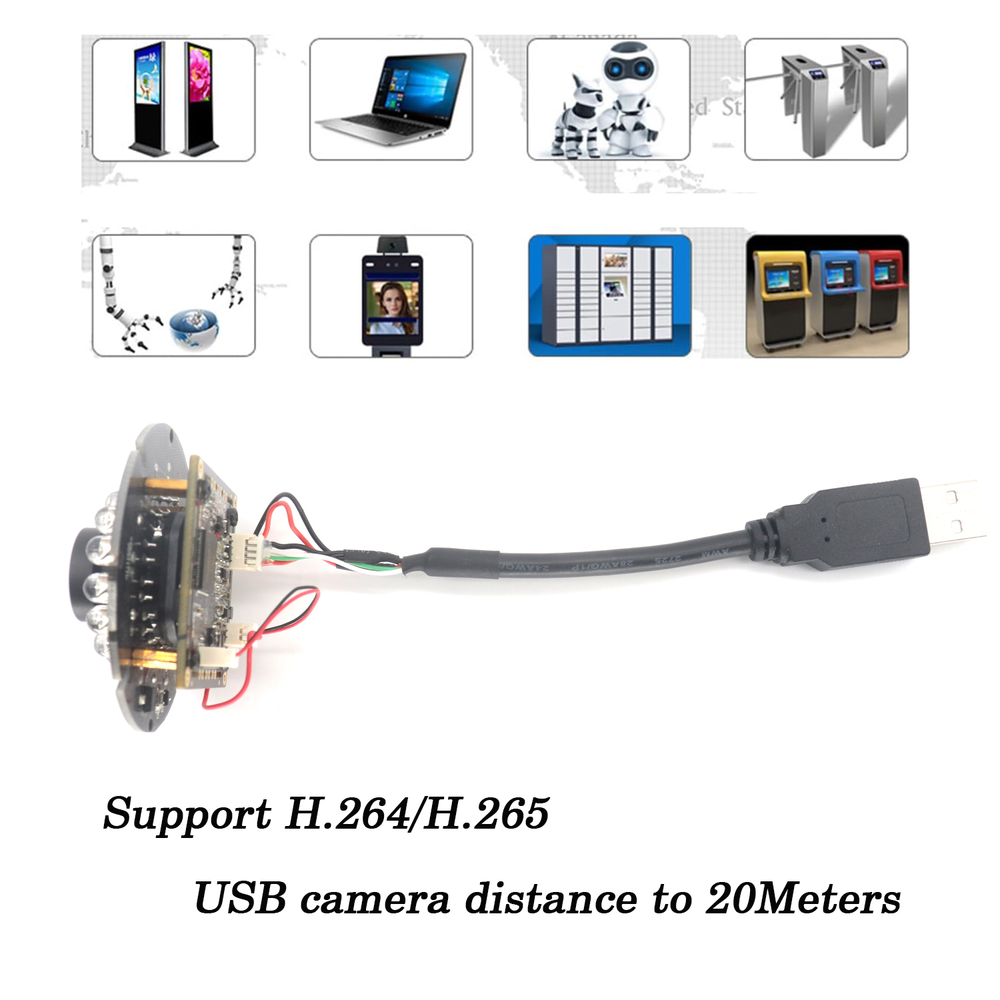

Applications
l Industrial Computer l
l Machine Vision, AI l
l Smart Home l
l ADAS
Why Use H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems,
Online video storage and streaming, video game consoles, mobile video through 3G/4G…
Electric Parameters
|
Technical Details |
|
|
SENSOR |
|
|
Sensor |
SONY IMX307LQD-C STARVIS |
|
Pixels |
2.07M pixels |
|
Resolution |
1920*1080 MAX |
|
Image Size |
Diagonal 6.46 mm (Type 1/2.8) |
|
Unit Cell Size |
2.9um (H)*2.9um(V) |
|
|
0.24lx |
|
ISP |
|
|
YUY2 Frame Rate |
640*360@25fps / 30fps |
|
MJPG Frame Rate |
1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps |
|
H.264 Frame Rate |
1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps |
|
Exposure |
Auto or Manual |
|
White Balance |
Auto or Manual |
|
Shutter |
1/25(1/30)s to 1/50,000s |
|
Slow Shutter |
Coming Soon |
|
Denoising |
2D/3D noise reduction |
|
Image Setting |
Brightness, Contrast, Sharpness, Saturation,Flip, Mirror |
|
Image Enhancement |
BLC, Digtal WDR, Defog |
|
Day/Night Switch |
Manual or IR-CUT filter with external trigger |
|
Lens & IR-CUT |
|
|
Lens Mount with IR-cut |
Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16 |
|
Mounting Hole |
2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing |
|
Interface |
|
|
Connector |
MX1.25*4,USB2.0 Interface |
|
Communication Interface |
USB2.0,UVC Protocol |
|
IR-CUT Control |
IR-CUT motor control, 3.3VDC |
|
Day/Night External Trigger |
3.3VDC to 5VDC compatibility |
|
General |
|
|
Operating Conditions |
-10℃~60℃, Humidity 95% or less, non-condensing |
|
Power Supply and Consumption |
5VDC,1.5W MAX |
|
Dimension |
38mm*38mm*10mm(not include lens and lens mount) |
Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T and Western Union etc.
Q4: Can you list the product of your company?
A4: CCTV camera board,USB Web camera board,LCD memory controller board,LCD display module,Intercom Audio Board,Video Camera board for optical fiber tester
Q5: Where can we download the user manual of your products?
A5: Datesheet will be sent to you by email after get your email.
Q6: Warranty time?
A6: 2 years.

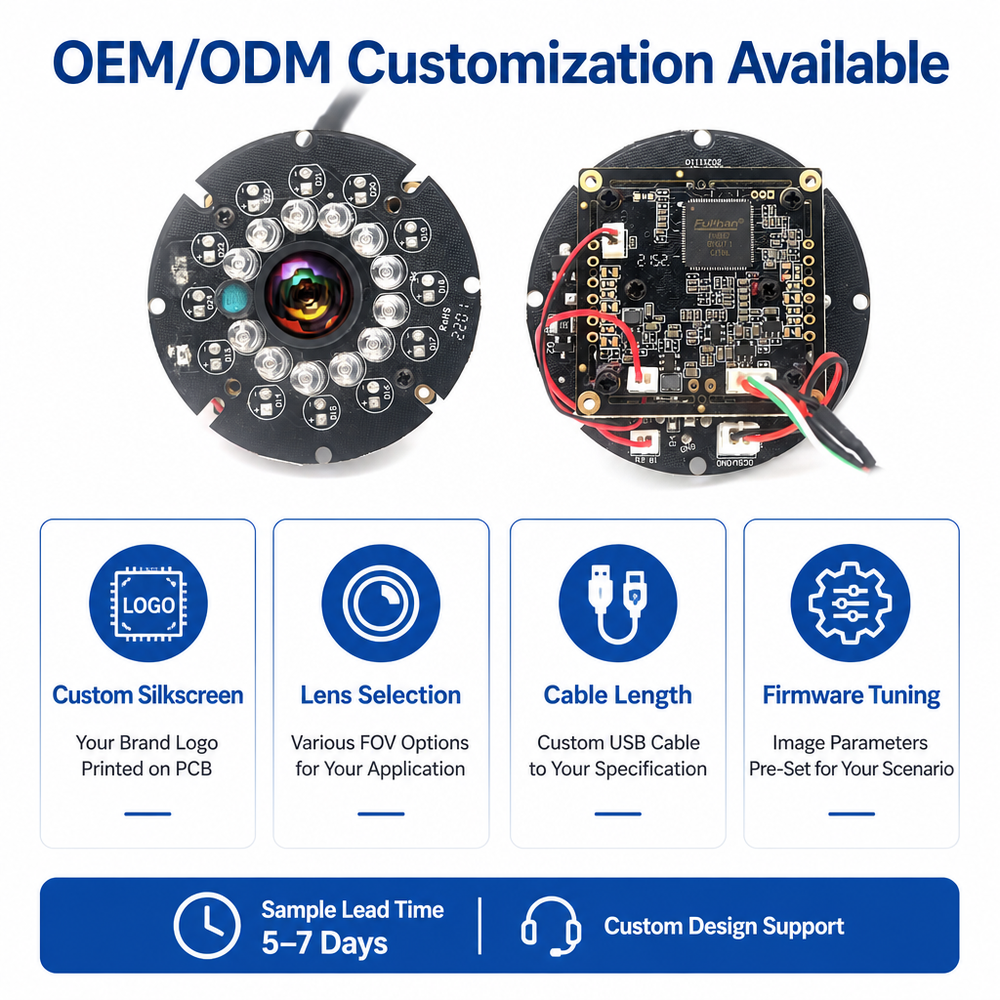

Q7: Can you accept ODM products?
