Wide View Angle Dual Lens USB Camera Module Stereo Webcam 720P OTG UVC 3D VR camera
dual lens USB camera
DUAL lens CAMERA SPECIFICATION
| Model No. | NLK-DUAL | ||||||
| 1/4 Image Sensor | NOVATEK NT99141 CMOS | SILICON H62 | |||||
| Item | Color lens | Black lens | |||||
| Effective Pixel Array | 640*480/1280*720 | 640*480/1280*720 | |||||

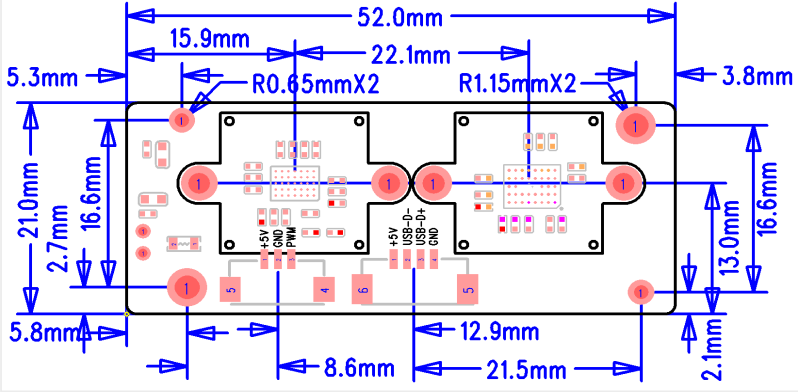

| Size | 52*21mm | ||||||
| Scanning frate | 30FPS | 30FPS | |||||
| YUV/MJPG | |||||||
| LED wavelength | External 650nm White LED lighting | 940NM microcromal | |||||
| Lens &Viewing angle | 80° | 80° | |||||
| Electronic shutter speed | Electronic Rolling Shutter | Electronic Rolling Shutter | |||||
| S/N ratio | 60DB | 60DB | |||||
| Gamma correction | >0.45 | >0.46 | |||||
| Signal output | BT656 | USB | |||||
| Operating System Request | Windows XP/ Windows 7/ 8/10(UVC), Linux(>V2.6 ) | ||||||
| Power supply | 5VUSB | ||||||
| Current Consumption | 200MA | ||||||
| Operation temperature | -10℃ - +60℃ | ||||||
| Operation Humidity | Within 95% RH | ||||||
| Weight-Net (g) | Appx.11g | ||||||
Dual Lens Usb Camera,Stereo Webcam,3d Vr Camera
